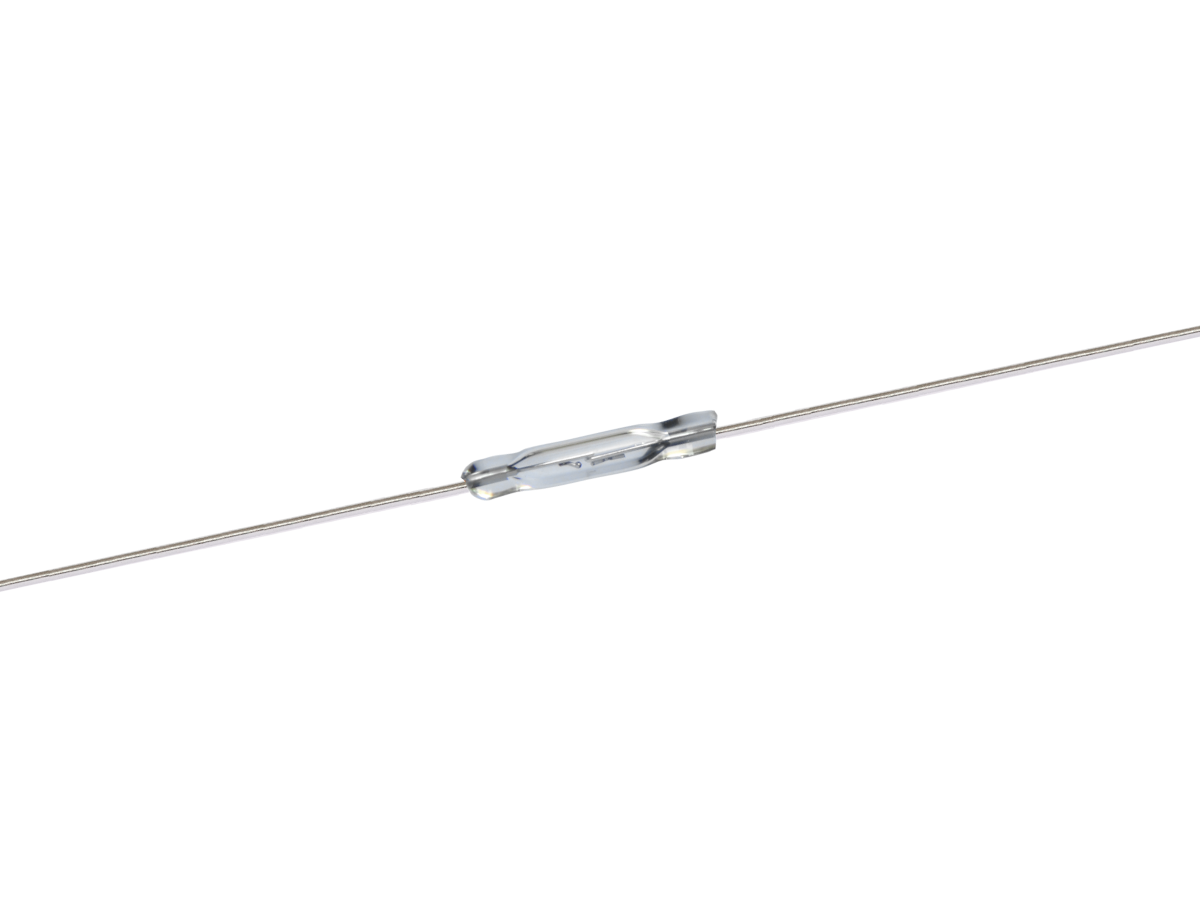

KSK or SW GP501 Series Reed Switch
The GP501 Series is a compact, high-performance reed switch engineered for precision and durability in demanding applications. With its robust glass encapsulation and reliable single-pole, single-throw (SPST) normally open contact configuration, the GP501 delivers consistent switching performance across a wide range of environments.
Its small form factor makes it ideal for use in space-constrained designs, while its dependable magnetic sensitivity ensures accurate actuation. Whether used in automotive systems, industrial controls, or consumer electronics, the GP501 Series offers a versatile and efficient solution for non-contact switching needs.
Standards and Certifications
- Compact footprint ideal for miniaturized or embedded systems
- Hermetically sealed design protects internal components from moisture, dust, and contaminants
- Zero power consumption during operation, enhancing energy efficiency
- Long mechanical life with millions of reliable switching cycles
- Fast response time for precise and repeatable actuation
- Magnetically operated for non-contact switching, reducing wear and tear
| Overall Length mm (inches) | 54.0 (2.125) |
| Glass Length Max. mm (inches) | 12.7 (0.500) |
| Glass Dia. Max. mm (inches) | 2.30 (0.090) |
| Lead Dia. mm (inches) | 0.45 (0.017) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 10-35 AT |
| Rated Power Max. | 10W/200VDC/0.5 Amp DC/AC |
- Proximity sensing in consumer electronics
- Position detection in automotive systems
- Fluid level monitoring in appliances and industrial tanks
- Door and window sensors in security systems
- Limit switches in robotics and automation
- Medical devices requiring non-contact actuation
