KSK-1C90F Series Reed Switch

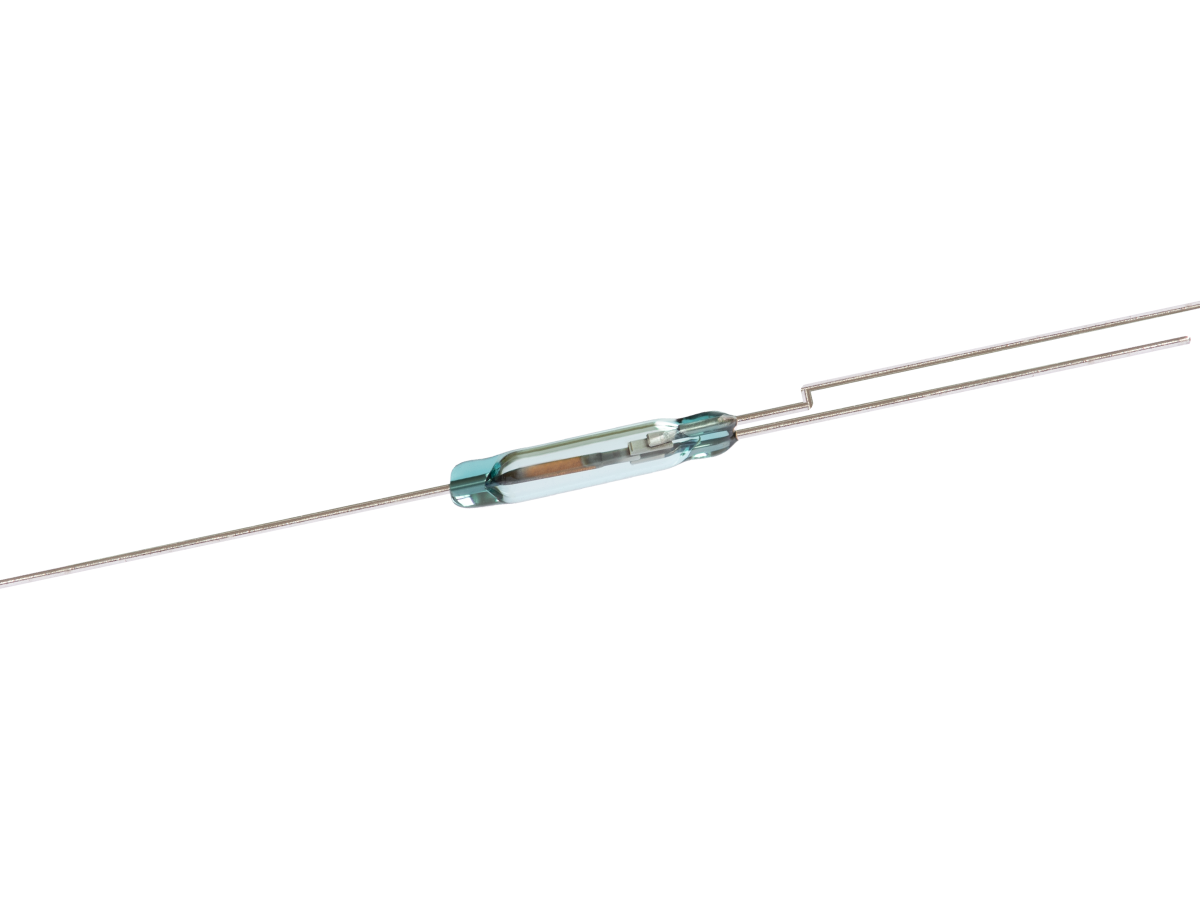

The KSK-1C90F Series is a miniature, SPDT (Form C) changeover reed switch designed for precision switching in compact and demanding environments. With a glass body length of 14.0 mm and diameter of 2.54 mm, this switch supports switching voltages up to 175 VDC, currents up to 0.5 A, and a rated power of 10 W.
Its unique dog-leg bend on the normally closed (N.C.) lead enhances mechanical stability and simplifies mounting. The KSK-1C90F is UL-approved and available in multiple operate ranges (10–52 AT), making it suitable for a wide variety of industrial, test, and general-purpose applications.
Standards and Certifications
- SPDT changeover functionality for flexible circuit design
- Miniature form factor ideal for space-constrained applications
- Dog-leg lead design improves mounting stability and alignment
- Hermetically sealed glass body protects against moisture and contaminants
- Fast switching response with typical operate time of 0.7 ms
- UL-approved for compliance in regulated environments

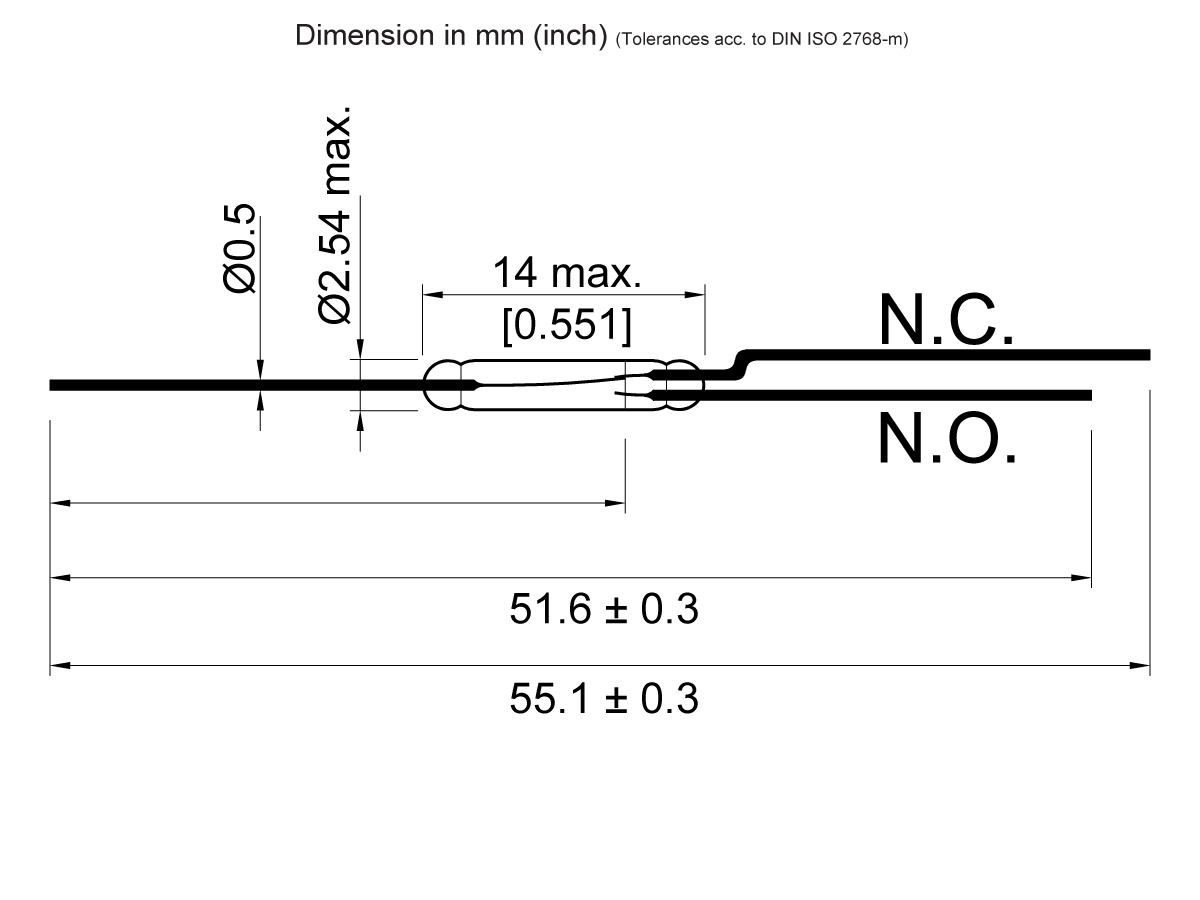

| Overall Length mm (inches) | 54.5 (2.145) |
| Glass Length Max. mm (inches) | 14.0 (0.551) |
| Glass Dia. Max. mm (inches) | 2.54 (0.100) |
| Lead Dia. mm (inches) | 0.5 (0.019) |
| Contact Form | 1C (SPDT) Changeover |
| Pull-In Range | 15-40 AT |
| Rated Power Max. | 10W/175VDC/0.5 Amp DC |
- Test and measurement equipment (ATE)
- Industrial automation and control systems
- Security and alarm systems
- Position and proximity sensing
- Consumer electronics and appliances
- Automotive sensors and switches
