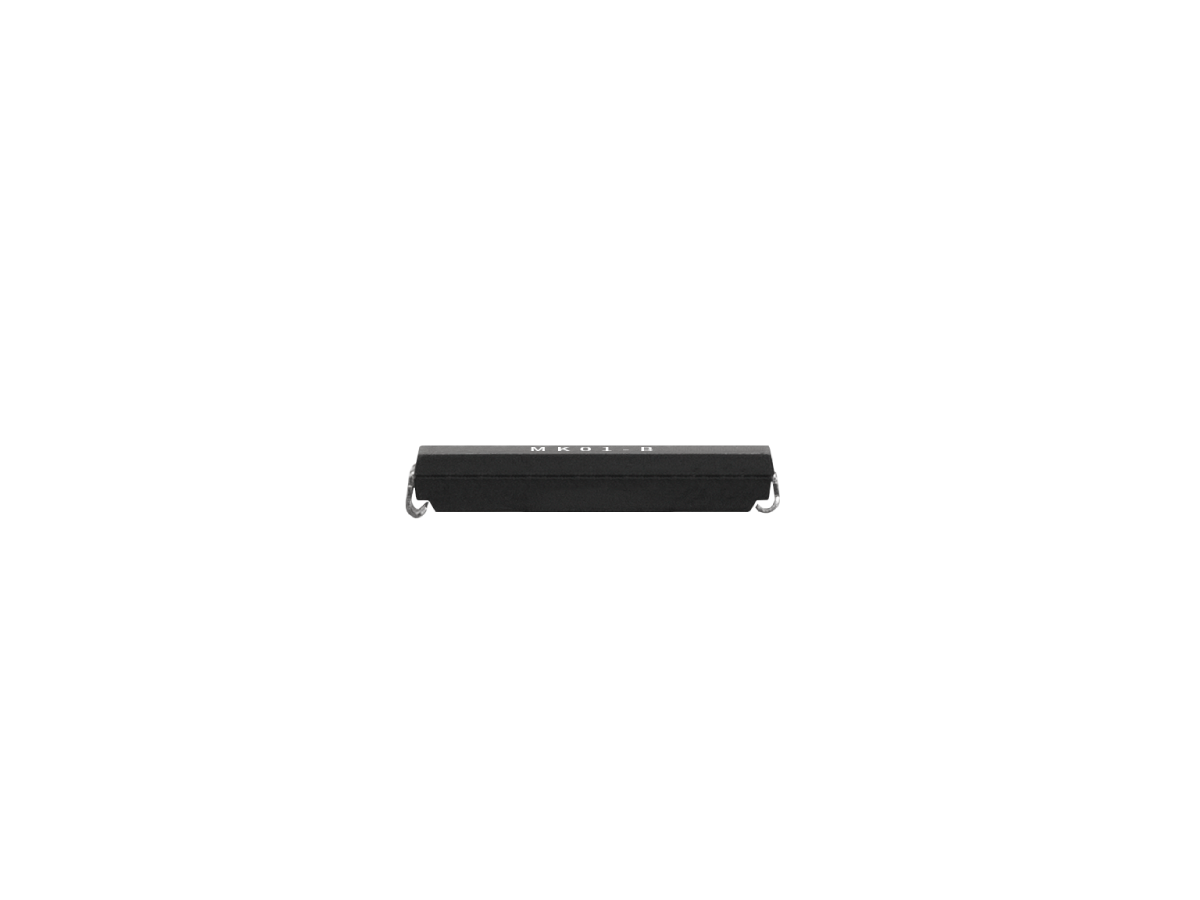

MK01 Series Surface Mount Reed Switch
The MK01 Series Reed Sensor is a surface-mount (SMD) solution designed for reliable On/Off control, proximity sensing, motion detection, and position monitoring. With SPDT changeover and high-power switching capabilities, it’s ideal for modern electronic applications requiring compact, efficient, and durable components.
Standards and Certifications
- Multiple Contact Configurations: Available in SPST Normally Open (N.O.), SPST Normally Closed (N.C.), and SPDT Changeover formats.
- Wide Operating Range: 10–60 AT for flexible magnetic sensitivity.
- High Power Handling: Rated up to 10W, 200VDC, and 0.5A for robust switching performance.
- Surface-Mount Design: Supplied in tape and reel packaging per IEC 286/Part 3 for automated assembly.
- UL Certified: Ensures compliance with safety and quality standards
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/200VDC/0.5A |
- Electric vehicles
- Industrial automation
- Security systems
- Telecommunications
- Consumer appliances
