MK06 Series Reed Switch

Request a Quote

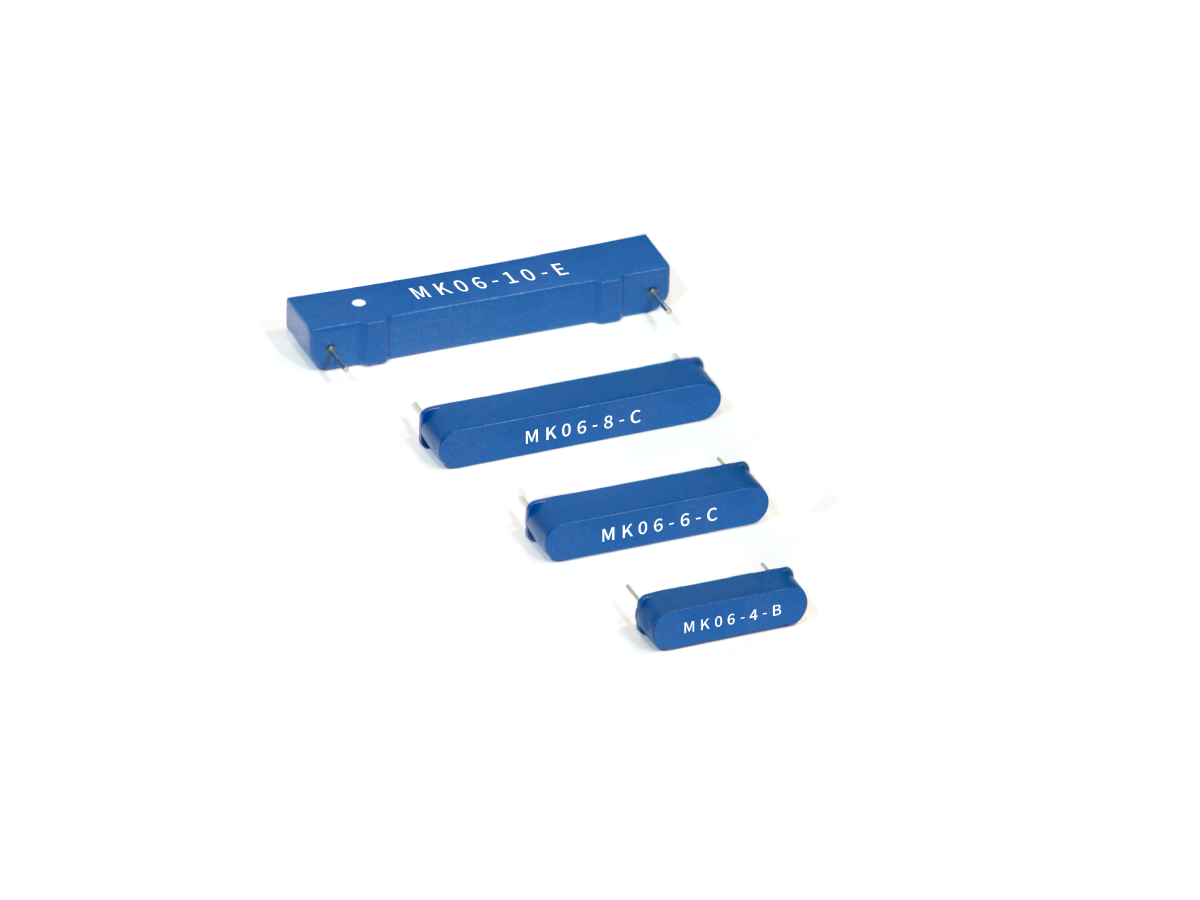

Four blue rectangular MK06 Series reed switch components of varying sizes are arranged in a diagonal row on a white background. Each component has a code printed in white text on its surface. by Standex Detect

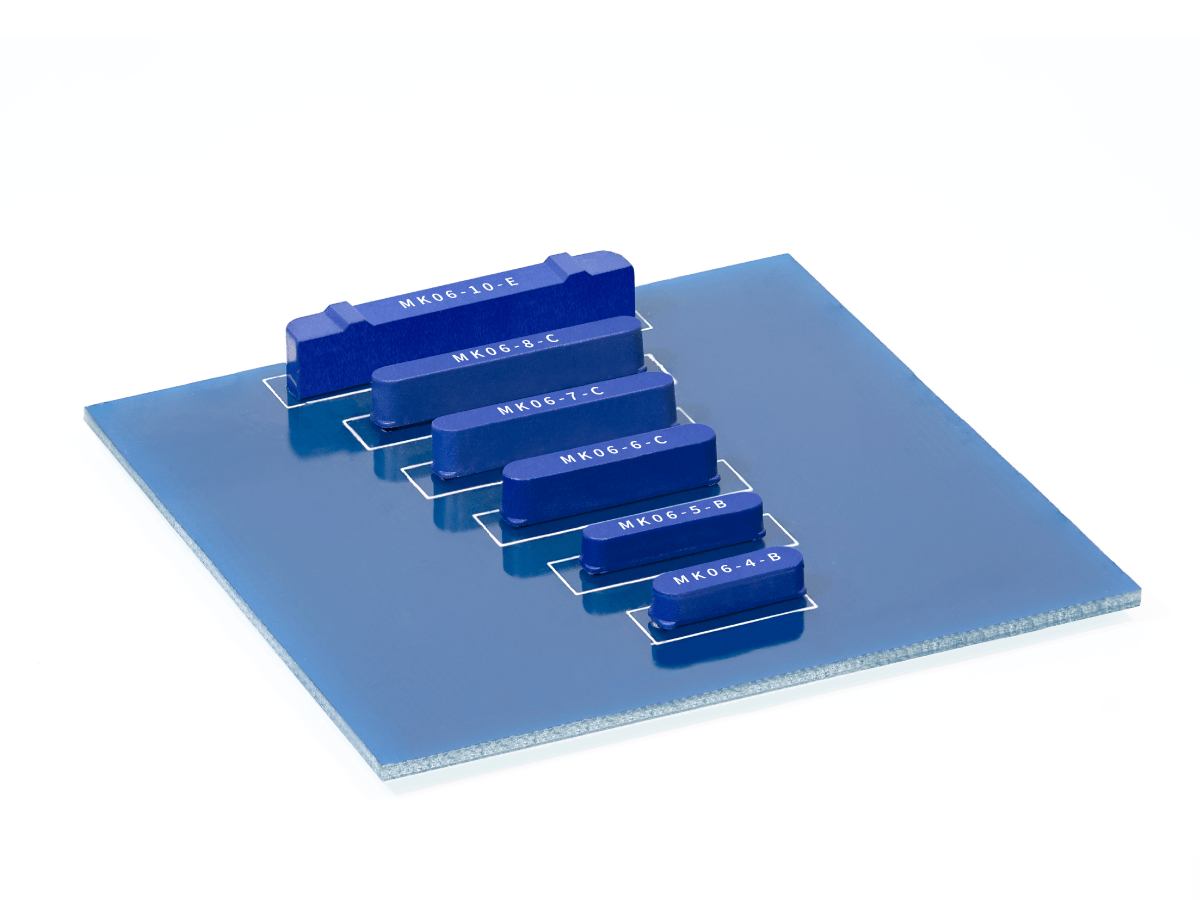

A blue square glass panel features six blue rectangular blocks, including the MK06 Series Reed Switch, each labeled with different codes and arranged in descending order of size, placed diagonally across the panel on a white background. by Standex Detect
Diagram showing six different MK6-x pin header configurations with dimensions in mm and inches, including pin lengths, widths, and spacing. All angles of pins may deviate by ±7.5°. Tolerances per DIN ISO 2768-m. Part of the MK06 Series Reed Switch. by Standex Detect

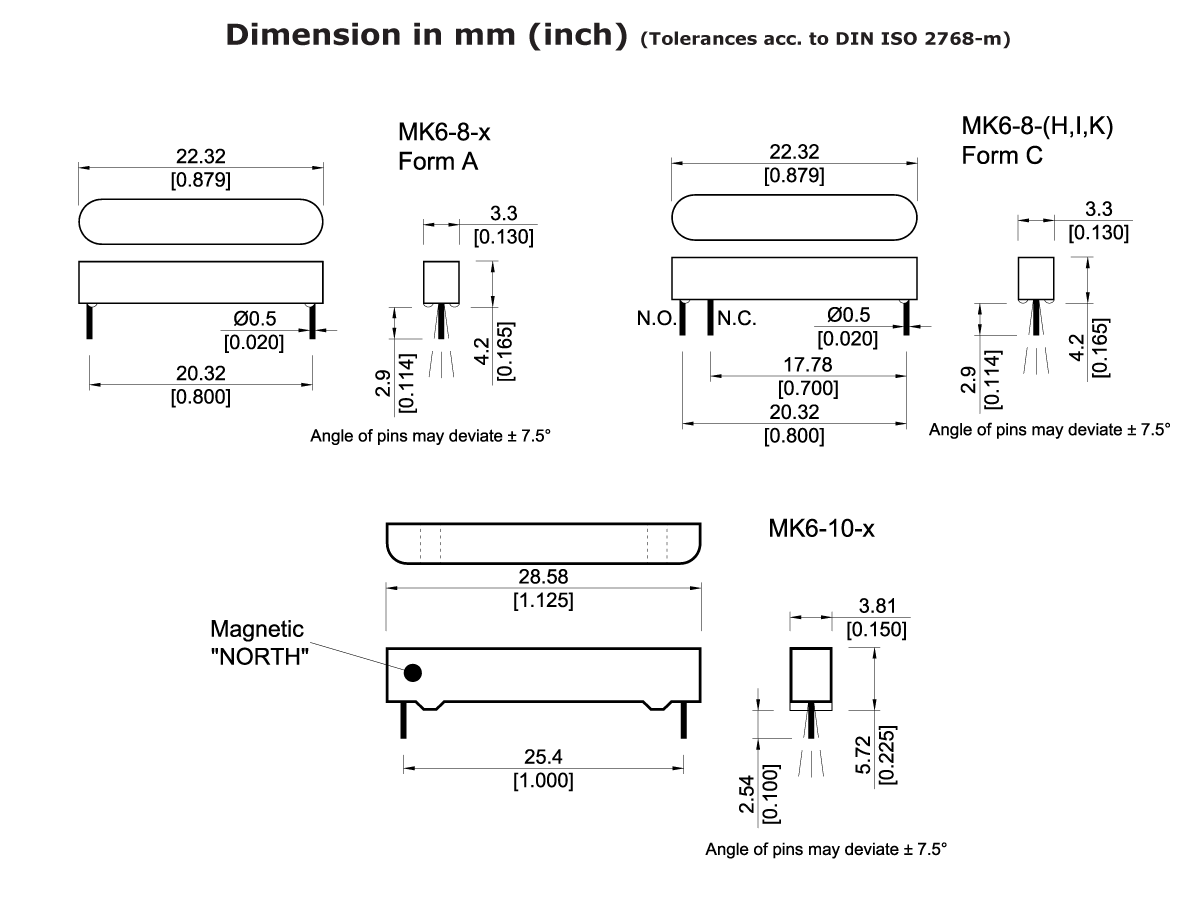

Technical diagram showing dimensions and pin layouts in mm (inch) for MK06 Series Reed Switch MK6-8-x Form A, MK6-8-(H,I,K) Form C, and MK6-10-x components, including top, side, and end views. by Standex Detect
Data Sheet Download
UL Certificate of Compliance
UL Certificate of Compliance

The MK06 Series is a compact, through-hole mount (THT) reed sensor designed for direct PCB integration in applications requiring precise magnetic sensing. With a variety of case sizes, magnetic sensitivities, and switch configurations, it’s ideal for position, motion, proximity, and on/off control in industrial, security, and appliance systems.

The MK06 Series offers compact, high-performance magnetic sensing in a PCB-friendly format, making it a trusted solution for OEMs and engineers designing in space-constrained or embedded environments.

Standards and Certifications

RoHS Compliant UL Approved UL Certificate of Compliance
  • Miniature THT design for direct PCB mounting
  • Multiple case sizes and magnetic sensitivity options
  • UL-approved configurations
  • Customizable switch type, pin spacing, and termination
  • High-voltage and latching options available
Contact Form1A (SPST) Normally Open (N.O.)
Operating Range10-60 AT
Rated Power Max.10W/170-200VDC/0.25-0.5A
  • Industrial automation
  • Security systems
  • Telecommunications equipment
  • White goods and appliances
  • Medical devices
  • Position and proximity sensing
