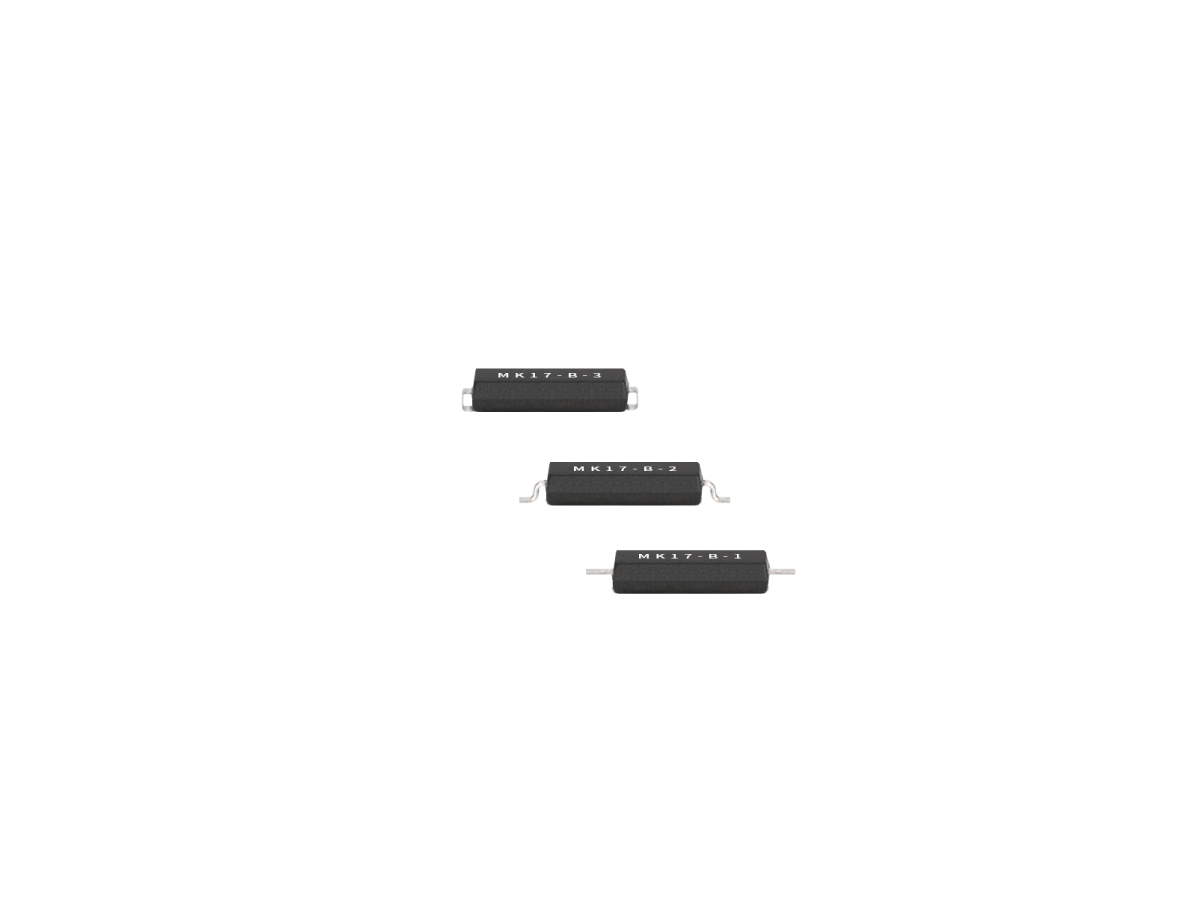

MK17 Series Surface Mount Reed Switch
The MK17 Series is an ultraminiature surface-mount (SMD) reed sensor designed for on/off control, position, motion, and proximity detection in compact electronic assemblies. Supplied in tape and reel packaging per IEC 286/Part 3, it’s ideal for high-volume automated production environments such as medical devices, telecommunications, security systems, and white goods.
The MK17 Series delivers precise magnetic sensing in an ultracompact SMD format, making it a trusted solution for OEMs and engineers designing in miniature, automated, or low-power environments.
Standards and Certifications
- Ultraminiature molded body for space-constrained designs

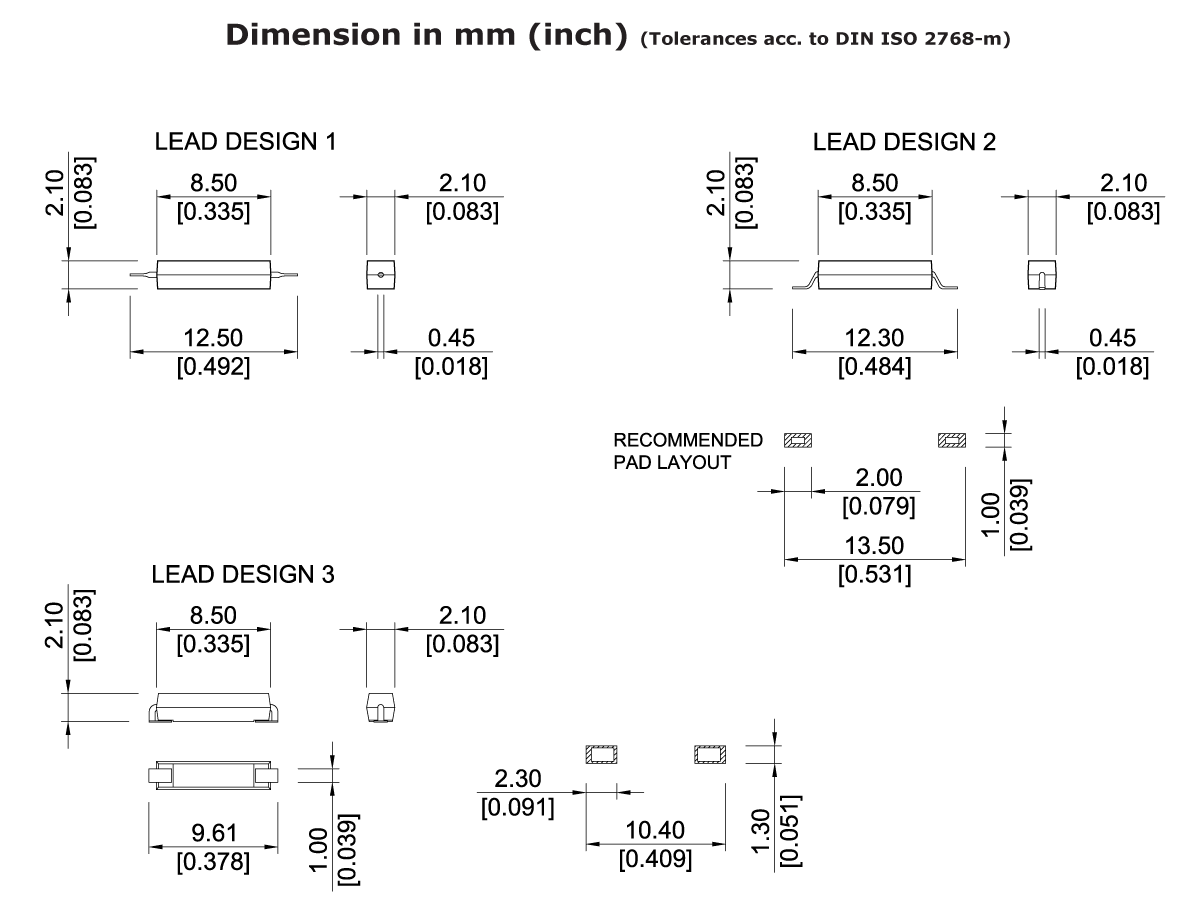

- Surface-mount (SMD) configuration with axial, gull-wing, or J-lead options
- Tape & reel packaging for automated assembly
- UL-approved configurations
- Excellent for low-power switching applications
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-40 AT |
| Rated Power Max. | 10W/170VDC/0.25A |
- Portable medical devices
- Telecommunications equipment
- Security systems
- White goods and appliances
- Compact industrial electronics
- Position and proximity sensing
