MK22 Series Surface Mount Reed Switch

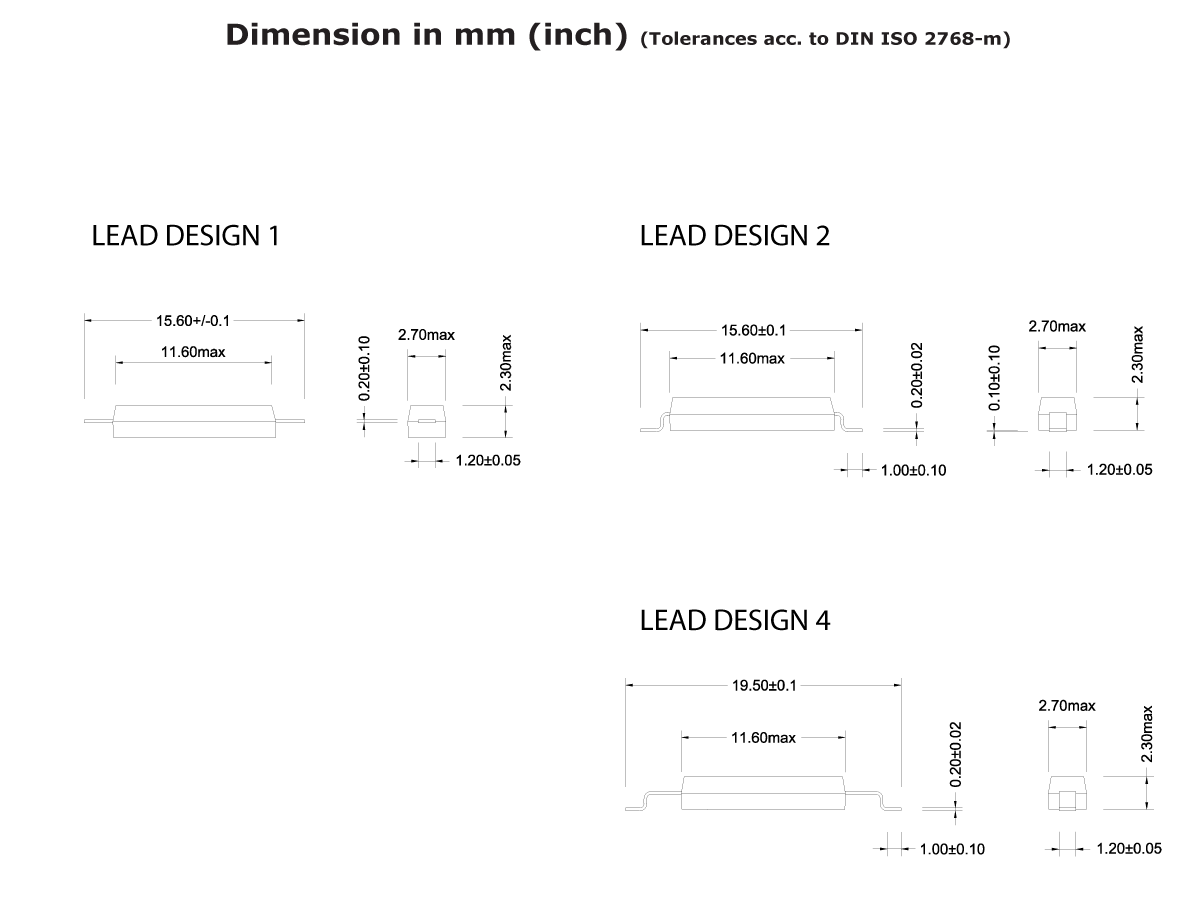

The MK22 Series is a miniature surface-mount (SMD) reed sensor designed for on/off control, position, motion, and proximity detection in compact electronic assemblies. Available in axial, gull-wing, and long gull-wing lead styles, it supports automated production with tape & reel packaging per IEC 286/Part 3. Ideal for medical, telecom, security, and white goods applications.
The MK22 Series delivers fast, reliable magnetic sensing in a miniature SMD format, making it a trusted solution for OEMs and engineers designing in automated, space-limited, or low-power environments.
Standards and Certifications
- Miniature molded body for space-constrained designs
- Surface-mount configuration with multiple lead styles
- Tape & reel packaging for automated assembly
- UL-approved configurations
- Excellent for low-power and high-speed switching applications
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-30 AT |
| Rated Power Max. | 20W/200VDC/1A |
- Portable medical devices
- Telecommunications equipment
- Security systems
- White goods and appliances
- Compact industrial electronics
- Position and proximity sensing
