MK23-80 Series Surface Mount Reed Switch
The MK23-80 Series is an ultraminiature bare glass surface-mount (SMD) reed sensor designed for compact, high-reliability switching in automated electronic assemblies. With a 7.0mm glass length and 1.8mm diameter, it offers a cost-effective and space-saving alternative to over-molded sensors. Ideal for on/off control, position, motion, and proximity detection in high-volume production environments.
The MK23-80 Series delivers reliable magnetic sensing in an ultracompact, high-voltage-ready format, making it a trusted solution for OEMs and engineers designing in space-constrained or automated environments.
Standards and Certifications
- Bare glass SMD design for compact integration
- Rated for high-voltage switching up to 170VDC
- Tape & reel packaging per IEC 286/Part 3 for automated pick-and-place
- Multiple lead styles: axial, short gull-wing, long gull-wing
- **Economic alternative to over-molded sensors
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-40 AT |
| Rated Power Max. | 10W/170VDC/0.5 Amp DC |

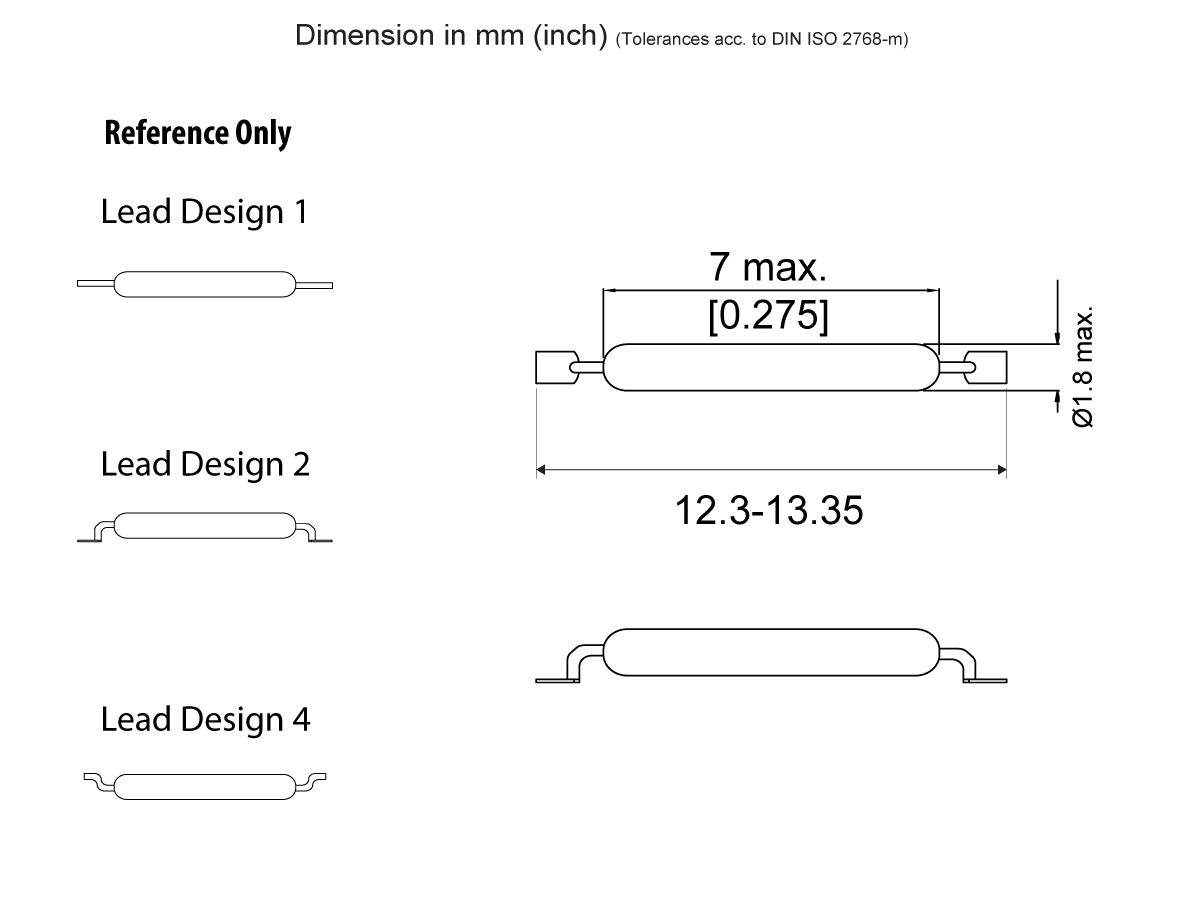

| Lead Design | 1, 2, 4 |
- General-purpose electronics
- Automotive systems
- Military and aerospace equipment
- Safety and security devices
- Telecommunications
- Test and measurement (ATE)
- Household appliances
