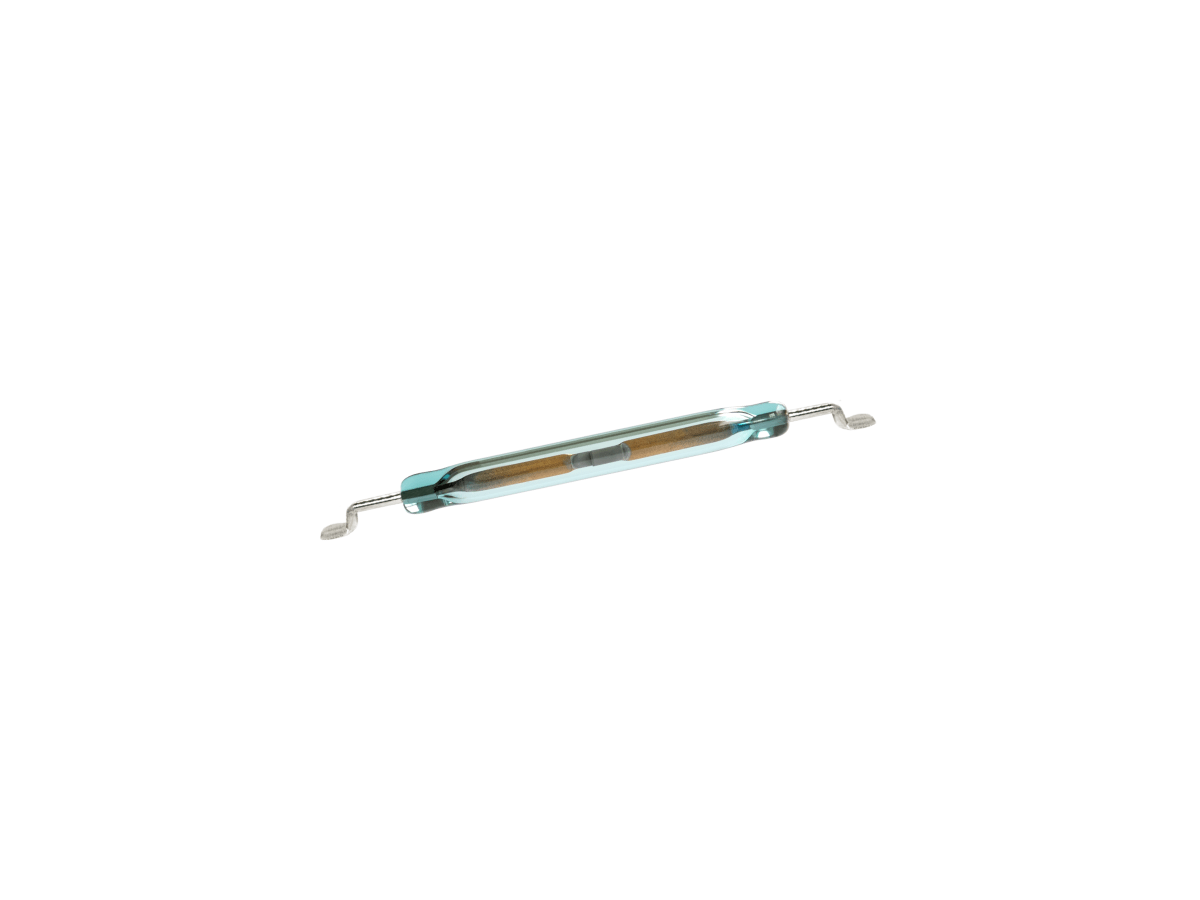

MK23-85 Series Surface Mount Reed Switch
The MK23-85 Series is a vacuum high-power surface-mount (SMD) reed sensor designed for high-voltage switching in compact electronic assemblies. With a 21mm glass body and 2.75mm diameter, it offers a cost-effective and space-saving alternative to over-molded sensors. Supplied in tape & reel packaging per IEC 286/Part 3, it’s ideal for automated pick-and-place production.
The MK23-85 Series delivers exceptional high-voltage magnetic sensing in a compact, cost-effective format, making it a trusted solution for OEMs and engineers designing in space-constrained or automated environments.
Standards and Certifications
- Bare glass SMD design for compact integration
- Rated for high-voltage switching up to 1,000 VDC
- High power handling up to 100W
- Tape & reel packaging for automated assembly
- Multiple lead styles: axial, short gull-wing, long gull-wing
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 15-55 AT |
| Rated Power Max. | 100W/1,000VDC/1 Amp DC |

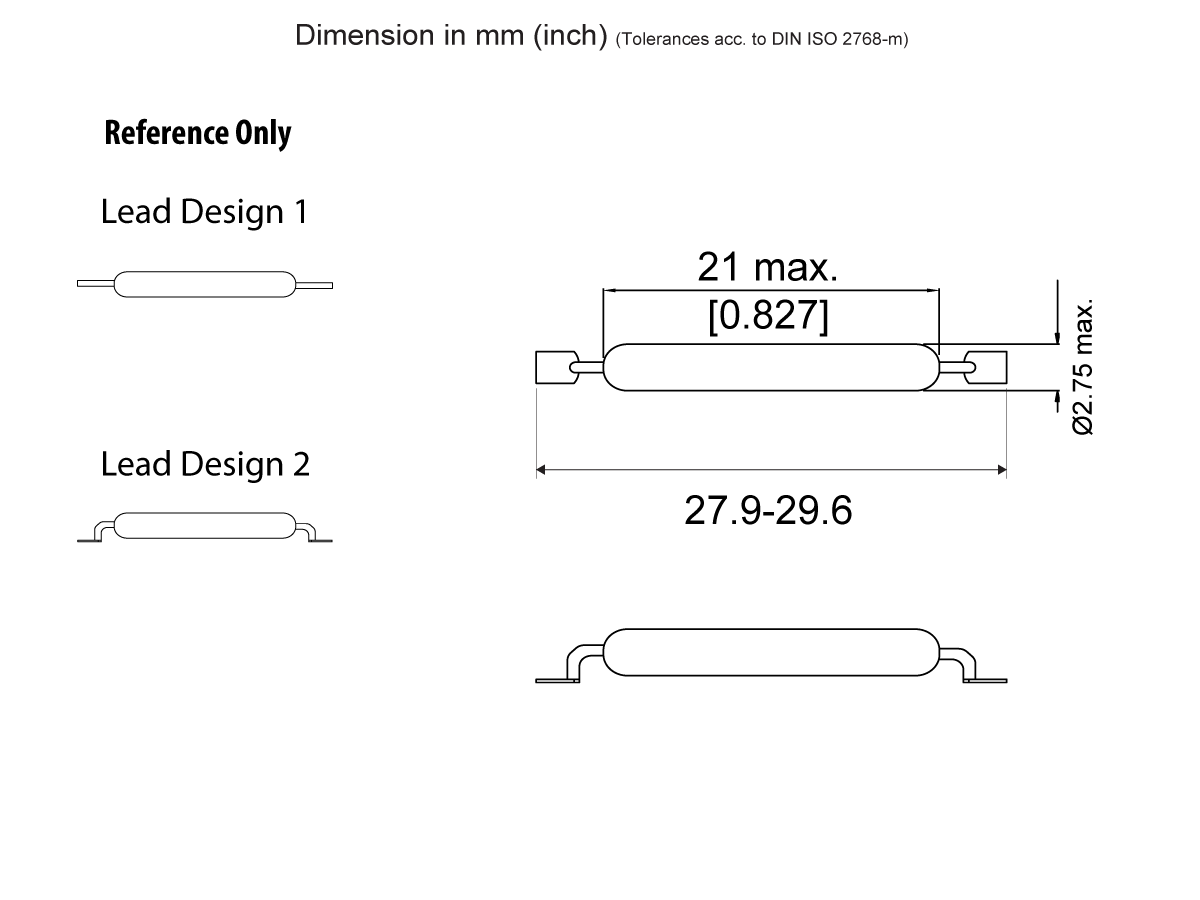

| Lead Design | 1, 2 |
- Automotive electronics
- Military and aerospace systems
- Safety and security devices
- Telecommunications
- Test and measurement (ATE)
- Household appliances
- General-purpose electronics
