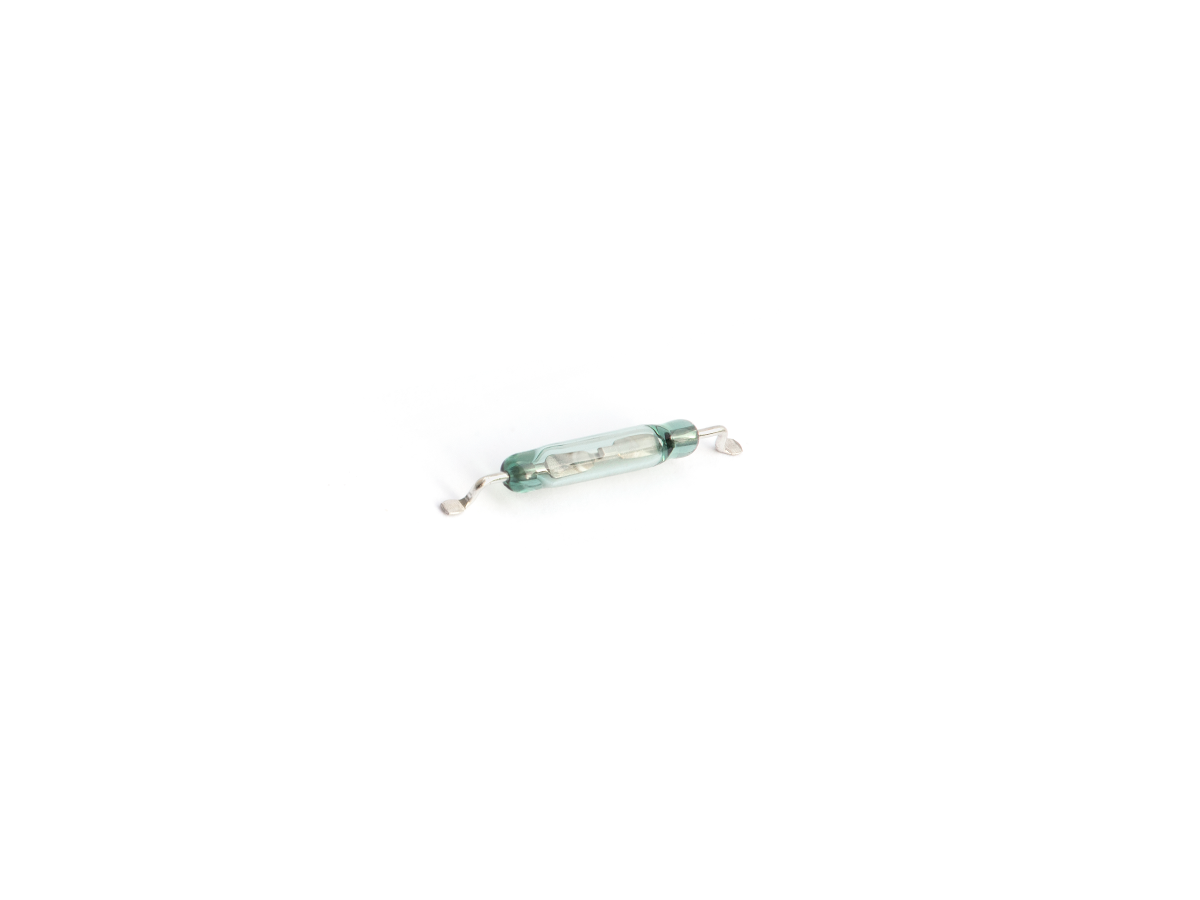

MK23-87 Series Surface Mount Reed Switch
The MK23-87 Series is a bare glass surface-mount (SMD) reed sensor designed for compact, high-speed switching in automated electronic assemblies. With a 19.6mm glass body and 2.2mm diameter, it offers a cost-effective alternative to over-molded sensors and is ideal for on/off control, position, motion, and proximity detection in space-constrained environments.
The MK23-87 Series delivers fast, reliable magnetic sensing in a compact, high-performance format, making it a trusted solution for OEMs and engineers designing in automated, space-limited, or low-power environments.
Standards and Certifications
- Bare glass SMD design for compact integration
- Rated for high-speed switching with low contact resistance
- Tape & reel packaging per IEC 286/Part 3 for automated assembly
- Multiple lead styles: axial, short gull-wing, long gull-wing
- **Economic alternative to over-molded sensors
- Automotive electronics
- Telecommunications equipment
- Security systems
- Medical devices
- Test and measurement (ATE)
- White goods and consumer appliances
