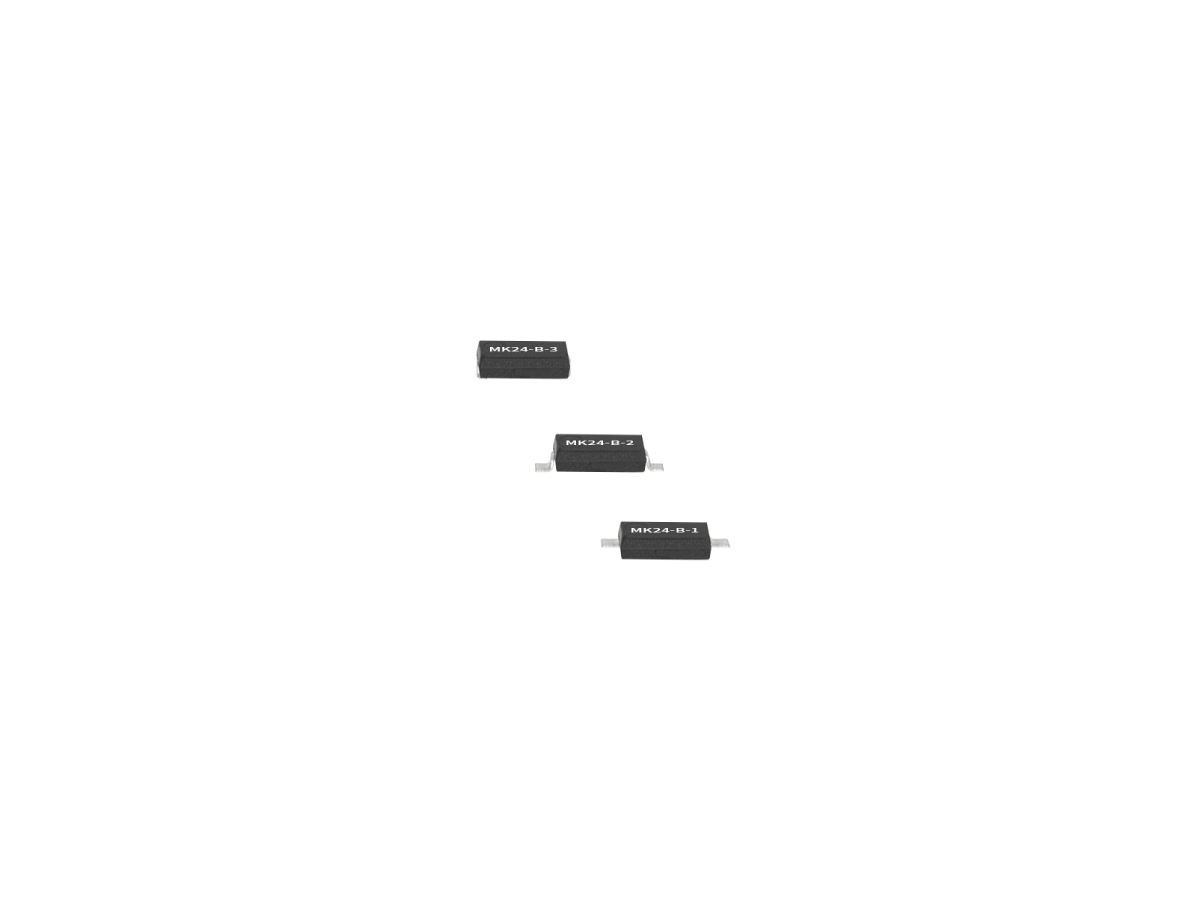

MK24 Series Surface Mount Reed Switch
The MK24 Series is an ultra-miniature, molded-body SPST reed sensor available in both Normally Open (Form A) and Normally Closed (Form B) configurations. Designed for surface mount applications, it features a compact footprint and is ideal for low-power, space-constrained designs. Supplied in Tape & Reel packaging per IEC 286/Part 3, it supports automated pick-and-place assembly.
Standards and Certifications
- Compact molded body for tight PCB layouts
- Optional Form B for fail-safe designs
- Excellent for low-power operations
- Lead Styles: Axial, Gull Wing, J-Bend
- Mounting Type: Surface Mount
- Packaging: Tape & Reel (IEC 286/Part 3)
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.) |
| Operating Range | 5-25 AT |
| Rated Power Max. | 3W/30VDC/0.3A |
- Portable medical devices
- White goods and appliances
- Telecommunications
- Security and sabotage detection
- Metering systems
