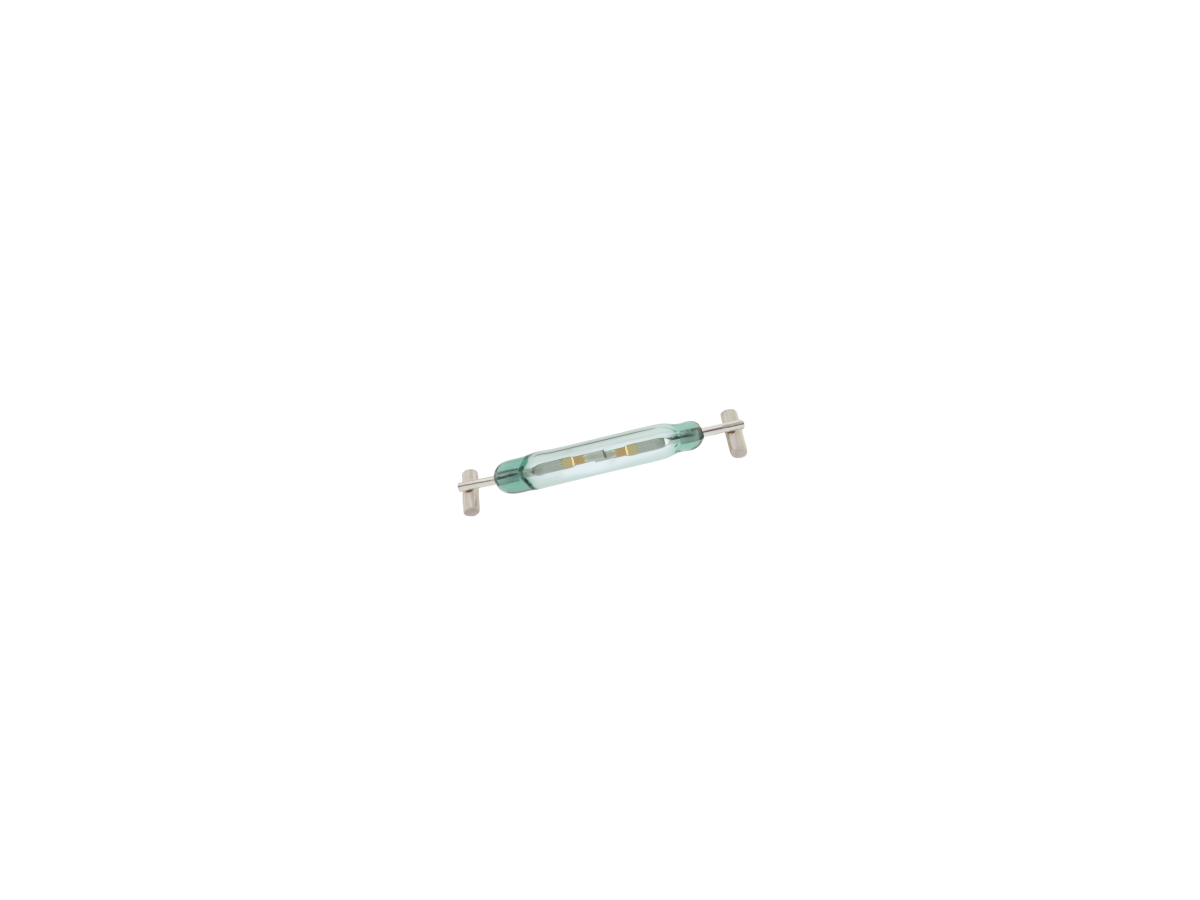

MK33-87 Series Surface Mount Reed Switch

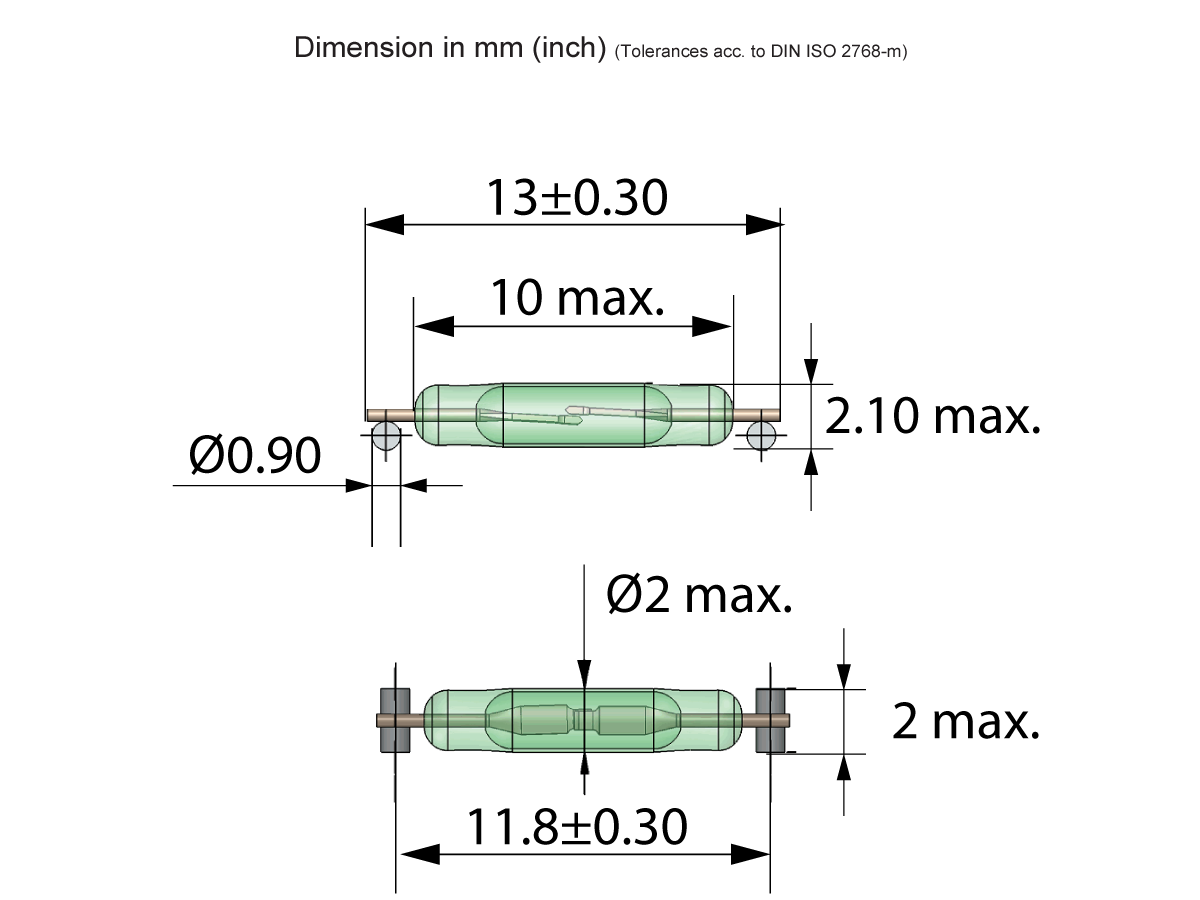

The MK33-87 Series is an ultra-miniature, low-profile SPST-NO (Form A) reed switch designed for surface mount applications. With a glass body length of 10 mm and diameter of 2.0 mm, it is ideal for compact PCB layouts and high-density sensor arrays.
Engineered with a unique barrel lead design, the MK33-87 offers enhanced coplanarity, solderability, and self-alignment for efficient pick-and-place assembly. Capable of switching up to 200 VDC, 0.4 A, and 10 W, this bare glass reed switch is optimized for tight ladder arrays and continuous liquid level monitoring. Supplied in Tape & Reel packaging per IEC 60286-3 standards.
Standards and Certifications
- Ultra-Miniature Footprint: Perfect for tight PCB layouts and sensor arrays
- Automated Assembly Ready: Self-aligning leads for efficient pick-and-place
- Reliable & Durable: Hermetically sealed for long-term performance
- Versatile Use: Suitable across multiple industries and environments
- Packaging: Tape & Reel (IEC 60286-3)
- Design: Bare glass construction with barrel leads for optimal coplanarity and solderability
| Rated Power Max. | 10W/200VDC/0.4A |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-60 AT |
- Industrial Automation: Fluid level sensors, metering systems
- Transportation: Compact sensing in automotive electronics
- Alarm & Security: Smoke detectors, fire alarms, intrusion sensors
- Smart Home Devices: Wireless door/window sensors, water level monitoring
- Medical Equipment: Miniature sensing in diagnostic and monitoring devices
- Test & Measurement (ATE): Precision switching in compact test setups
- Telecommunications: Signal routing and proximity detection
- Battery-Powered Devices: Ideal for low-power, space-constrained designs
