PR560 Series Reed Switch
The PR560 Series is a miniature SPST-NO (Form A) reed switch engineered for high-voltage AC and DC applications. With a glass body length of 14.2 mm and a diameter of 2.3 mm, it supports switching voltages up to 250 VAC / 100 VDC and currents up to 1.0 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the PR560 ensures long-term reliability and consistent performance in demanding environments. Its overall length of 54.0 mm and wide pull-in sensitivity range (20–50 AT) make it ideal for industrial, automotive, and appliance applications requiring mid-power switching.
Standards and Certifications
- SPST-NO (Form A) contact configuration for straightforward on/off switching
- Rated for 10 W, 250 VAC / 100 VDC, and 1.0 A switching current
- Compact 14.2 mm glass body with 2.3 mm diameter for space-efficient integration
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required
- Wide pull-in sensitivity range (20–50 AT) for flexible magnetic actuation
- Overall length of 54.0 mm for versatile mounting options

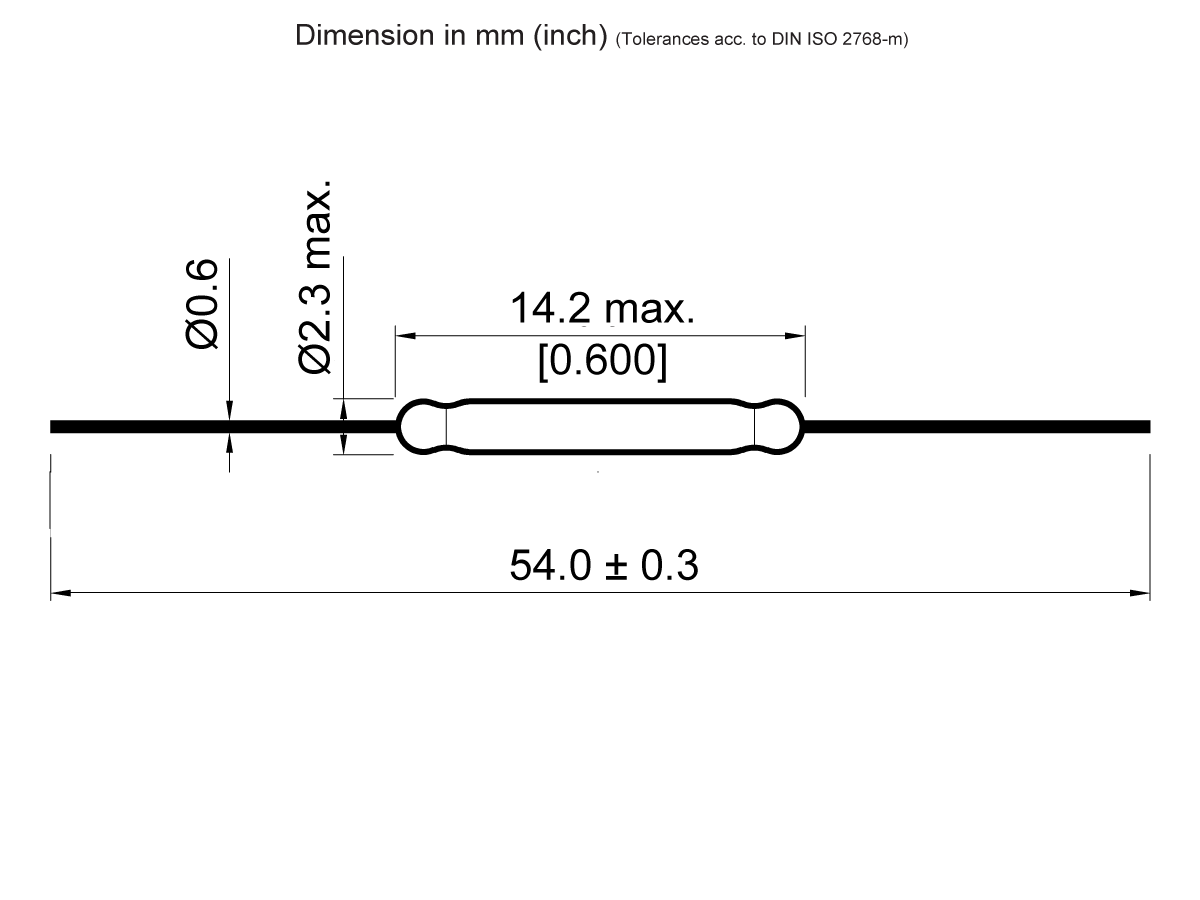

| Overall Length mm (inches) | 54.0 (2.125) |
| Glass Length Max. mm (inches) | 14.2 (0.559) |
| Glass Dia. Max. mm (inches) | 2.30 (0.090) |
| Lead Dia. mm (inches) | 0.6 (0.023) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 20-40 AT |
| Rated Power Max. | 10W/250 VAC/100VDC/1 Amp DC/AC |
- Industrial Controls: High-voltage switching, motor control, relay logic
- Home Appliances: Line voltage switching, power control
- Automotive Systems: Battery isolation, high-current sensing
- Test & Measurement Equipment: Signal routing in high-voltage environments
- Security Systems: Power switching in perimeter and access control devices
- Fluid Flow Systems: Pump control, valve actuation
