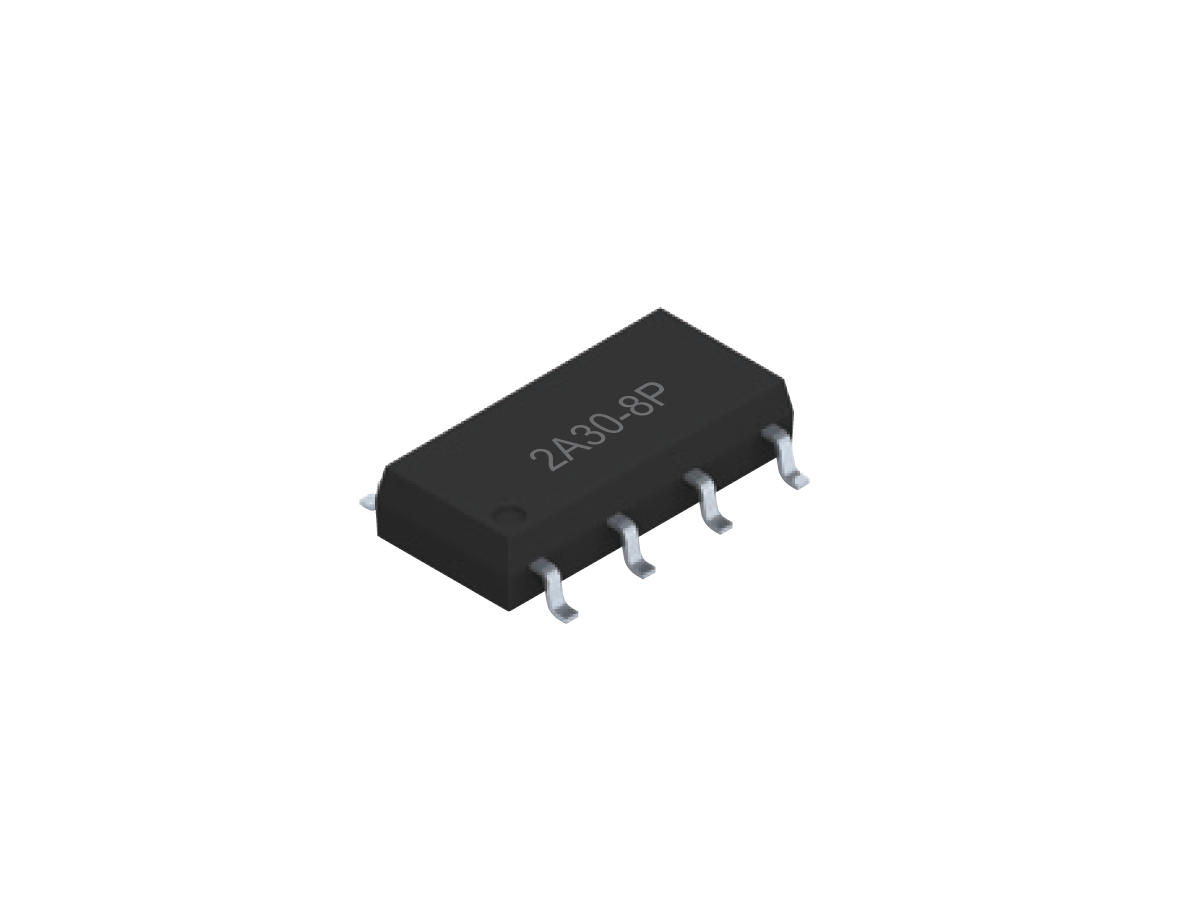

SMP-30 Photo-MOSFET Relay
The SMP-30 Series is a high-voltage, solid-state Photo-MOSFET relay designed for demanding switching applications in compact electronic systems. Available in SOP, SMD, and DIP packages, it supports switching up to 400 V AC or peak DC and load currents up to 120 mA, making it suitable for medium-power control tasks.
With a typical on-resistance of 21 Ω, low output capacitance of 52 pF, and an off-state leakage current of just 1 µA, the SMP-30 Series ensures clean signal transitions and high reliability. Its solid-state design eliminates mechanical wear and contact bounce, offering enhanced durability and resistance to shock, vibration, and environmental contaminants.
This series is ideal for switching both low-level analog signals and higher-level loads such as LEDs, relays, solenoids, and lamps. Its high input-to-output isolation and long operational life make it a dependable choice for industrial, medical, and test environments.
Standards and Certifications
- Solid-state switching with no contact bounce or mechanical wear
- High voltage switching capability (up to 400 V AC/DC)
- Low output capacitance (52 pF) for clean signal transitions
- Minimal off-state leakage (1 µA) for high signal integrity
- High input-to-output isolation for safe circuit separation
- Available in SOP, SMD, and DIP packages for flexible integration
- Shock and vibration resistant, impervious to dust and contaminants
- Stable on-resistance over time for consistent performance
- Long operational life with high reliability in solid-state form
| Contact Form | 1A, 2A |

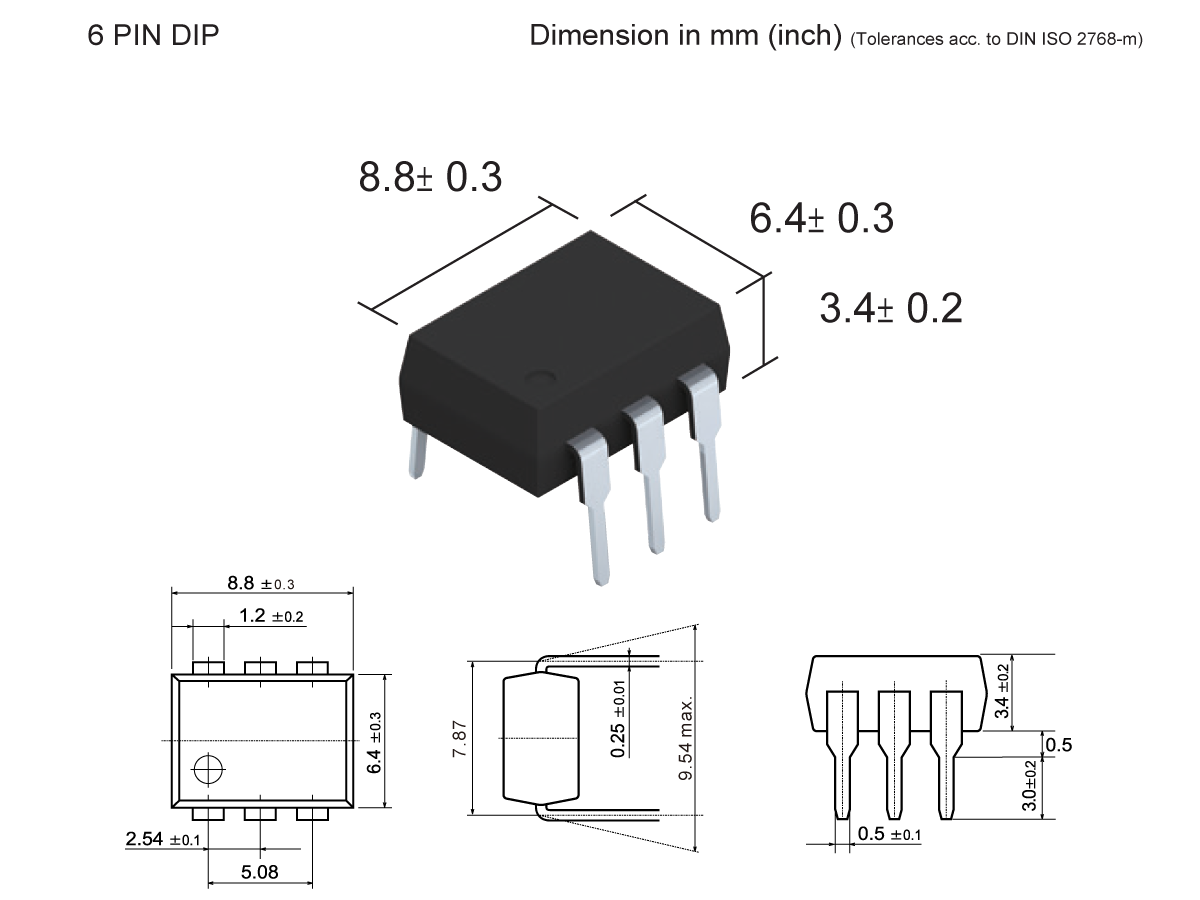

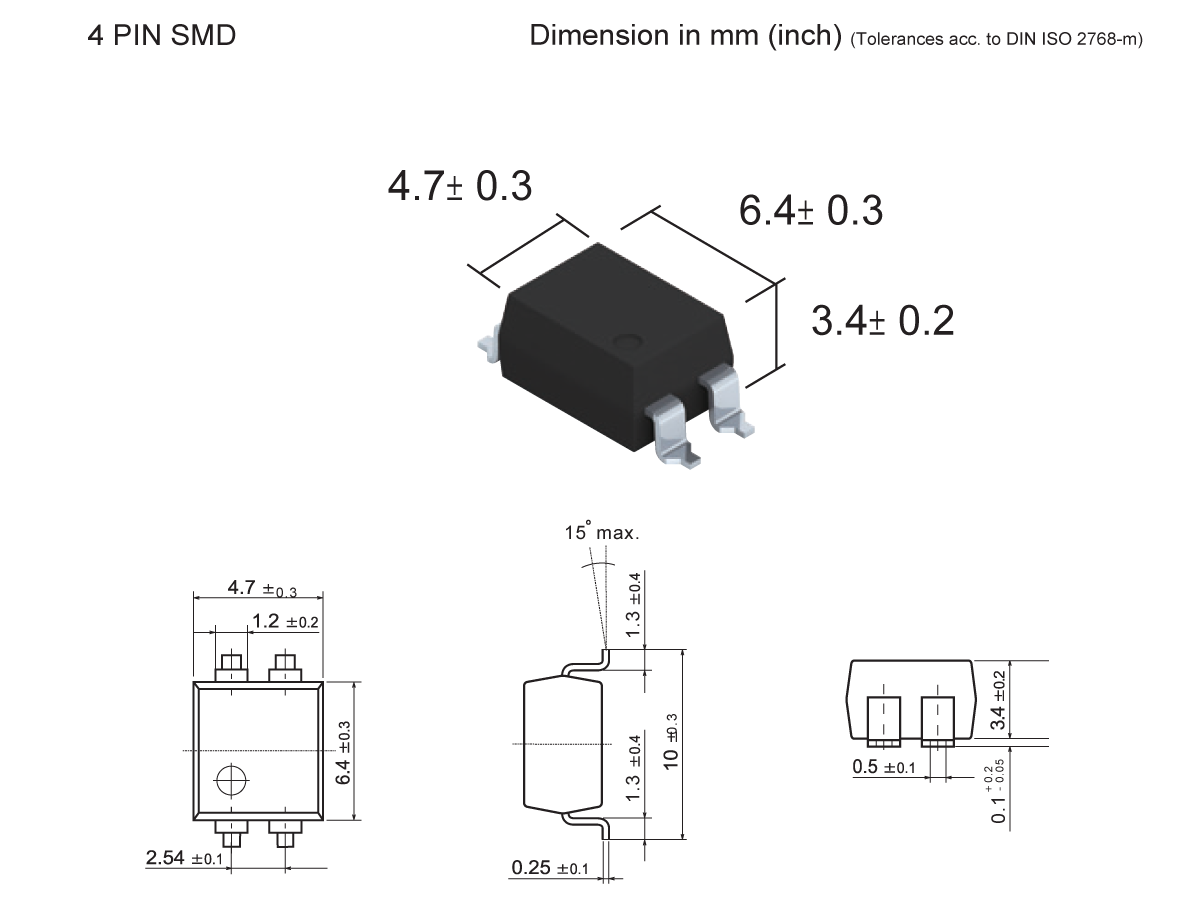

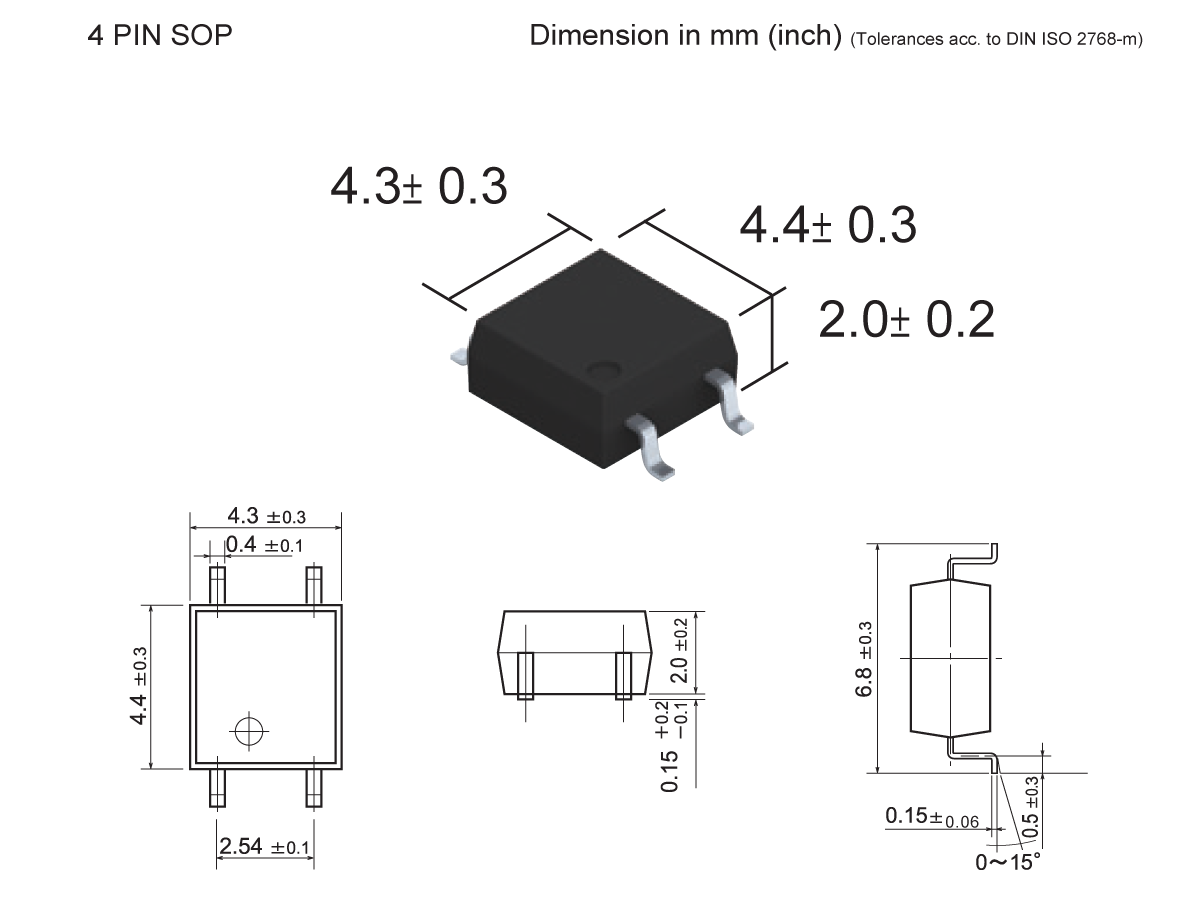

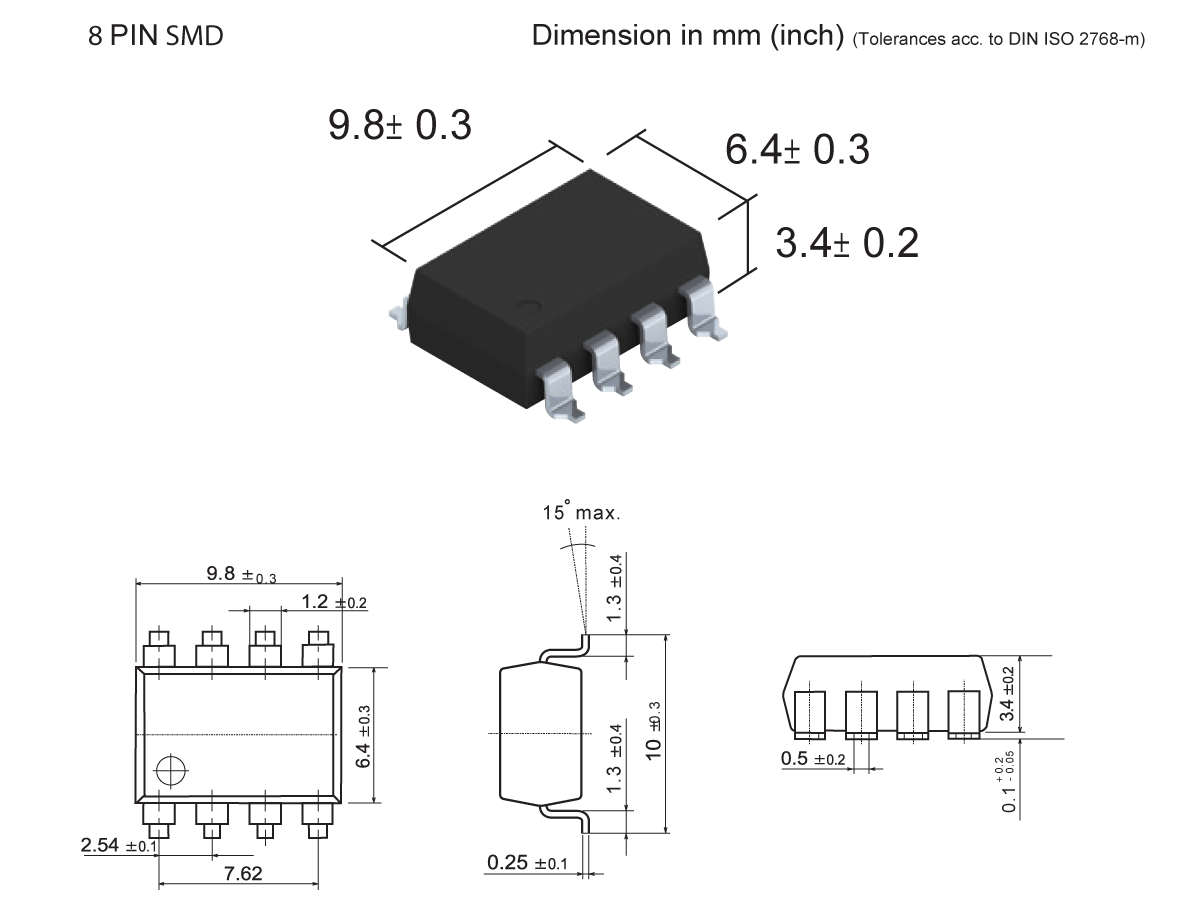

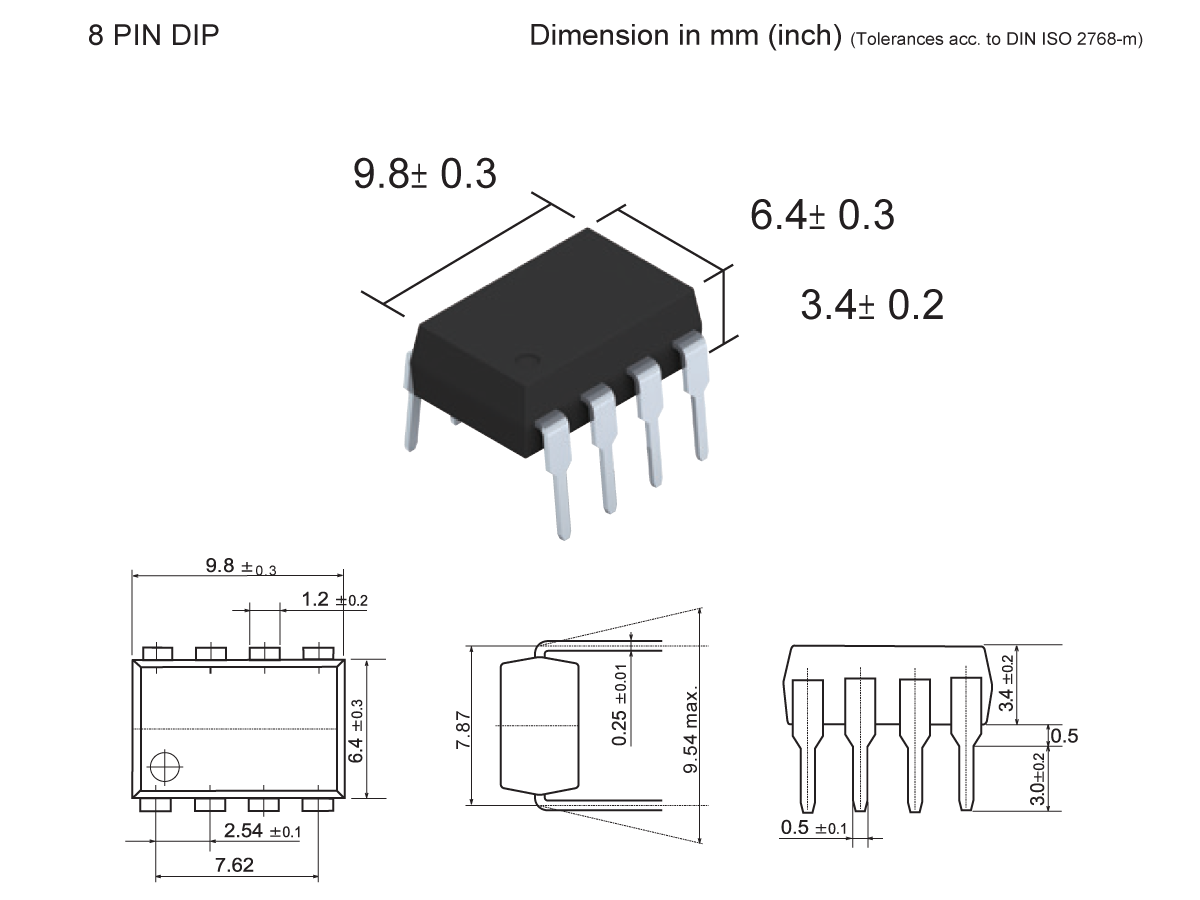

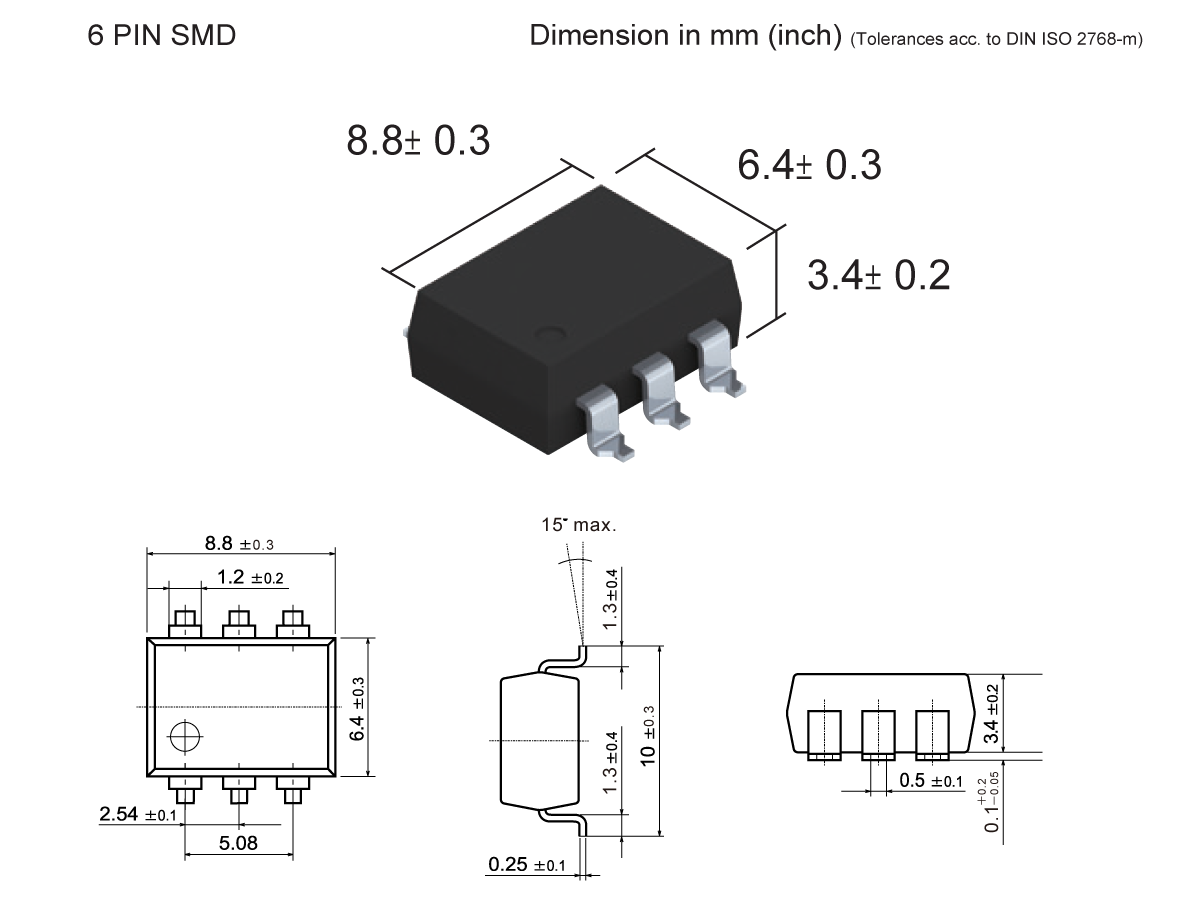

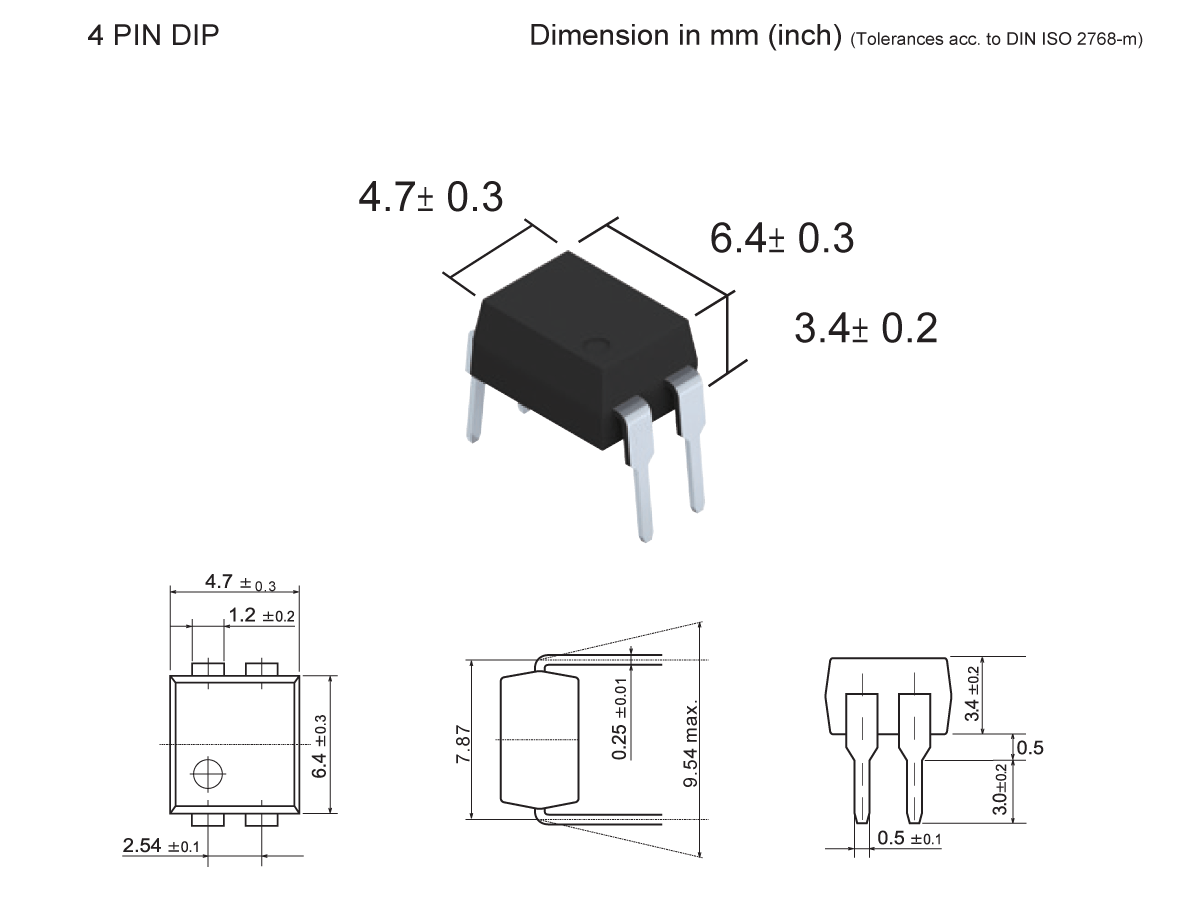

| Package Style (Pin Count) | DIP(4, 6, 8), SMD(4, 6, 8), SOP(4, 8) |
| Load Voltage (V) AC/DC | 400 |
| Load Current Max. (mA) | 120 |
| LED Operate Current Typ/Max. (mA) | 0.7/3.0 |
| On Resistance Typ/Max. (Ω) | 21/24 |
| Output Capacitance (pF) | 52 |
| Off-State Leakage (μA) | 1 |
- Automated Test Equipment (ATE): Reliable switching for precision testing
- Electric Vehicles: Medium-power control in battery and power systems
- I/O Modules: Signal routing and isolation in industrial automation
- Medical Equipment: Safe, low-noise switching in diagnostic and monitoring devices
- Sensing Equipment: Clean signal control in precision instrumentation
- Telecommunications: Compact relay replacement in communication systems
- Security Systems: Silent, dependable switching in access control and alarm systems
