SMP-40 Photo-MOSFET Relay
The SMP-40 Series is a high-voltage, solid-state Photo-MOSFET relay designed for ultra-reliable switching in compact, high-performance electronic systems. Available in SMD and DIP packages, it supports switching up to 1500 V AC or peak DC and load currents up to 45 mA, making it ideal for applications requiring high isolation and voltage handling in a small footprint.
With a typical on-resistance of 180 Ω, low output capacitance of 83 pF, and minimal off-state leakage current of 1 µA, the SMP-40 Series ensures clean signal transitions and high signal integrity. Its solid-state design eliminates mechanical wear and contact bounce, offering superior resistance to shock, vibration, and environmental contaminants.
This series is optimized for switching both low-level analog signals and higher-level loads such as LEDs, relays, solenoids, and lamps. Its extremely high input-to-output isolation and long operational life make it a dependable solution for industrial, automotive, medical, and test environments.
Standards and Certifications
- Solid-state switching with no contact bounce or mechanical degradation
- Ultra-high voltage switching capability (up to 1500 V AC/DC)
- Low output capacitance (83 pF) for clean signal transitions
- Minimal off-state leakage (1 µA) for high signal fidelity
- Extremely high input-to-output isolation for safe circuit separation
- Available in SMD and DIP packages for flexible integration
- Shock and vibration resistant, impervious to dirty environments
- Stable on-resistance over time for consistent performance
- Long operational life with high reliability in solid-state form
| Contact Form | 1A |

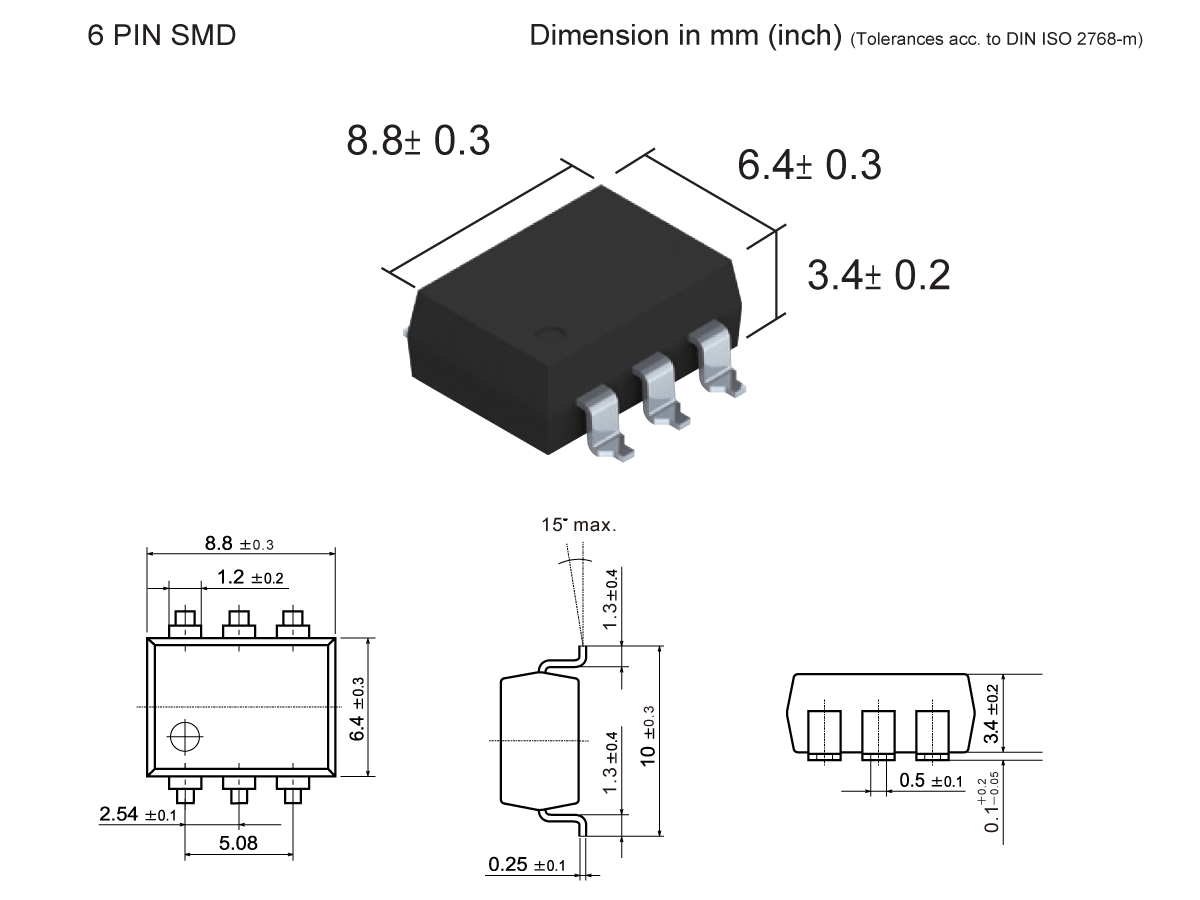

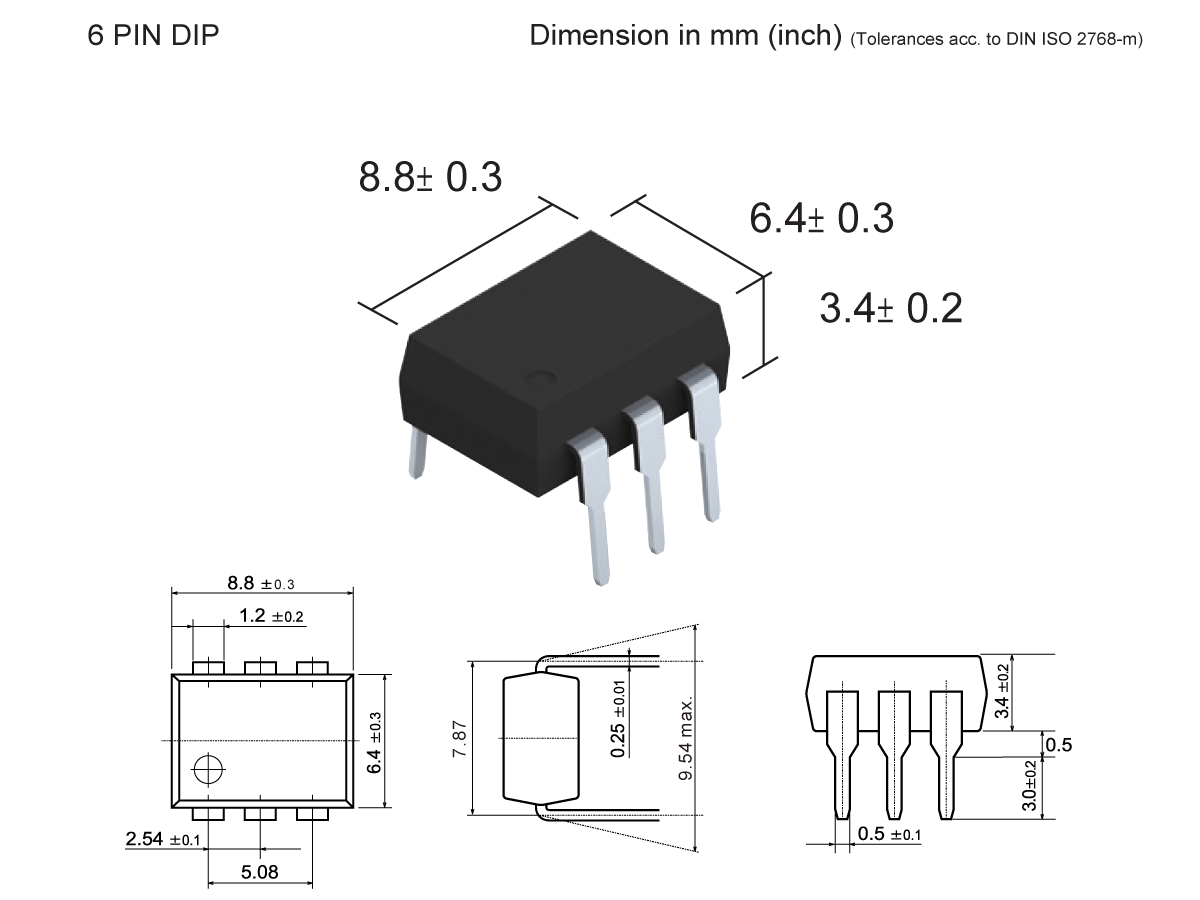

| Package Style (Pin Count) | DIP6, SMD6 |
| Load Voltage (V) AC/DC | 1500 |
| Load Current Max. (mA) | 45 |
| LED Operate Current Typ/Max. (mA) | 0.9/5.0 |
| On Resistance Typ/Max. (Ω) | 180/300 |
| Output Capacitance (pF) | 83 |
| Off-State Leakage (μA) | 10 |
- Automated Test Equipment (ATE): Reliable switching for high-voltage testing
- Electric Vehicles: High-voltage control in battery and power systems
- I/O Modules: Signal routing and isolation in industrial automation
- Medical Equipment: Safe, low-noise switching in diagnostic and monitoring devices
- Sensing Equipment: Clean signal control in precision instrumentation
- Solar Battery Management: Efficient switching in renewable energy systems
- Telecommunications: Compact relay replacement in communication systems
- Security Systems: Silent, dependable switching in access control and alarm systems
- Automotive (AEC-Q101): Qualified for harsh automotive environments
