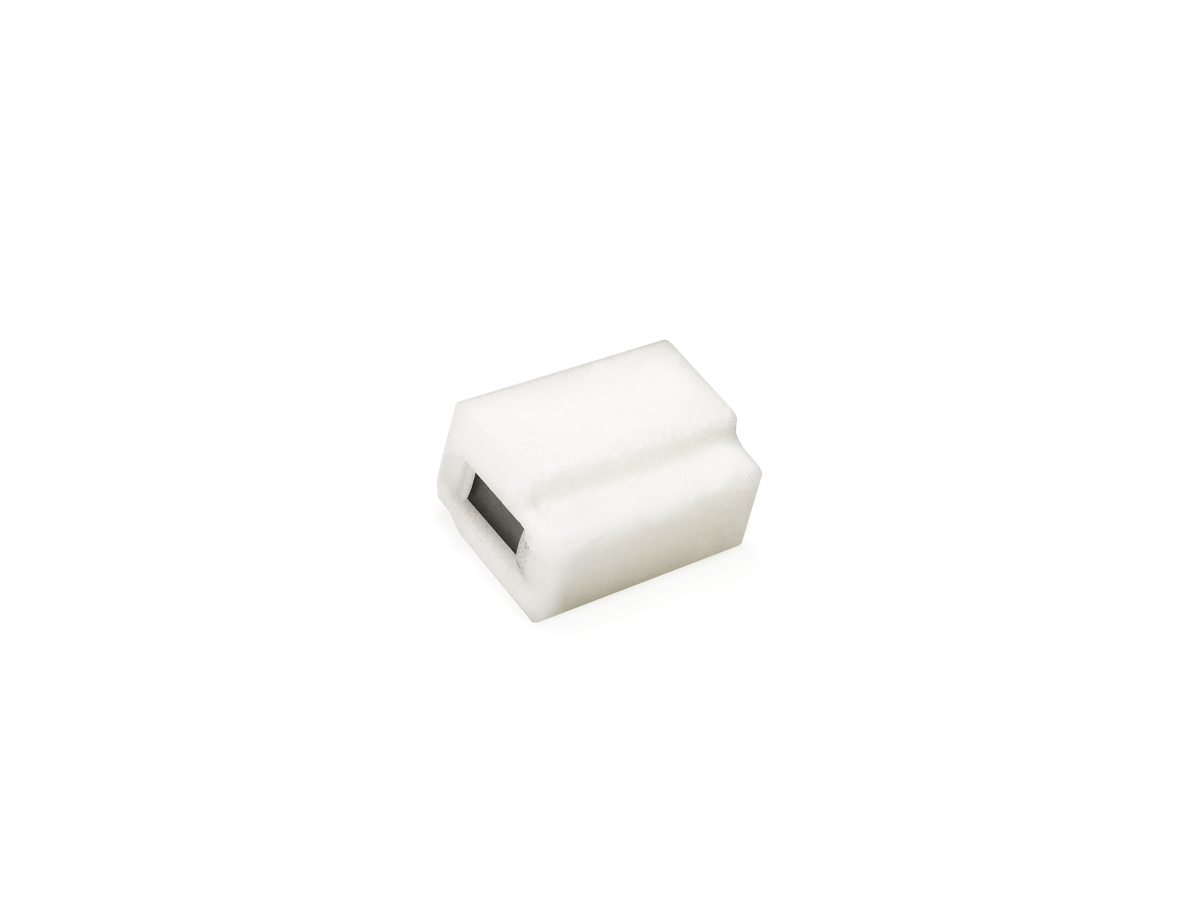

B12450 Series Magnetic Float
The B12450 Series is a compact magnetic float designed for integration within bottle assemblies for fluid level sensing. Operating with a minimum fluid specific gravity of 0.79, it is optimized for use with the R11774 and R12180 Series Liquid Level Sensors. Its small form factor and compatibility with molded plastic containers make it ideal for automotive, appliance, and industrial applications requiring precise and reliable float-based actuation.
Constructed for seamless operation within fluid reservoirs, the B12450 Series enables magnetic actuation without direct contact, ensuring long-term durability and consistent performance.
Standards and Certifications
- Compact float design for integration in blow or injection molded bottles
- Operates with fluid specific gravity ≥ 0.79 for broad fluid compatibility
- Compatible with R11774 and R12180 Series Liquid Level Sensors
- Magnetic actuation enables non-contact switching for enhanced reliability
- Ideal for embedded sensing within bottle assemblies
- Supports low-profile applications with minimal space requirements

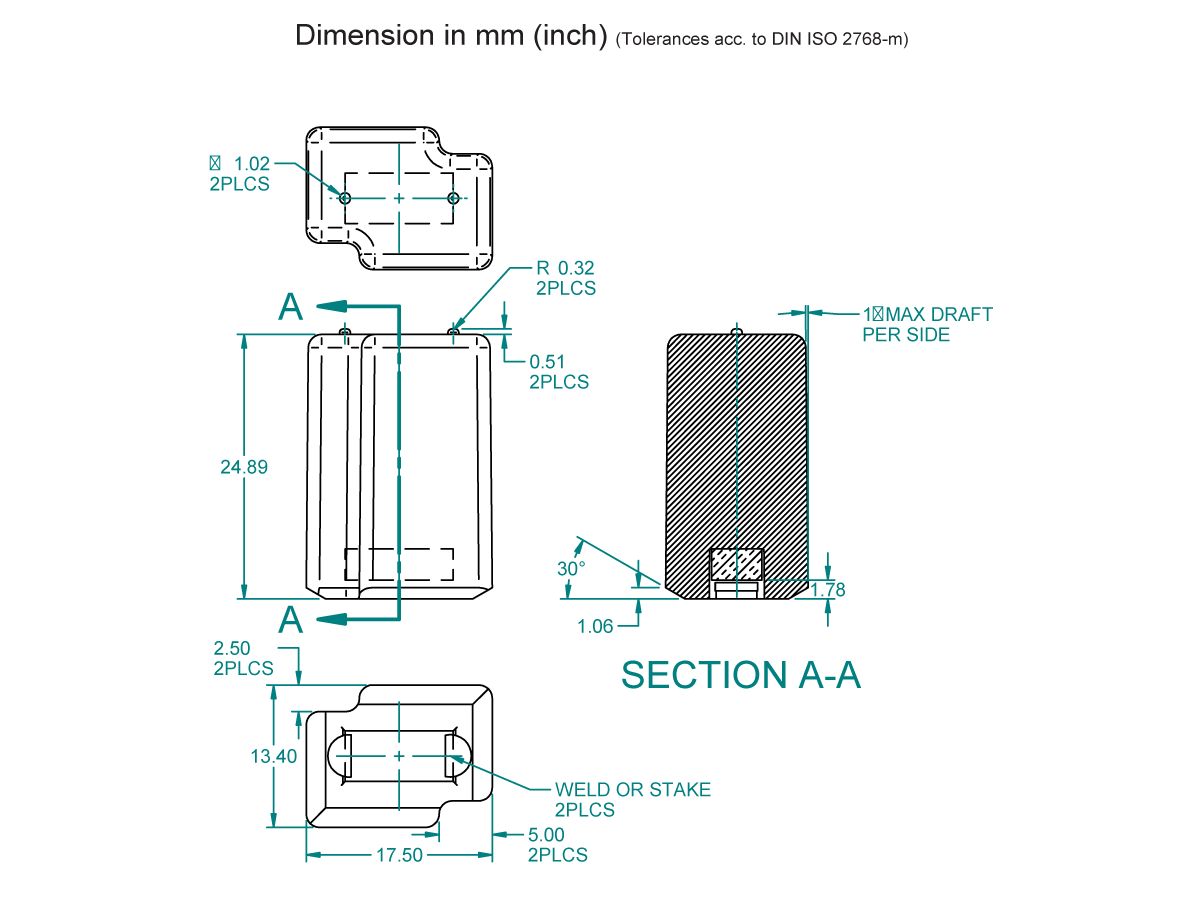

| Length mm (inches) | 17.5 (0.688) |
| Width mm (inches) | 13.4 (0.527) |
| Height mm (inches) | 24.9 (0.980) |
- Automotive Systems: Brake fluid and washer fluid level sensing
- Consumer Appliances: Liquid detection in refillable reservoirs (e.g., coffee makers)
- Industrial Equipment: Fluid monitoring in compact tanks and containers
- Medical Devices: Disposable cartridge fluid level sensing
- HVAC Systems: Condensate and coolant level detection
- Food & Beverage: Embedded fluid sensing in processing equipment
