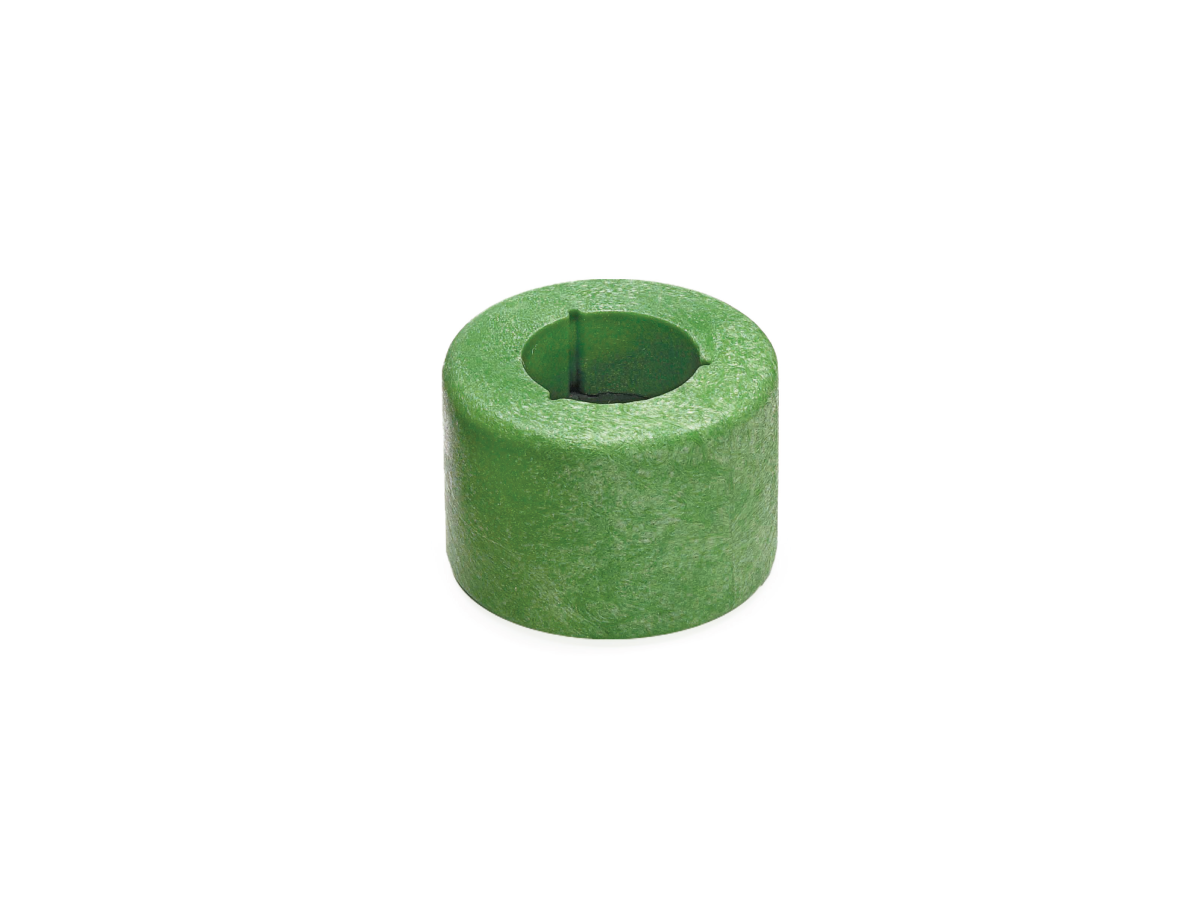

B12469 Series Magnetic Float
The B12469 Series is a compact magnetic float designed for integration within bottle assemblies for fluid level sensing applications. Engineered to operate based on fluid-specific gravity, it is optimized for compatibility with the R12468 Series Liquid Level Sensor. Its precise dimensions and buoyancy characteristics make it ideal for molded plastic containers in automotive and industrial systems.

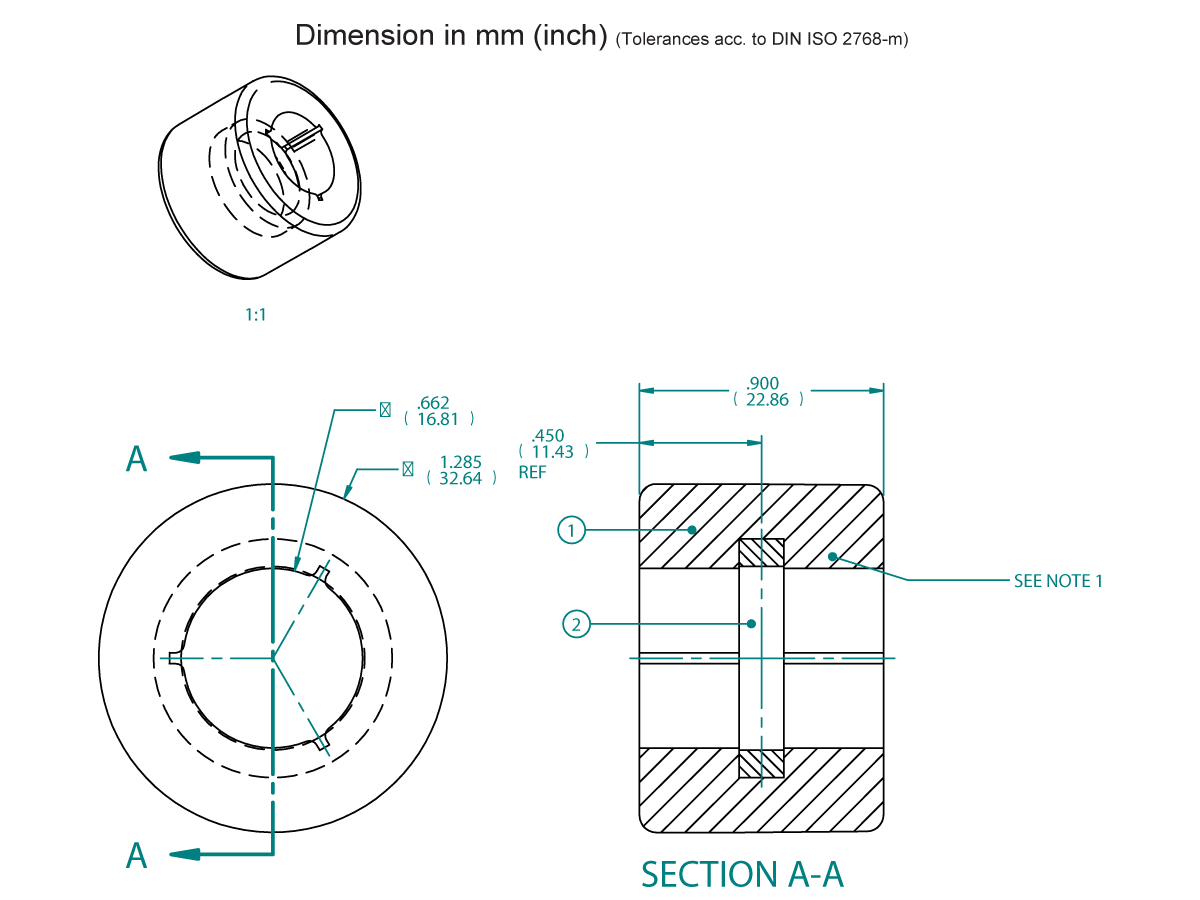

With an outer diameter of 32.6 mm and a height of 22.9 mm, the B12469 Series offers reliable float actuation in constrained environments, supporting accurate and repeatable fluid level detection.
Standards and Certifications
- Magnetic float designed for bottle assembly integration
- Operates based on fluid-specific gravity for tailored sensing
- Compatible with R12468 Series Liquid Level Sensor
- Compact dimensions: 32.6 mm OD × 22.9 mm height
- Ideal for blow or injection molded plastic containers
- Robust construction for consistent float actuation
- Designed for low-power, passive magnetic sensing systems
| Outside Dia. mm (inches) | 32.6 (1.283) |
| Height mm (inches) | 22.9 (0.901) |
- Automotive Systems: Fluid level sensing in brake fluid and washer reservoirs
- Industrial Equipment: Compact tank monitoring in molded enclosures
- Consumer Appliances: Liquid detection in refillable containers
- Medical Devices: Fluid sensing in cartridge-based systems
- HVAC Systems: Monitoring condensate or coolant levels
- Food & Beverage: Float-based sensing in refillable tanks or dispensers
