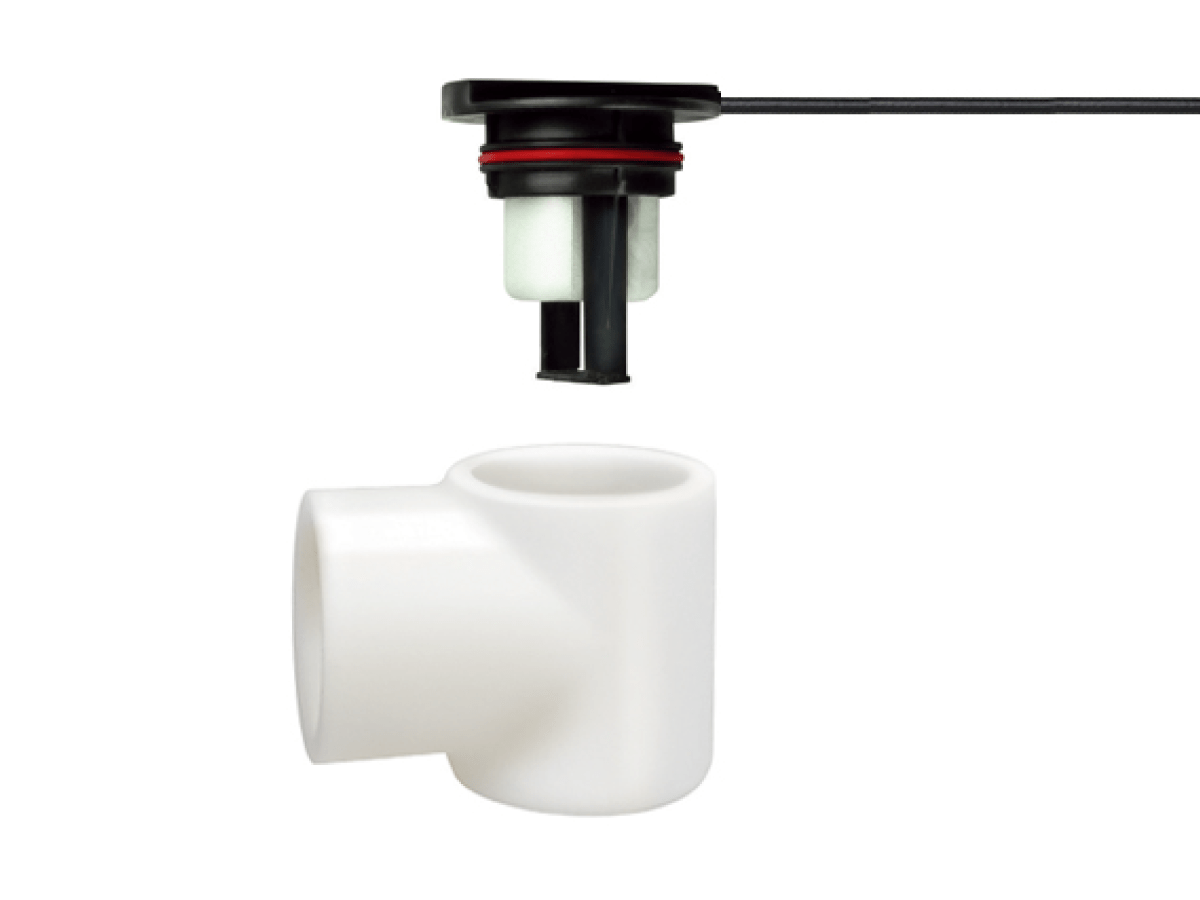

FPS-L Series (HVAC/R) Liquid Level Sensor
The FPS-L Series is a low-profile flood prevention switch designed for HVAC/R systems, offering reliable protection against condensate overflow. Engineered for compact installations, it automatically shuts off air conditioning systems when water levels rise due to clogged drain lines—helping prevent damage to ceilings, walls, and floors.
Its slim design allows for easy mounting directly to the side of the drain pan, making it ideal for tight spaces and retrofit applications. The FPS-L Series complies with UL508, NEC, and IMC standards, ensuring dependable performance and code compliance in both residential and commercial HVAC systems.
Standards and Certifications
- Low-profile design for space-constrained installations
- Automatically shuts off HVAC systems to prevent water overflow
- Side-mount configuration for easy installation and servicing
- Ideal for retrofit and new construction HVAC applications
- UL508, NEC, and IMC compliant for safety and regulatory adherence
- Reliable operation in residential and commercial environments
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 100VA/200VDC/1.5A |
| Float/Housing Material | PP/PP |
- Residential HVAC Systems: Flood prevention in air conditioning units
- Commercial HVAC Systems: Protection for ceiling-mounted and ducted systems
- Facility Maintenance: Preventative control in building management systems
- Smart Home Integration: Automated shutoff for water level monitoring
- Retrofit Projects: Easy upgrade for existing HVAC installations
- New Construction: Code-compliant solution for condensate management
