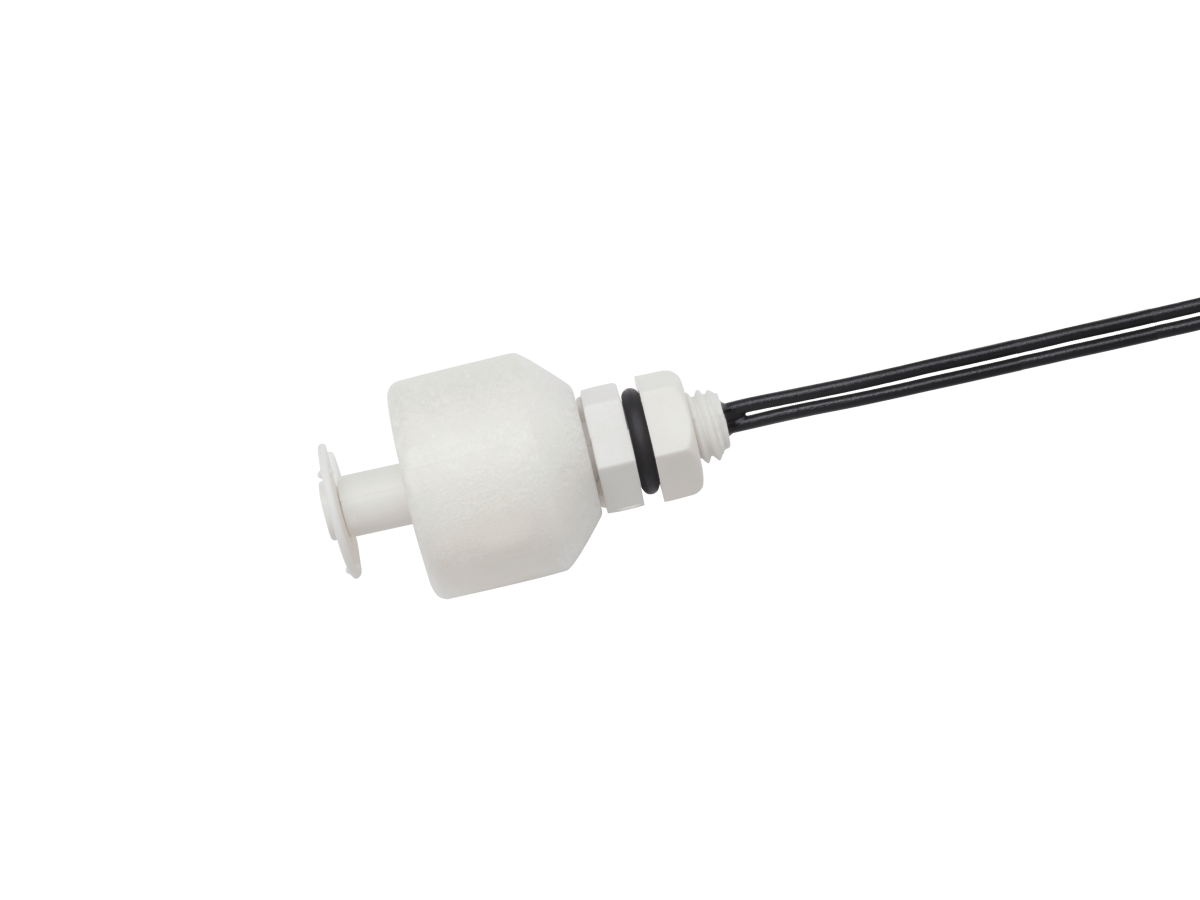

LS01 Series Liquid Level Sensor
The LS01 Series is a compact, single-level vertical mount liquid level sensor designed for accurate fluid detection and control across a wide range of applications. Available in multiple contact forms—SPST-NO (Form A), SPST-NC (Form B), and SPDT (Form C)—it offers flexible switching options for both low and high-power systems.
Constructed from durable materials such as PA, PP, and NBR, the LS01 Series supports rated power up to 100 W, 400 VDC, and 1.0 A. Its modular design allows for customization with various cables and connectors, making it ideal for integration into automotive, appliance, HVAC/R, and test & measurement systems.
Standards and Certifications
- Compact vertical mount design for space-efficient installation

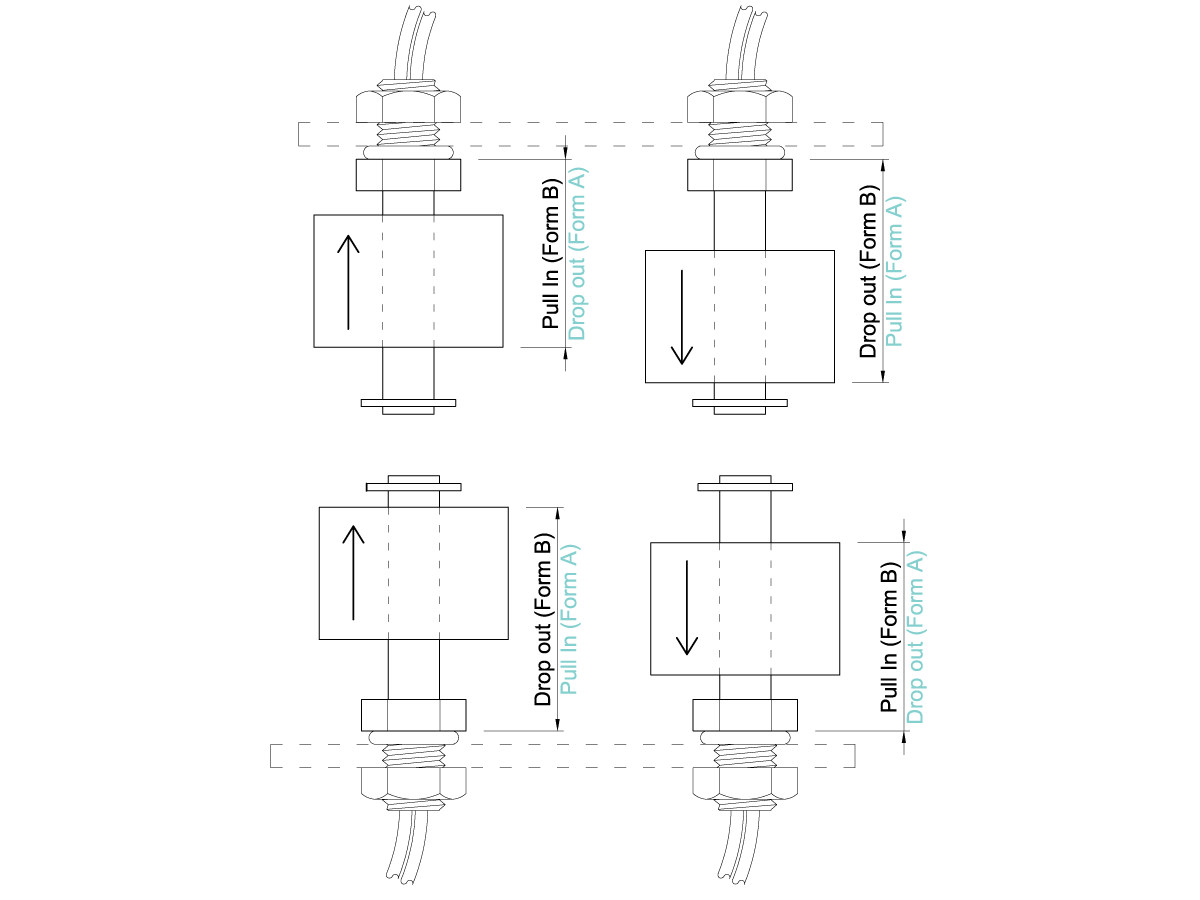

- Multiple contact forms (Form A, B, C) for flexible switching configurations
- Rated for up to 100 W, 400 VDC, and 1.0 A for high-power applications
- Constructed from PA, PP, and NBR for chemical and thermal resistance
- Customizable with various cable and connector options
- Reliable magnetic float actuation with no external power required
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Rated Power Max. | 100W/400VDC/1.0A |
| Shaft/Float | PA, PP/PA, PP, NBR |
- Automotive Systems: Coolant and fuel level monitoring
- Home Appliances: Water level detection in dishwashers and washing machines
- HVAC/R Systems: Condensate level control and overflow prevention
- Test & Measurement Equipment: Fluid level sensing in lab instrumentation
- Industrial Controls: Tank level monitoring, pump activation
- Medical Devices: Liquid detection in sterilization and diagnostic equipment
