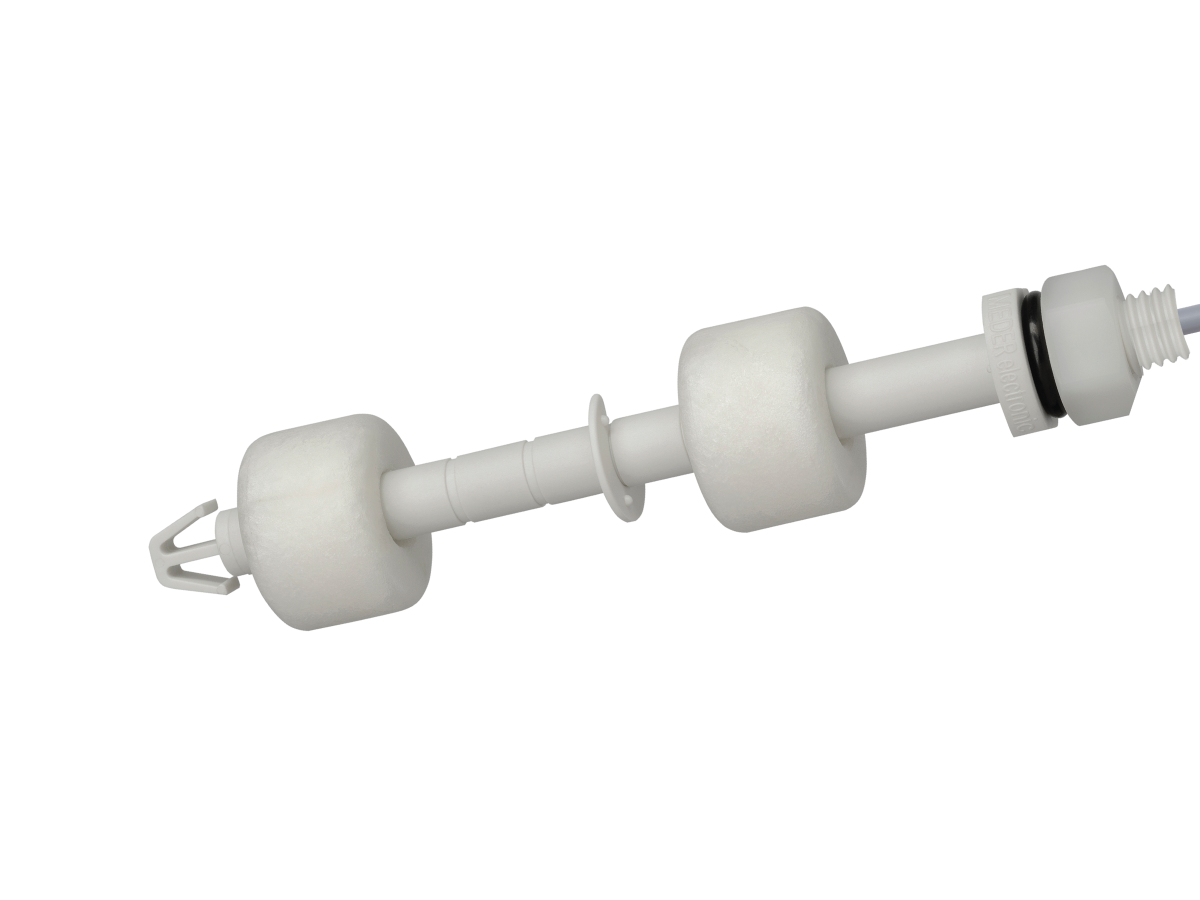

LS04 Series Liquid Level Sensor
The LS04 Series is a versatile liquid level sensor designed for single-point, multi-point, and continuous level detection in reservoirs, tanks, bottles, and other container types. With support for up to six floats and multiple mounting configurations, it offers flexible and reliable fluid monitoring across a wide range of industrial and commercial applications.
Available in SPST-NO (Form A), SPST-NC (Form B), SPDT (Form C), and latching/bistable (Form E) contact forms, the LS04 Series supports rated power up to 100 W, 400 VDC, and 1.0 A. Constructed from durable materials such as PP and NBR, it is customizable with various cable and connector options to suit specific installation needs.
Standards and Certifications
- Supports single, multi-point, and continuous level sensing
- Up to six float positions for advanced fluid monitoring
- Multiple contact forms (Form A, B, C, E) for flexible switching configurations
- Rated for up to 100 W, 400 VDC, and 1.0 A for high-power applications
- Shaft and float materials available in PP and NBR for chemical resistance
- Customizable cable and connector options for tailored integration
- Suitable for top-mount configurations in various container types
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover, 1E Latching/Bistable |
| Rated Power Max. | 100W/400VDC/1.0A |
| Shaft/Float | PP/PP, NBR |
- Automotive Systems: Multi-fluid level monitoring (fuel, coolant, brake fluid)
- Industrial Controls: Tank level monitoring, pump activation
- Food & Beverage: Liquid level detection in processing and storage systems
- Laboratory Equipment: Multi-point fluid sensing in analytical instruments
- Marine Systems: Bilge and tank level monitoring
- Home Appliances: Water level detection in multi-chamber systems
