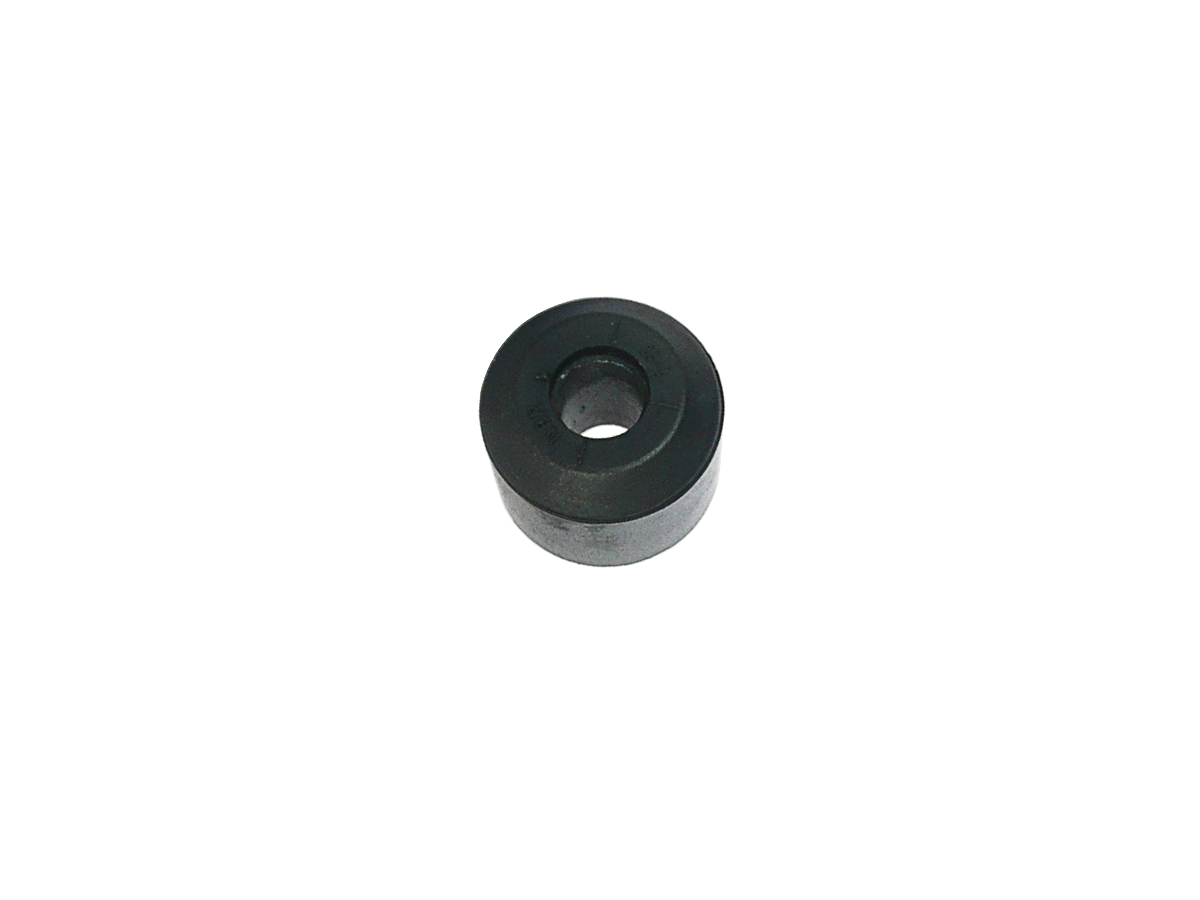

MS01-NBR Series Magnetic Float
The MS01-NBR Series Magnetic Float ring actuator magnet (excentric) have excellent resistance to petroleum-derived liquids such as oil and gasoline and can be used in high temperature applications as well. Suited for stems with an outer diameter up to 7.5mm; float is foam. Actuator magnet is contained within the float though partially exposed to the liquid material. Compatible with Liquid Level Sensor series LS01, LS02, LS02-S, LS04, LS05.
Standards and Certifications

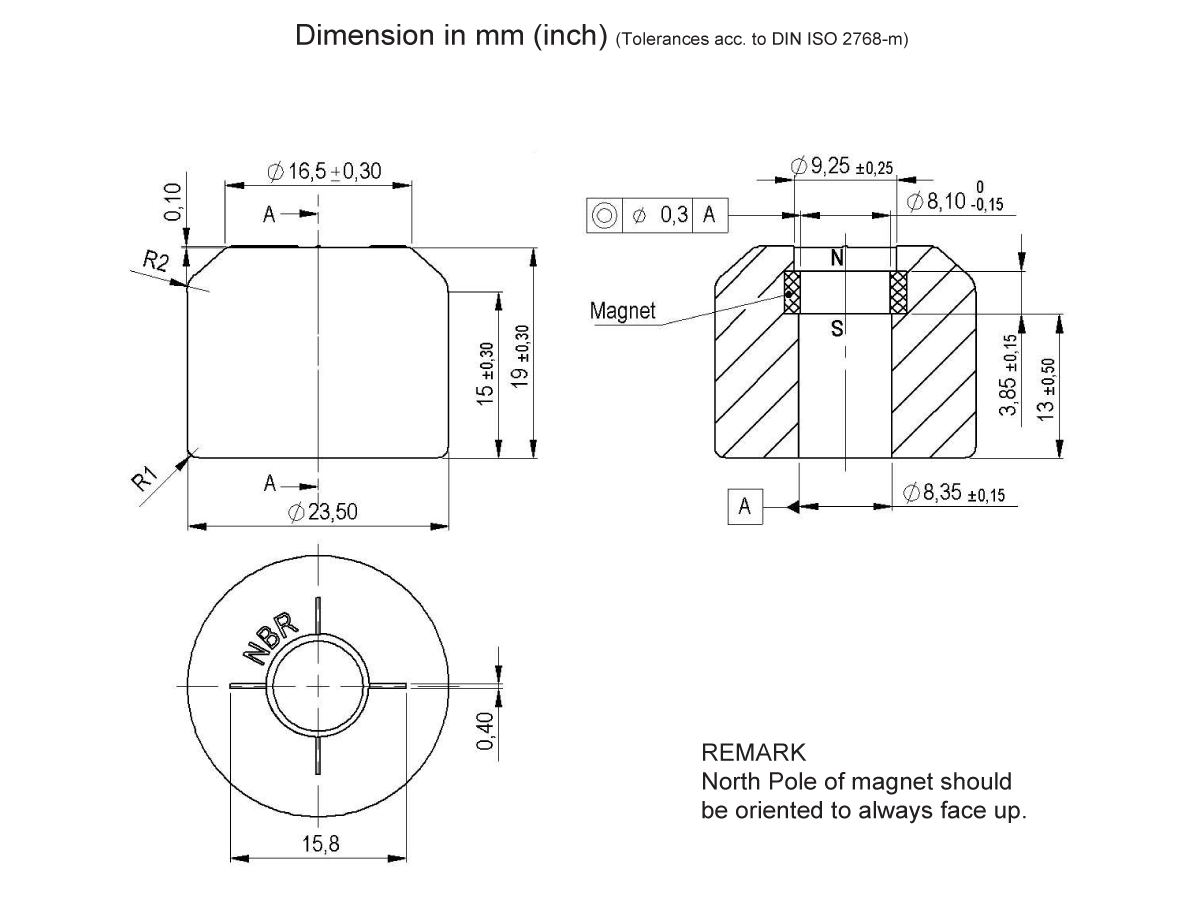

| Outside Dia. mm (inches) | 24.5 (0.964) |
| Inside Dia. mm (inches) | 8.0 (0.314) |
| Height mm (inches) | 19.0 (0.748) |
Petroleum-derived liquids such as oil and gasoline, high temperatures. Compatible with the LS01, LS02, LS02-S, LS04, LS05 liquid level sensor series.
