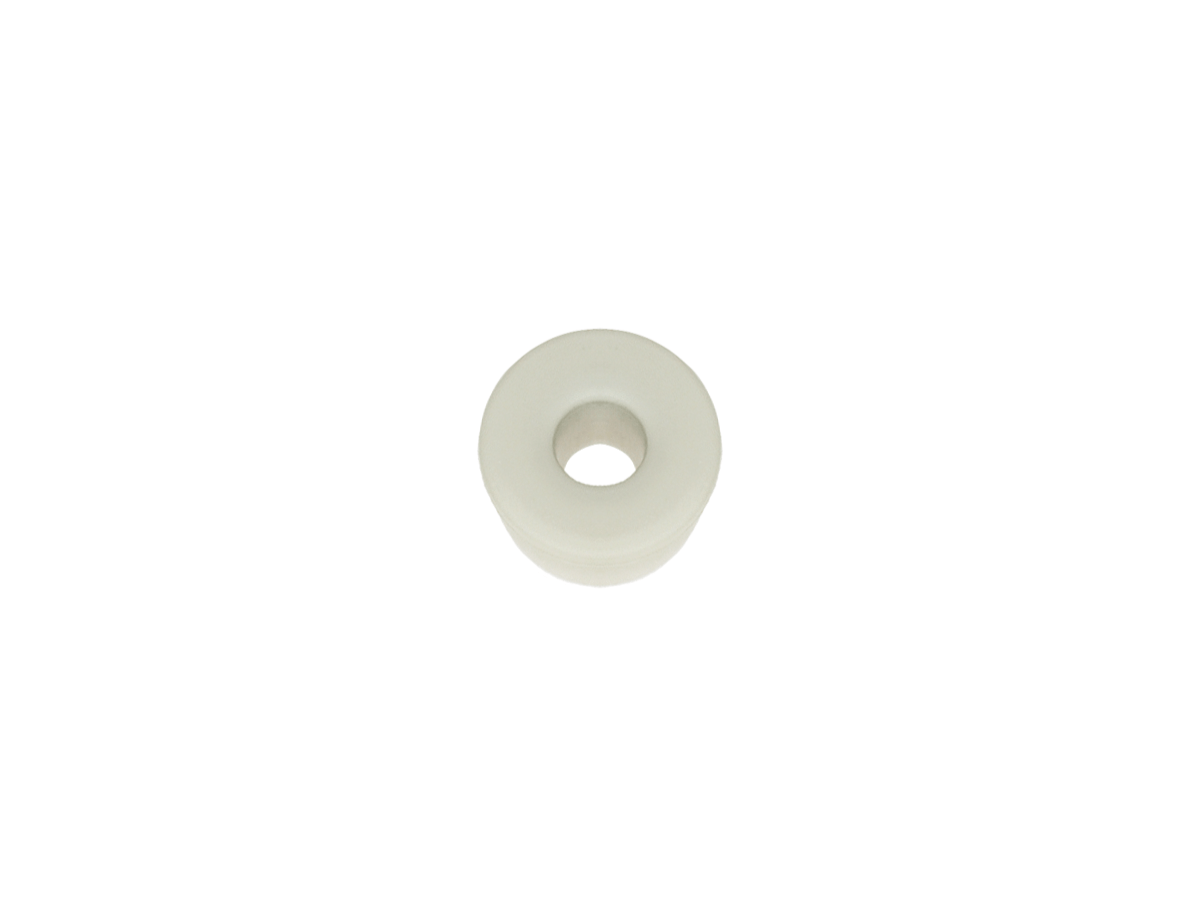

MS02-PP Series Magnetic Float
The MS02-PP Series Magnetic Float ring actuator magnet (excentric) have excellent buoyancy with water absorption of only 0.1%. They are also highly resistant to chemical solvents, bases and acids making them an excellent choice for water-level sensors, automotive applications and producers of manufacturing and plant equipment. Suitable for stems with an outer diameter up to 8.5mm; float is foam. Actuator magnet is contained within the float though partially exposed to the liquid material. Compatible with Liquid Level Sensor series LS01, LS02, LS02-S, LS04, LS05.
Standards and Certifications

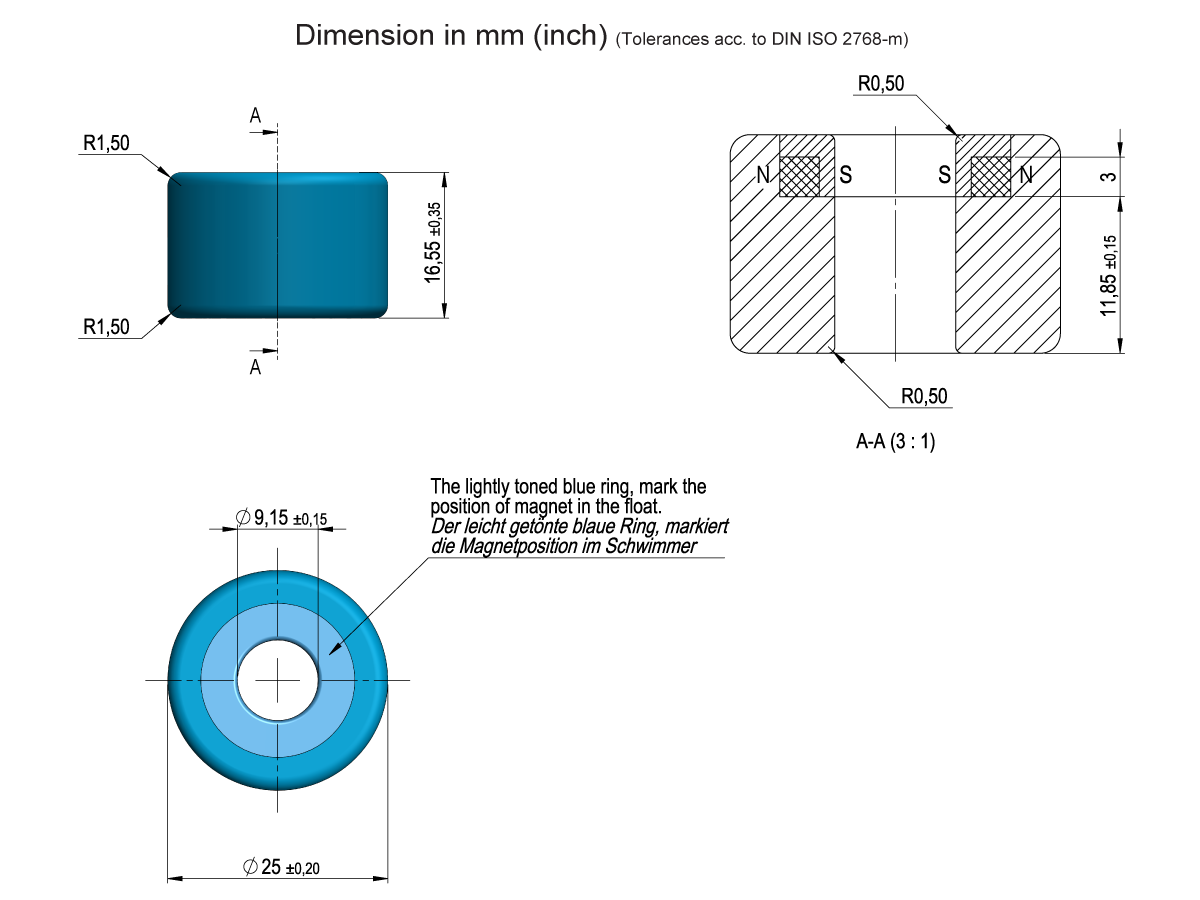

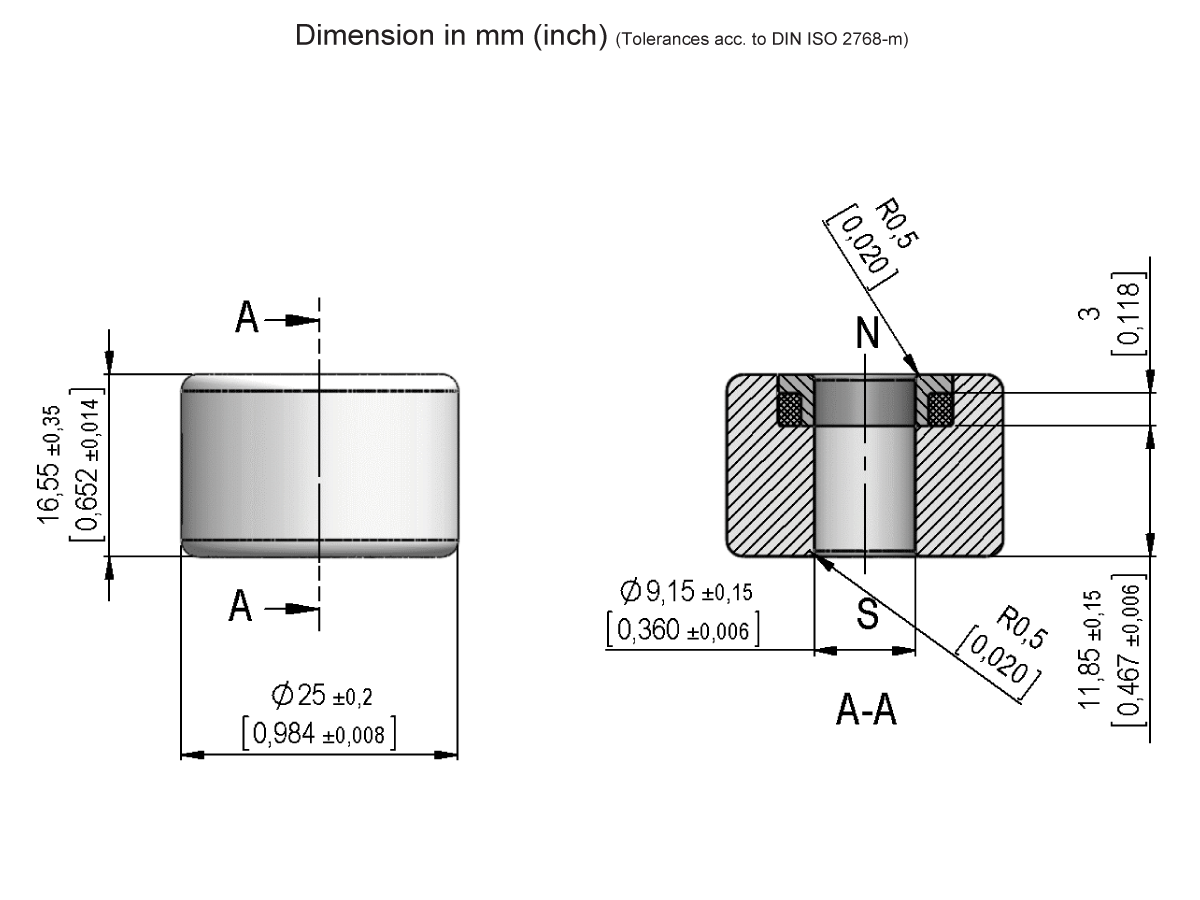

| Outside Dia. mm (inches) | 25.2 (0.992) |
| Inside Dia. mm (inches) | 9.15 (0.360) |
| Height mm (inches) | 16.55 (0.651) |
Chemical solvents, bases and acids in water-level sensors, automotive applications and producers of manufacturing and plant equipment. Compatible with the LS01, LS02, LS02-S, LS04, LS05 liquid level sensor series.
