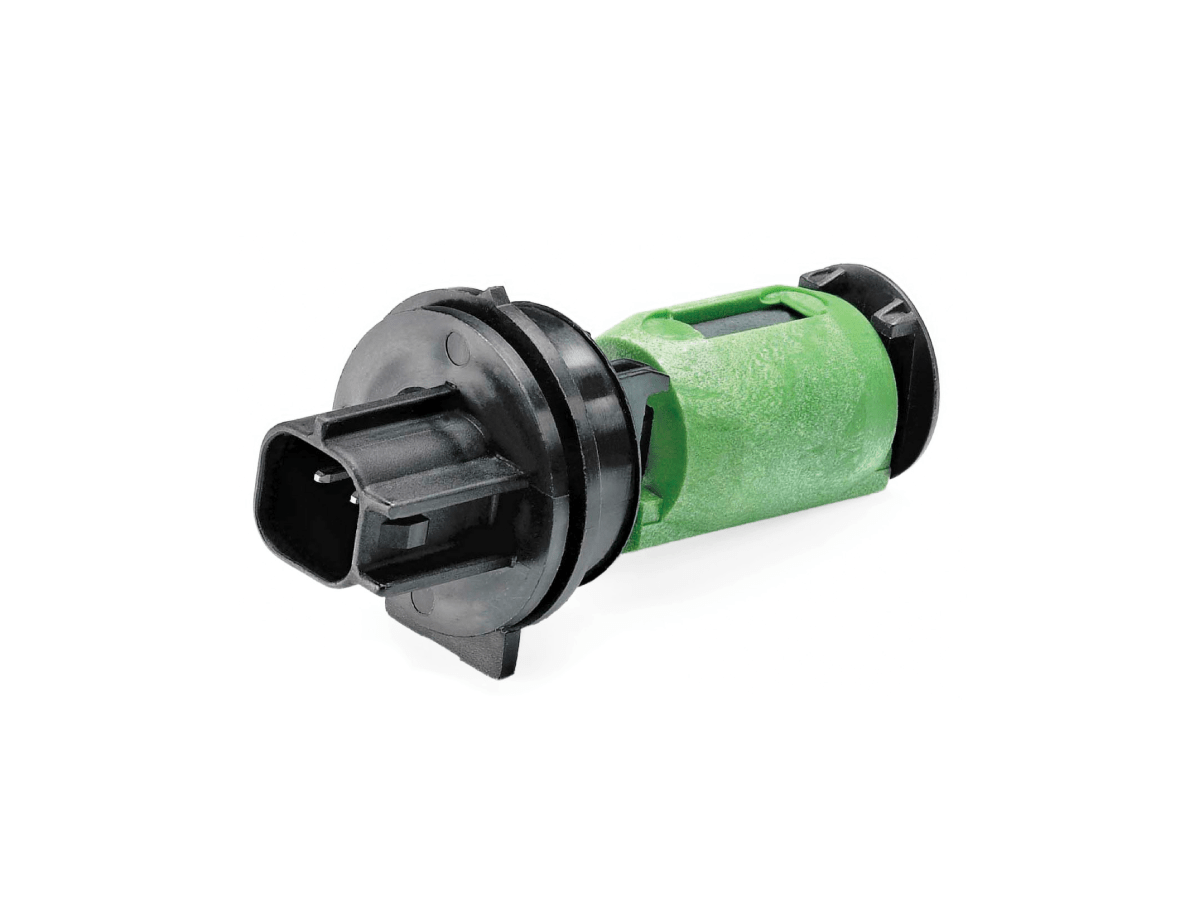

R12456 Series Liquid Level Sensor
The R12456 Series is a horizontal-mount liquid level sensor engineered for precision fluid detection in blow or injection molded plastic containers. Designed with a separate seal grommet and an internal snubber resistor, it ensures reliable operation in automotive and industrial environments. The sensor is compatible with Yazaki P/N 7283-6434-40 connectors and supports SPST-NO (Form A) and SPST-NC (Form B) contact configurations.
With a rated power of up to 10 W, 100 V, and 0.5 A, the R12456 Series is ideal for low-power applications requiring compact, robust, and cost-effective fluid sensing solutions.
Standards and Certifications
- Horizontal mount design tailored for blow or injection molded plastic bottles
- Internal snubber resistor for enhanced electrical noise suppression
- Separate seal grommet for improved environmental sealing and durability
- Compatible with Yazaki P/N 7283-6434-40 connectors for streamlined integration
- Available in SPST-NO (Form A) and SPST-NC (Form B) contact forms
- Compact form factor ideal for space-constrained installations
- Designed for low-power applications up to 10 W, 100 V, 0.5 A
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.) |
| Rated Power Max. | 10W/100V/0.5A |
- Automotive Systems: Brake fluid and windshield washer fluid level monitoring
- Consumer Appliances: Fluid detection in molded reservoirs
- Industrial Equipment: Compact tank level sensing in plastic enclosures
- Medical Devices: Fluid level monitoring in disposable cartridges
- HVAC Systems: Liquid detection in small cooling or condensate units
- Safety & Security: Fluid sensing in tamper-resistant enclosures
