M11B Series Magnet

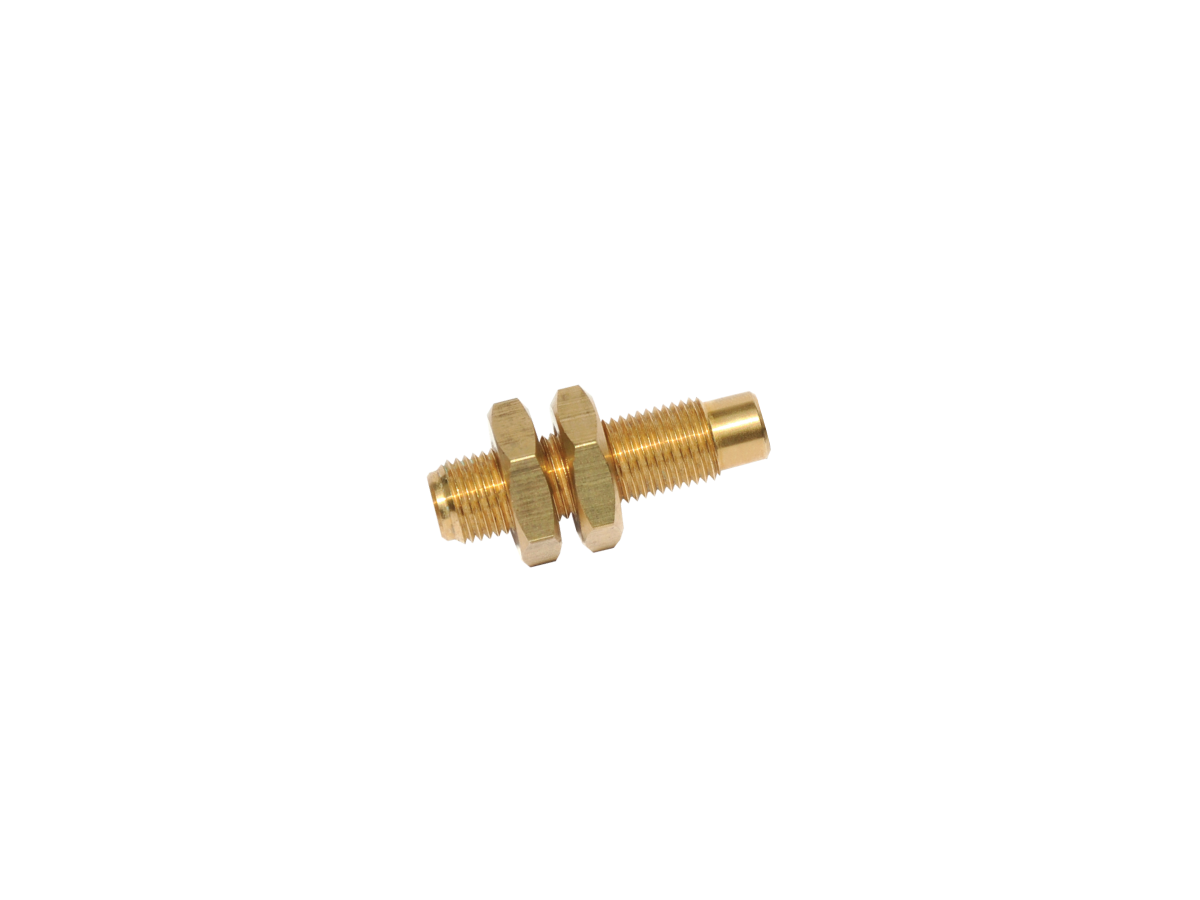

The M11B Series Sensor Magnet is housed in a rugged, threaded brass enclosure designed for high-performance proximity sensing applications. Available in multiple thread sizes (M6, M8, M10, M12), this magnet is engineered to pair with the MK11 Brass series reed sensors (sold separately) to create a reliable, non-contact sensing solution.
Its robust brass housing offers superior resistance to torque, temperature, moisture, and mechanical stress, making it ideal for demanding industrial environments. The threaded design allows for easy installation and precise adjustment.
Standards and Certifications
- Durable Brass Housing: Withstands high torque, compression, and harsh environmental conditions.
- Threaded for Easy Mounting: Available in M6, M8, M10, and M12 thread sizes.
- Compact Design: 38.0 mm (1.496 inches) in length.
- Reliable Magnetic Actuation: Designed to work with MK11 Brass series reed sensors.
- Sealed Construction: Protects internal components from moisture and contaminants.

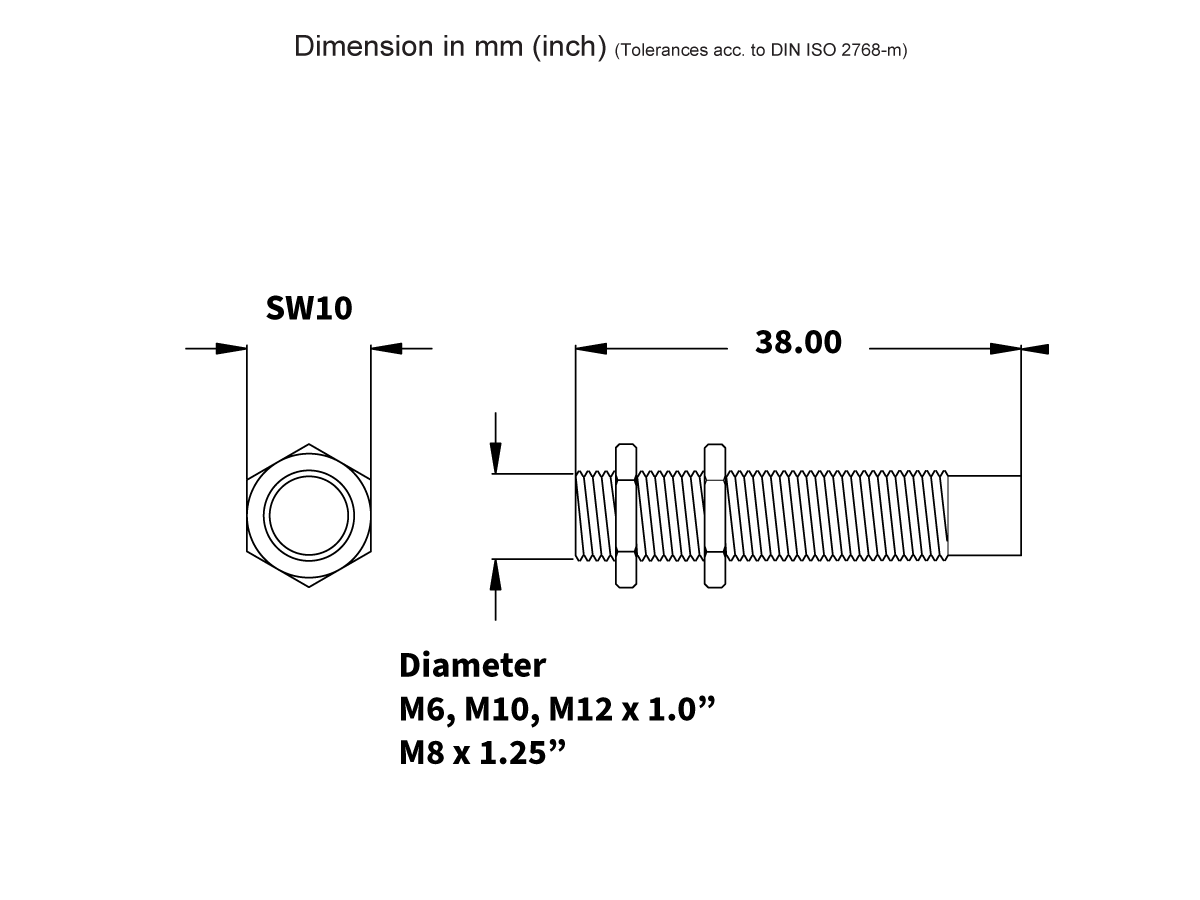

| Length: | 38.0 mm (1.496 inches) |
| Diameter: | M6, M10, M12 x 1.0 inch, M8 x 1.25 inches |
- Heavy-Duty Industrial Equipment: Position sensing in hydraulic or mechanical systems.
- Automated Machinery: Detecting movement or alignment in production lines.
- Transportation: Monitoring components in rail, marine, or automotive systems.
- Security Systems: High-durability sensing for gates, doors, and access points.
- Energy Sector: Used in rugged environments like wind turbines or oil rigs.
