M11P Series Magnet

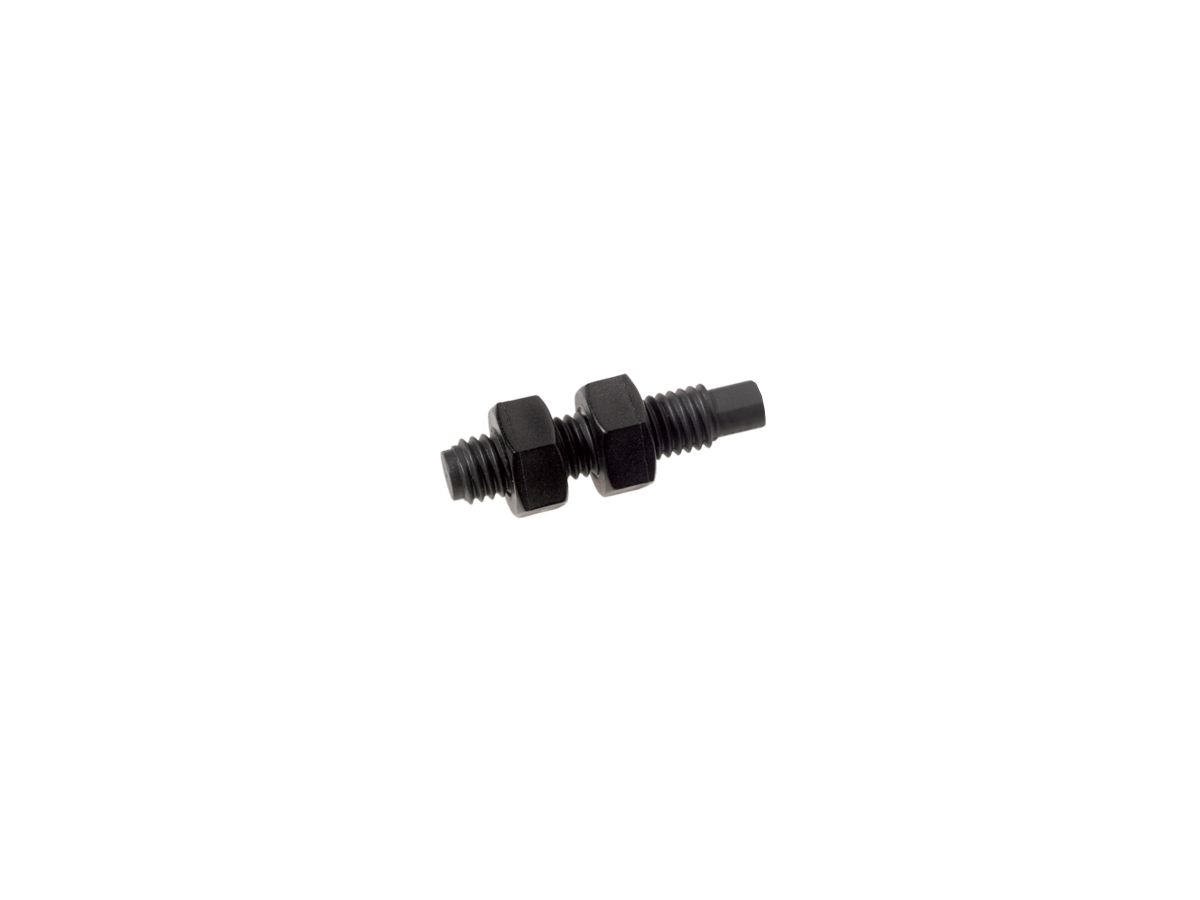

The M11P Series Sensor Magnet is housed in a sealed, threaded plastic enclosure designed for easy installation and adjustment. This magnet is engineered to work in tandem with the MK11 Plastic series reed sensor (sold separately), forming a reliable proximity sensing solution. The magnet is typically mounted on a moving surface, while the sensor is fixed, allowing for accurate detection of position or movement.
Its compact design and threaded body make it ideal for applications requiring precise alignment and secure mounting in tight spaces.
Standards and Certifications
- Threaded Plastic Housing: Lightweight and easy to install or adjust.

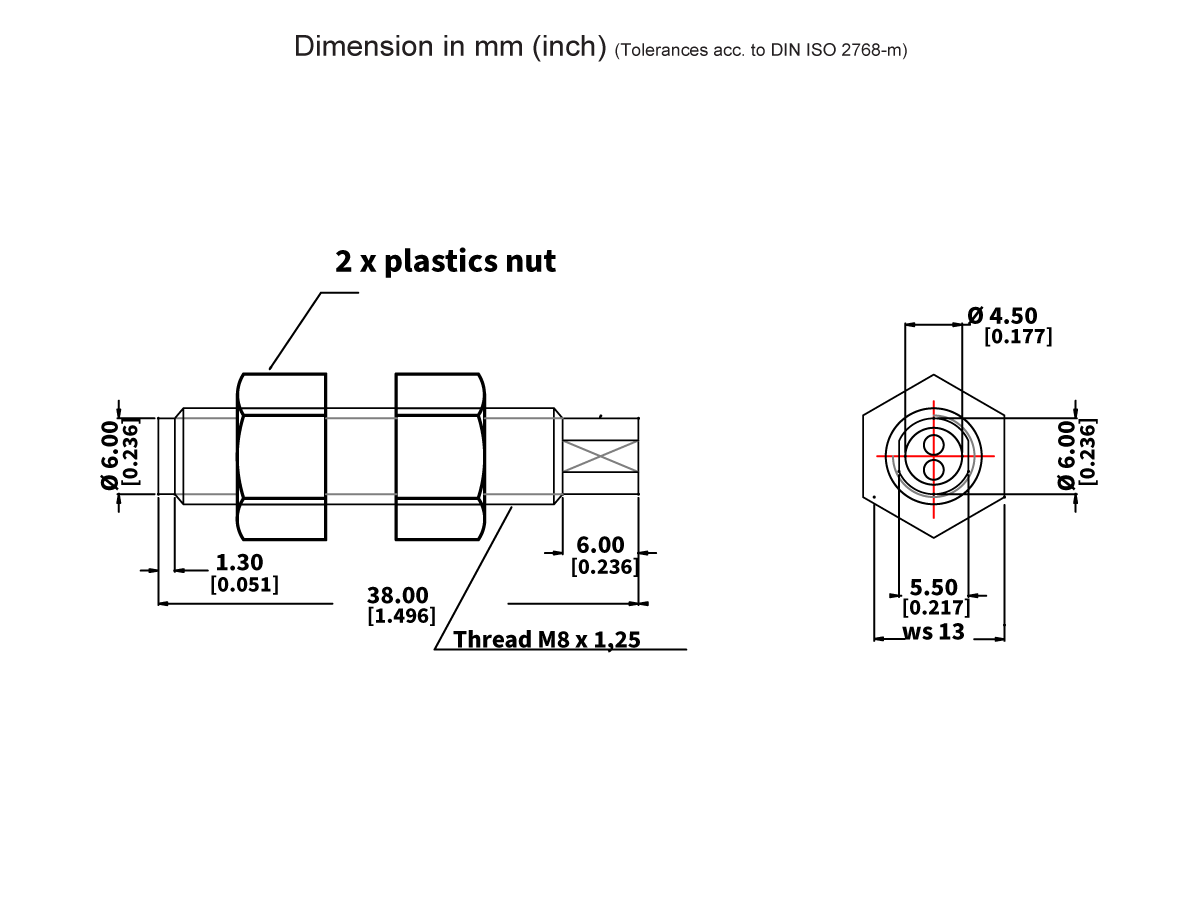

- Compact Size: Measures 38.0 mm (1.496 inches) in length.
- Standard M8 x 1.25 Thread: Compatible with common mounting hardware.
- Reliable Magnetic Actuation: Designed for use with MK11 Plastic Series reed sensors.
- Sealed Construction: Suitable for use in various environmental conditions.
| Length mm (inches): | 38.0 (1.496) |
| Diameter: | M8 x 1.25 inches |
- Factory Automation: Position sensing in robotic arms and conveyor systems.
- Access Control: Monitoring doors, gates, and hatches.
- Medical Devices: Non-contact sensing in clean or sterile environments.
- Transportation Systems: Detecting movement or alignment in vehicles.
- Consumer Products: Embedded sensing in smart appliances and devices.
