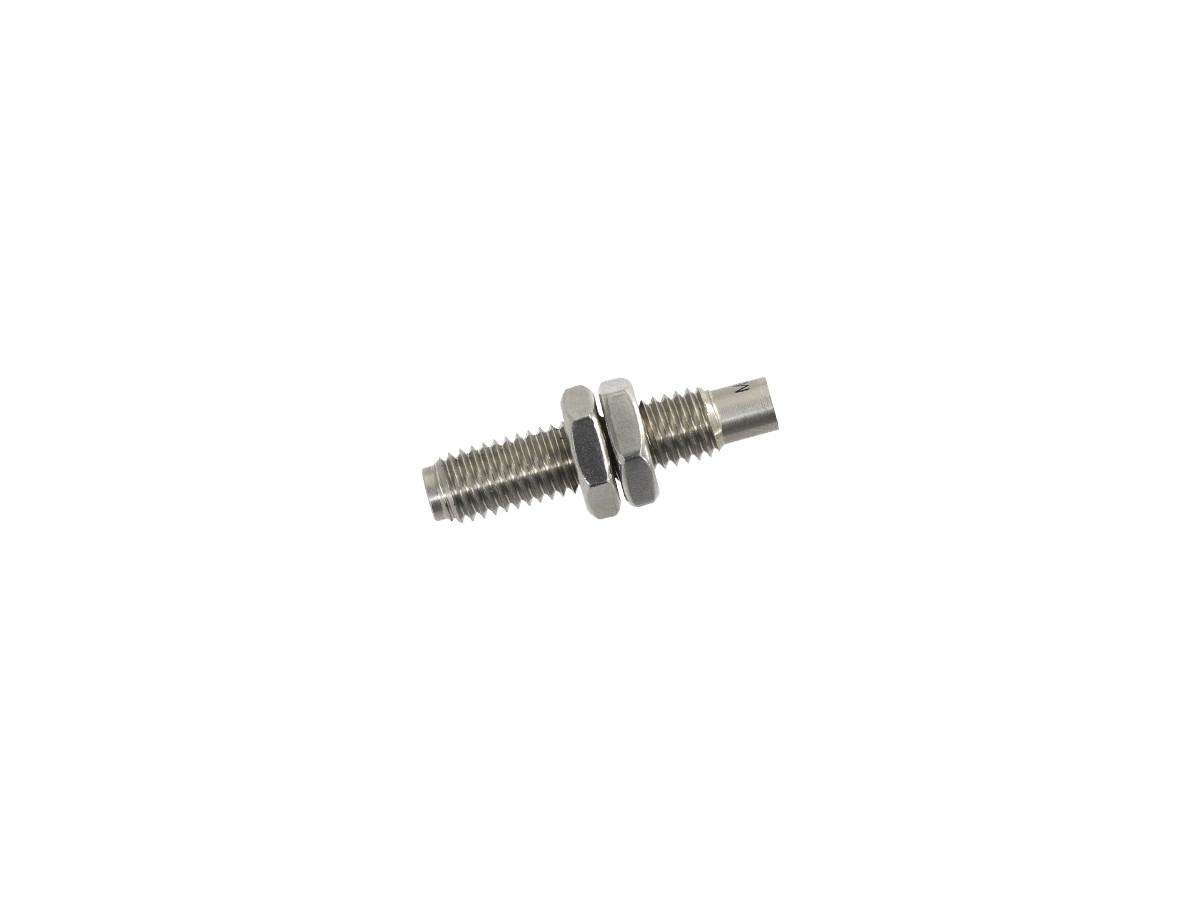

M11S Series Magnet
The M11S Series Sensor Magnet is a compact, durable magnet housed in a threaded stainless steel enclosure, designed for seamless integration with reed sensors such as the MK11 Stainless Steel series reed sensors (sold separately). This magnet is ideal for proximity sensing applications where reliability and ease of installation are critical. The threaded housing is offered in M5 or M8 x 0.5 thread sizes and allows for easy adjustment and secure mounting, making it suitable for a wide range of industrial environments.
Pairing this magnet with a compatible reed sensor enables precise detection of movement or position changes. The sensor should be mounted on a fixed surface, while the magnet is placed on the moving part to trigger the sensing mechanism.
Standards and Certifications
- Threaded Stainless Steel Housing: Ensures durability and easy adjustability.
- Compact Design: Measures just 25.0 mm (0.984 inches) in length.
- Versatile Mounting Options: Available in M5 or M8 x 0.5 thread sizes.
- Reliable Proximity Sensing: Designed to work seamlessly with MK11 series reed sensors.
- Sealed Construction: Suitable for use in demanding environments.

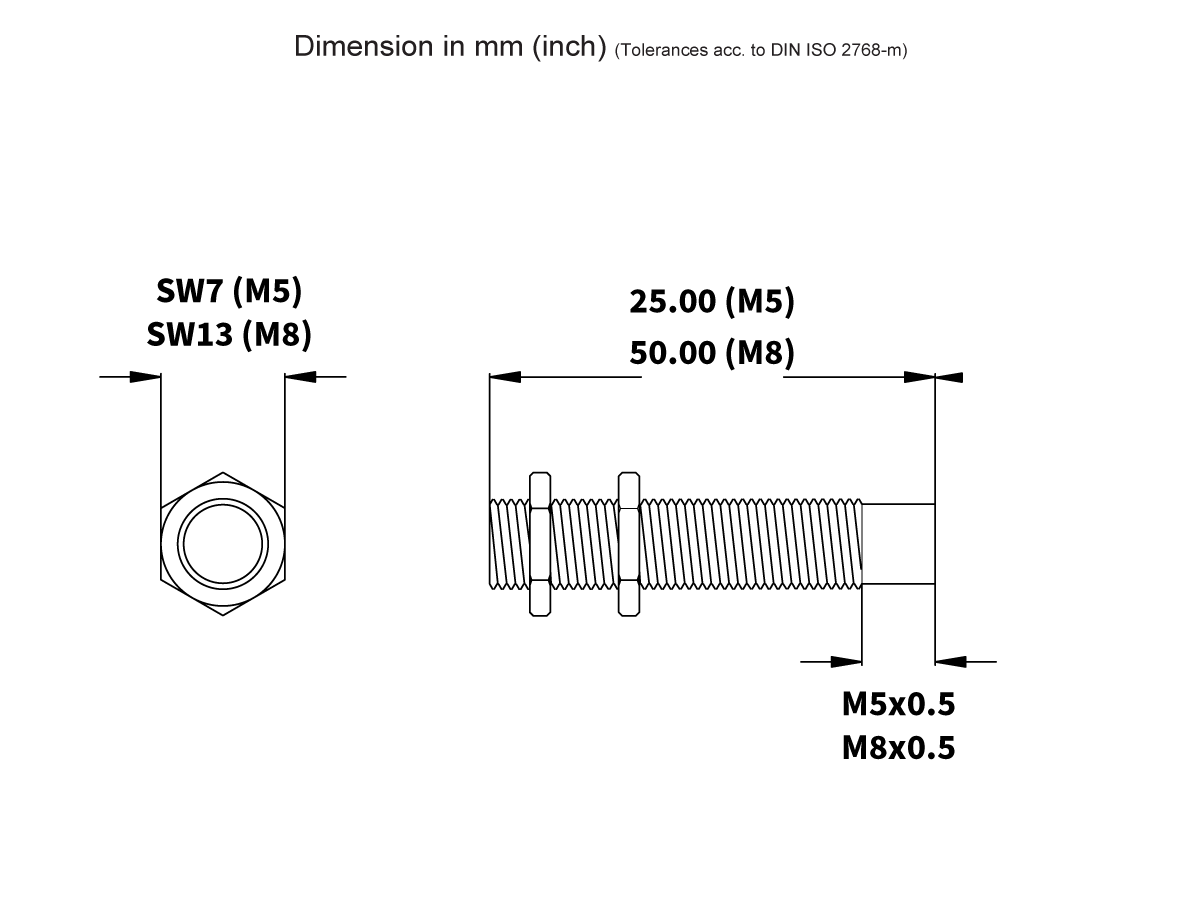

| Length mm (inches): | 25mm (0.984) |
| Diameter: | M5 x 0.5″ |
| Length mm (inches): | 50mm (1.968) |
| Diameter: | M8 x 0.5″ |
- Industrial Automation: Position and movement detection in machinery.
- Security Systems: Door and window monitoring.
- Medical Equipment: Non-contact sensing in sterile environments.
- Transportation: Monitoring of moving components in vehicles.
- Consumer Electronics: Integration into smart devices for motion sensing.
