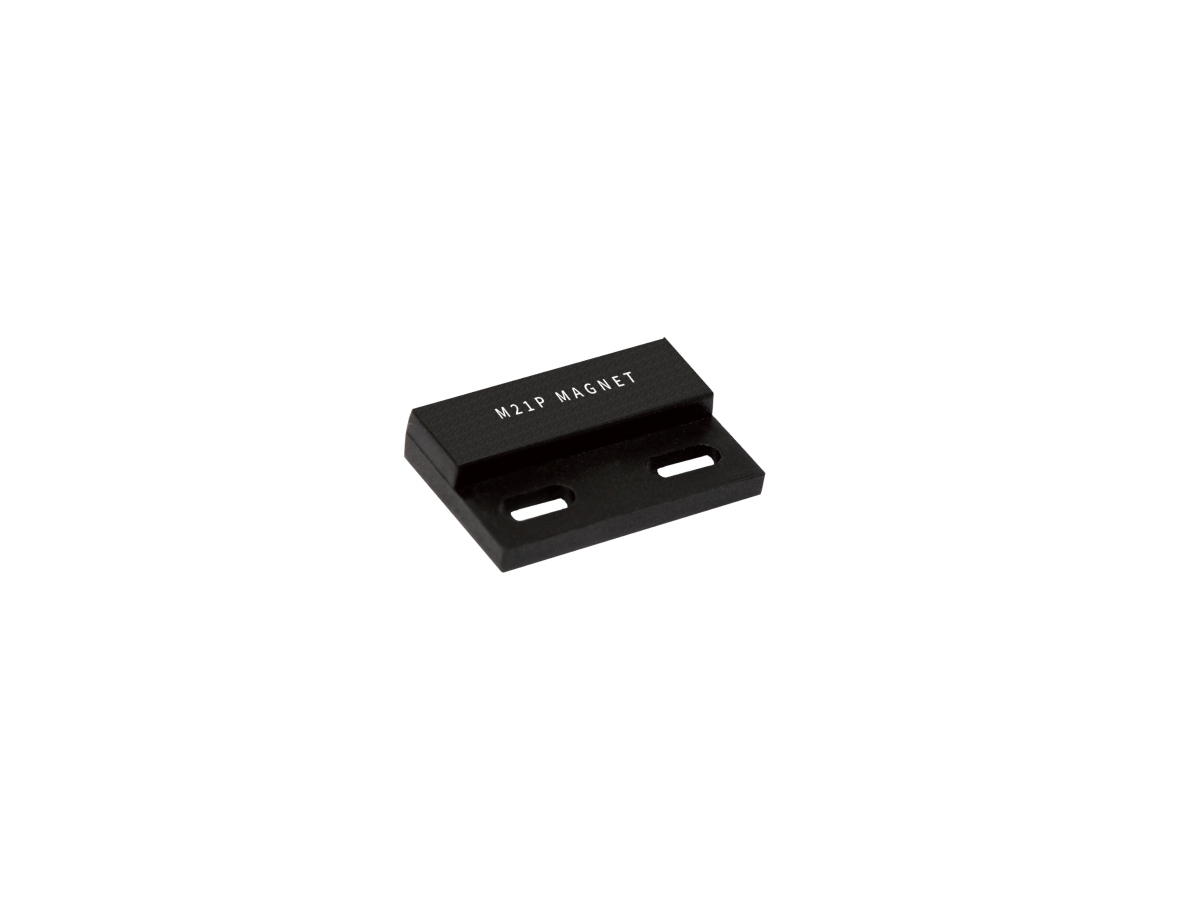

M21P Series Magnet
The M21P Series offers a versatile sensor magnet housed for reliable proximity sensing in industrial and commercial applications. Available in two mounting configurations, horizontal slotted screw holes (M21P/1) and vertical slotted screw holes (M21P/2), this series provides flexible installation options to suit various mechanical layouts.
Designed to pair seamlessly with the MK21P, MK21M, and MK21PR Series reed sensors (sold separately), the M21P magnet ensures precise and repeatable actuation. The sensor is mounted on a fixed surface, while the magnet is installed on a moving part, enabling accurate detection of position or motion.
Standards and Certifications
- Slotted screw-mount housing for flexible and secure installation
- Two configurations: M21P/1 – Horizontal slotted mounting holes, M21P/2 – Vertical slotted mounting holes
- Optimized for MK21P, MK21M, and MK21PR Series reed sensors
- Reliable proximity sensing for motion and position detection
- Ideal for industrial automation, security systems, and OEM designs

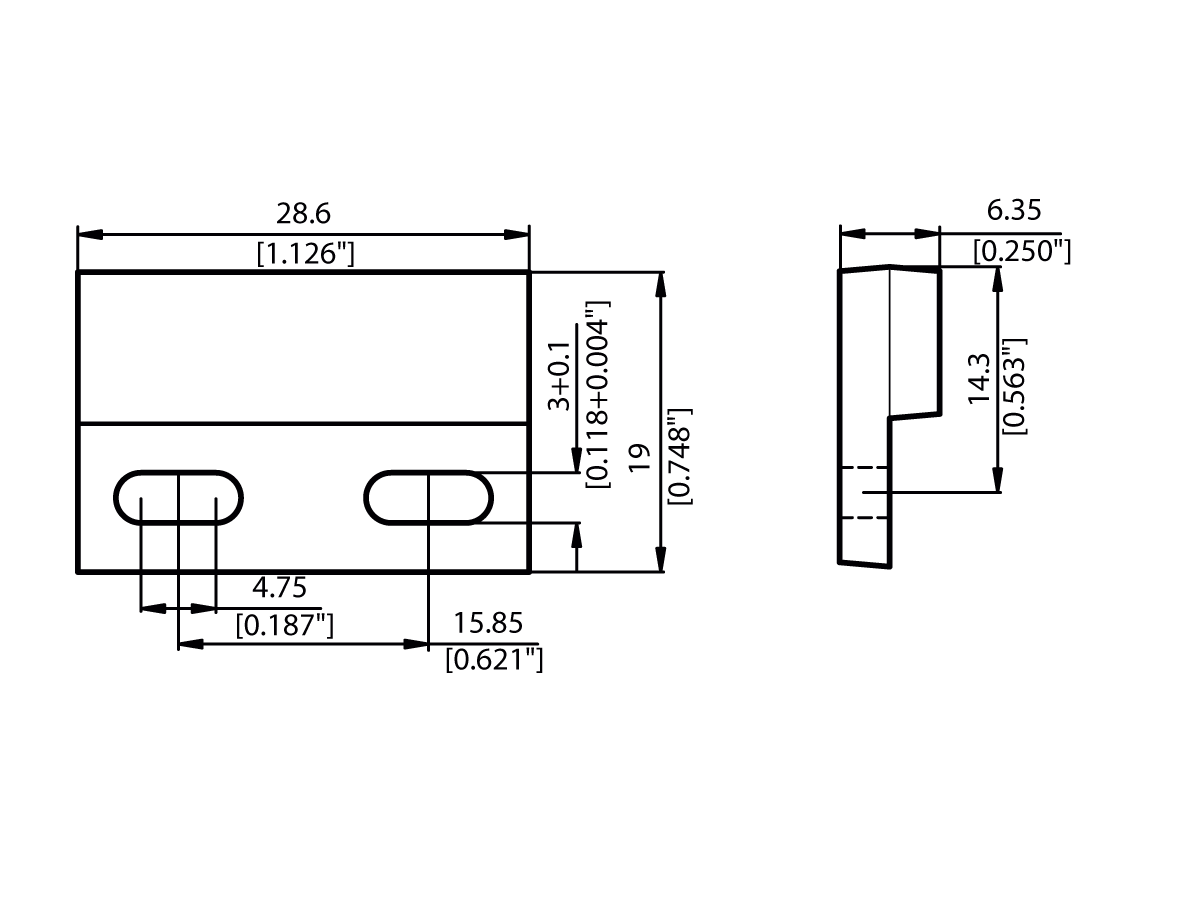

| Length: | 28.6 mm (1.125″) |
| Width: | 19.0 mm (0.748″) |
| Height: | 6.35 mm (0.25″) |
