PM Series Magnet

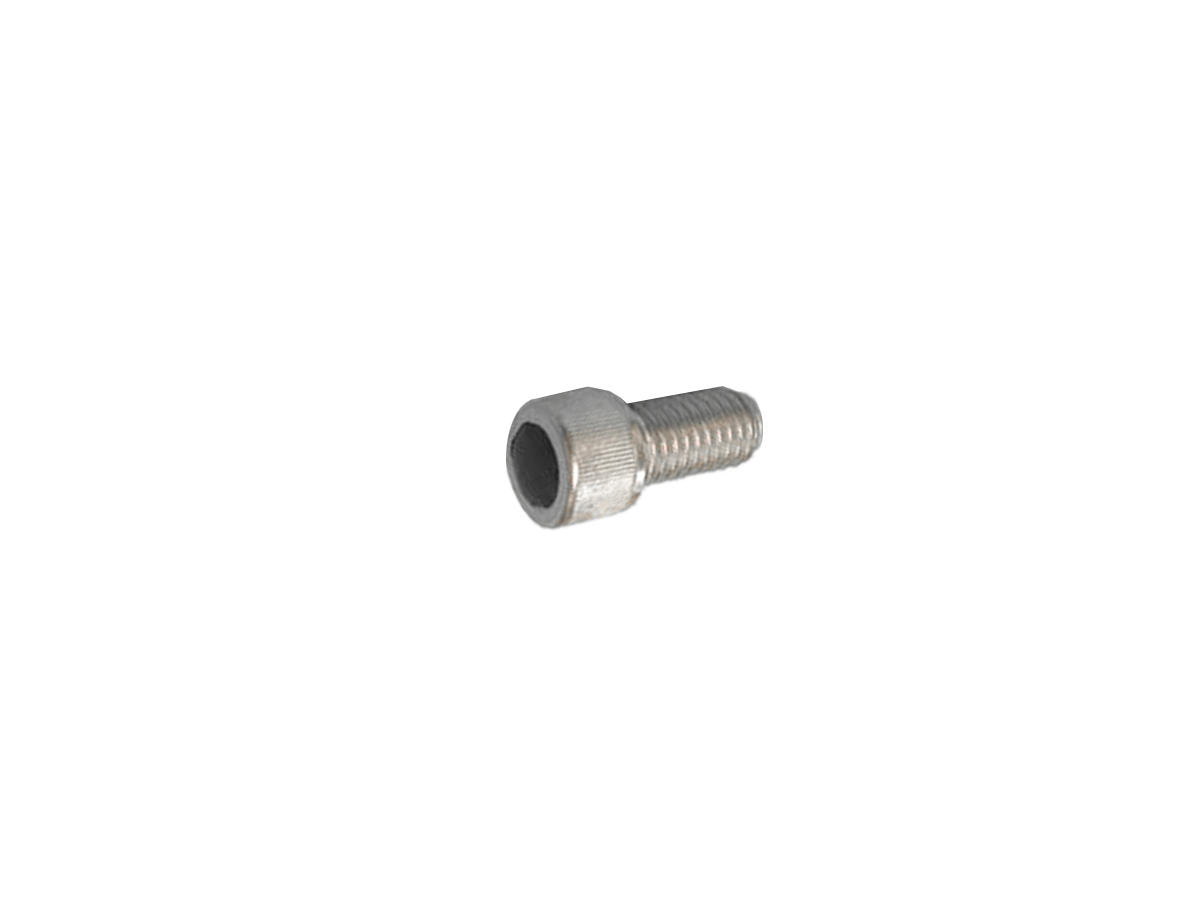

The PM series magnet is a high-strength Neodymium magnet securely housed within a stainless-steel socket cap screw, offering a rugged and compact solution for proximity sensing and magnetic triggering applications. Available in both North Pole and South Pole versions, this series provides flexibility for polarity-specific sensing requirements.
Design Notes:

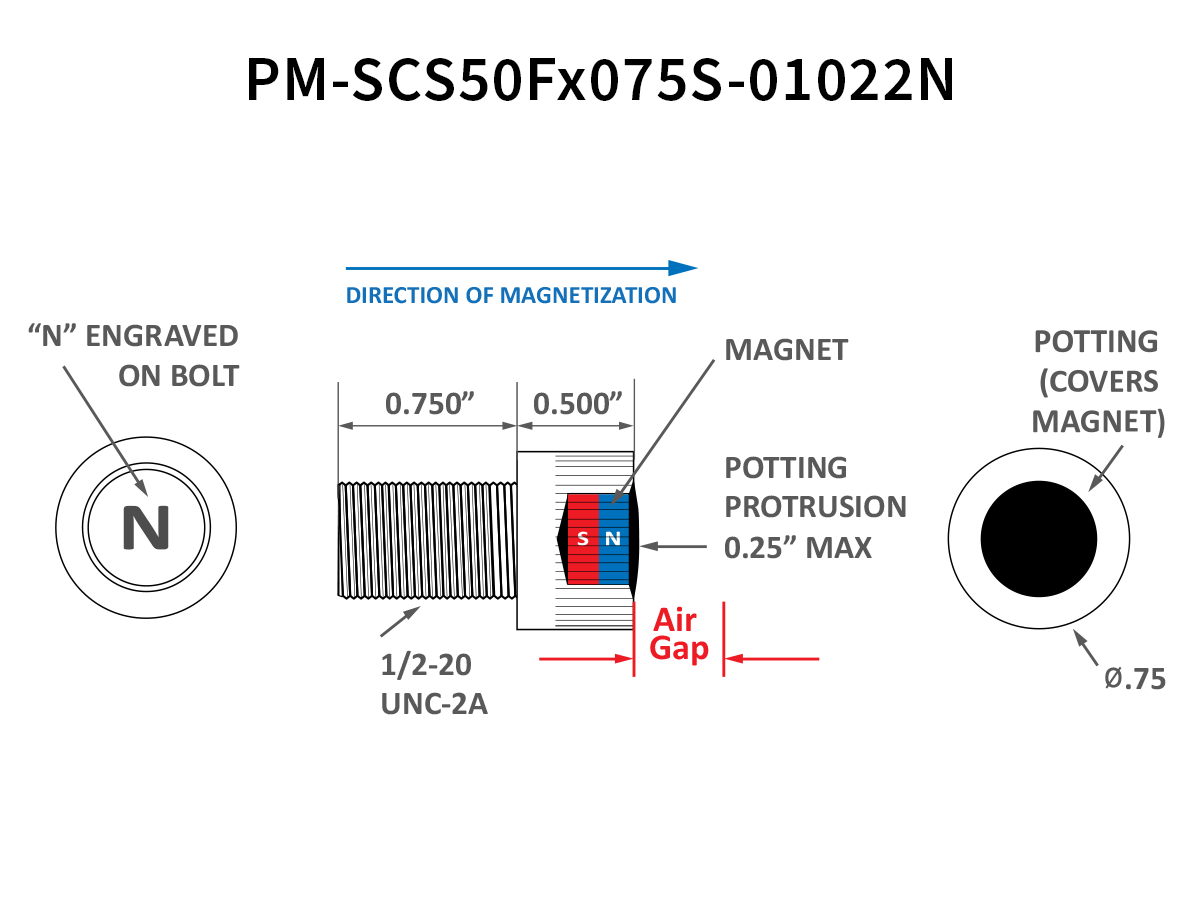

- Gap is from the face of the sensor to the surface of the magnet’s South Pole surface.
- Clear “S” engraving on South Pole variant or “N” for North Pole variant ensures quick visual identification during installation.
- Gaps are calculated and will vary slightly part to part.
- Use non-magnetic mounting hardware when installing.
- Refer to the sensor specifications sheet to determine operate gap range.
- The presence of ferrous metals near the magnet effects field strength at the sensor location.
- The presence of steel, magnets, or electromagnetic fields will affect the operate gap range.
Standards and Certifications
- Polarity Selection: Choose between North or South Pole versions to match sensor orientation or system requirements.
- Engraved Marking: Clear “S” engraving on South Pole variant or “N” for North Pole variant ensures quick visual identification during installation.
- Potted Construction: Magnet is securely embedded within the bolt casing for enhanced durability and environmental protection.
- Compact Integration: Ideal for applications requiring a threaded mounting solution with embedded magnetic functionality.
| Material Specs (25°C) | 300-01-022 NEO 35 SH |
| Processing Type | Sintered |
| BR Gauss | 11,700 Min. |
| HC Oersted | 11,000 Min. |
| HCI Oersted | 21,000 Min. |
| BH Max MGOE | 35 Typ. |
| BR Temp CO (%/°C) | -0.10 Typ. |
| Recoil Perm. (UREC) | 0.19% Typ. |
| TC Curie Temp (°C) | 310 Typ. |
| Max Operating Temp (°C) | 150 Typ. |
| Plating, NI (Mils) | 0.6 Typ. |
- Industrial Automation: Used in machinery for position sensing and magnetic actuation.
- Security Systems: Enables magnetic triggering in access control and alarm systems.
- Medical Equipment: Suitable for non-contact sensing in sterile environments.
- Automotive Systems: Integrates into vehicle components for proximity detection.
- Robotics: Provides precise magnetic reference points for motion control.
- Custom Assemblies: Ideal for OEMs requiring embedded magnets in mechanical fasteners.
