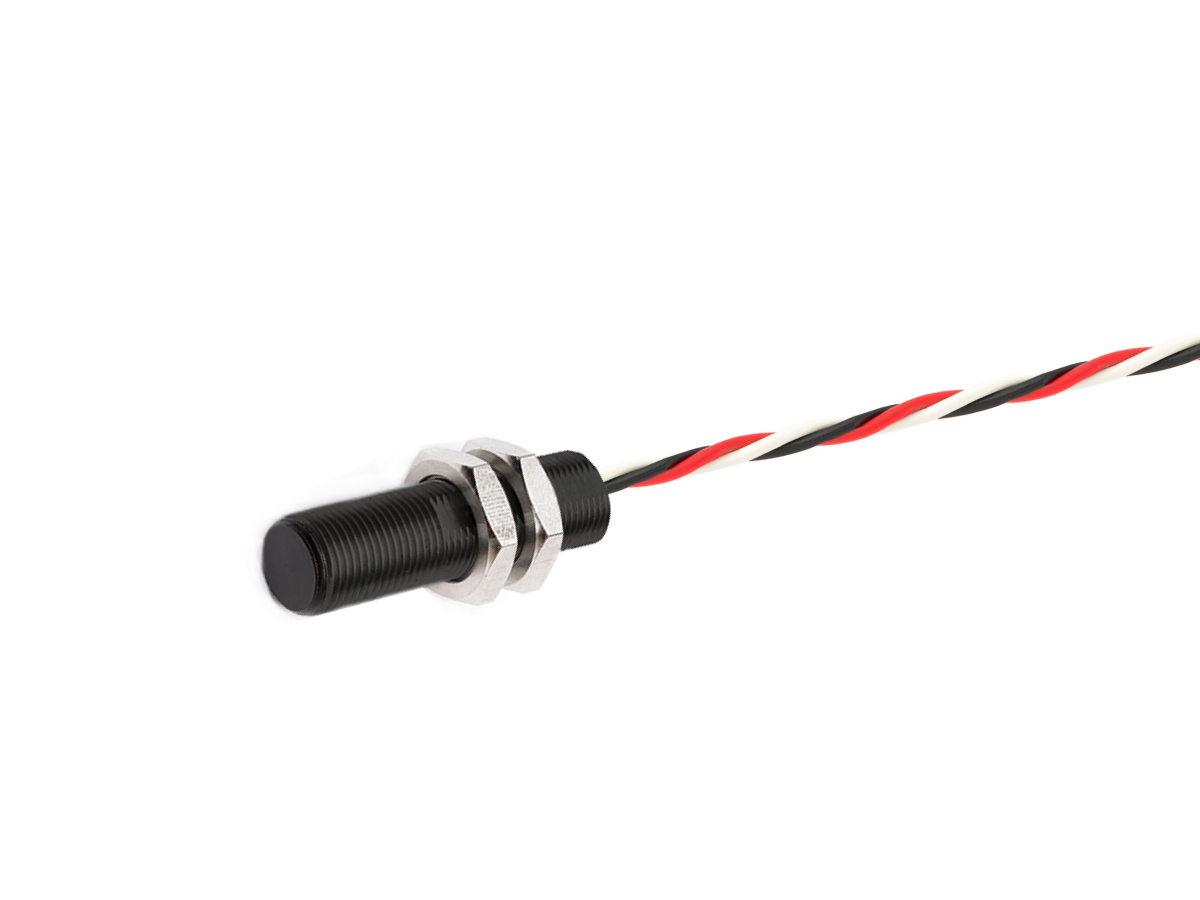

AH Series Analog Hall Sensor

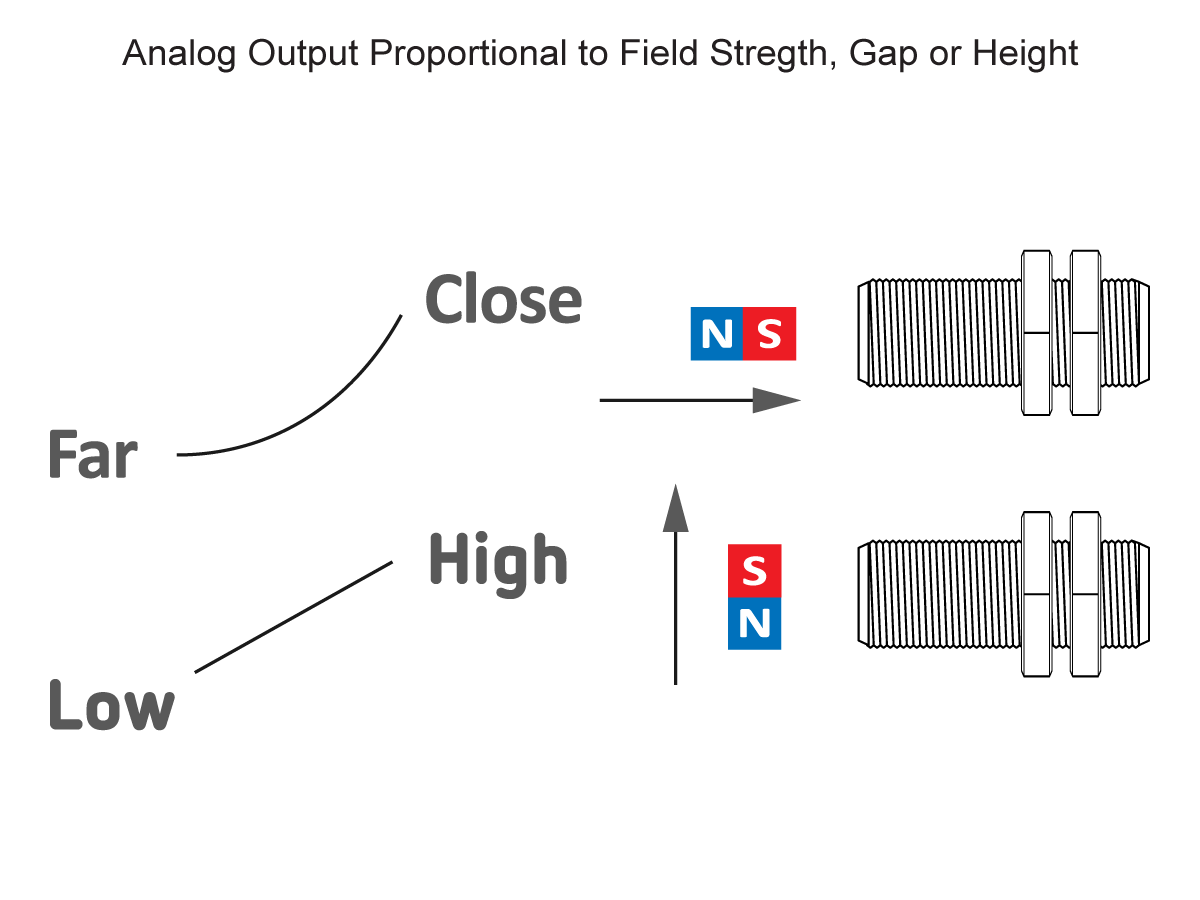

The AH series delivers high-accuracy analog proximity sensing using solid-state Hall effect technology. Designed for non-contact detection of magnetic targets, the AH series provides a smooth 0–5 V output signal proportional to the target’s distance, ideal for applications requiring precise position feedback.
Engineered for durability and stability, AH sensors operate reliably across wide temperature ranges and harsh environments. With flexible housing and connection options, they integrate easily into automotive, industrial, and agricultural systems.
Standards and Certifications
- Linear analog output (0–5 V) proportional to target proximity
- Non-contact, solid-state design for long-term reliability
- Temperature-stable performance in demanding environments
- Shock and vibration resistant for rugged applications
- Custom-programmable sensing ranges
- Compact and durable housings: molded, aluminum, stainless steel
- Flexible connection options: pigtails, free-end wires, integral connectors
- Ideal for position feedback in automotive, industrial, and agricultural systems
- Wide range of connector options with free end wires, cable harnesses with connectors, or integrated connectors
| Output Type | Analog 0 to 5 V |
| Actuator Material | Magnet |
| Frequency | 30 kHz |
| Supply Voltage, Vcc | 4.5 ~ 5.5V, 8 ~ 32V |
| Operating Temp. | -40 ~ 110 C |
| Package/Case | Stainless Steel Cylinder, Threaded Aluminum Cylinder, Threaded Plastic Cylinder, Threaded Plastic, Flange Mount |
| Termination Style | Integrated Connector, Cable Harness with Connector, Free End Wire |
- Industrial automotion for position sensing
- Positon of Linear drivers
- Resolve speed of industrial automation
