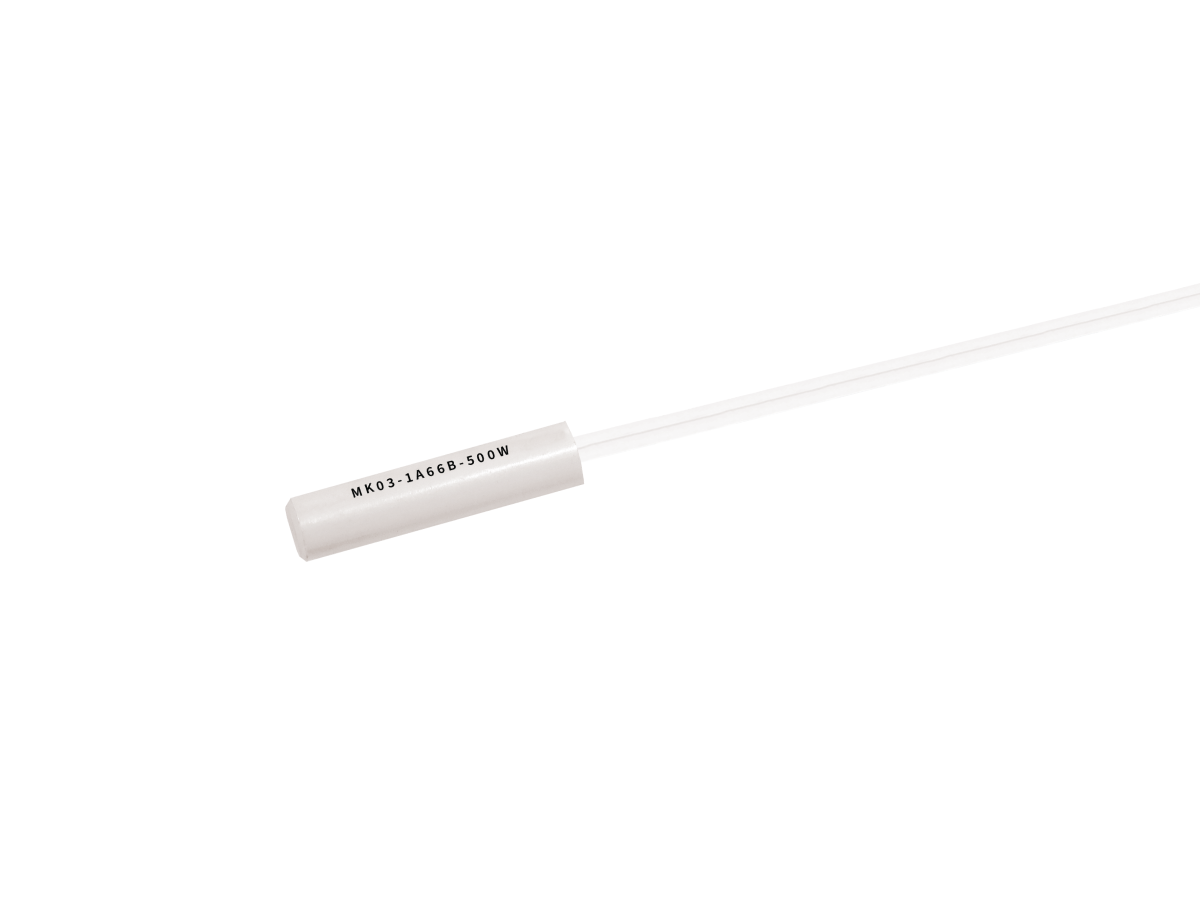

MK03 Series Reed Sensor
The MK03 Series Reed Sensor is a panel-mount solution housed in a compact cylindrical body with cable terminals, ideal for industrial, security, and appliance applications. With multiple contact configurations and customizable cable lengths, it offers flexibility and reliability for a wide range of sensing needs.
Technical Highlights:
- Mounting Style: Panel mount (5.75mm diameter)

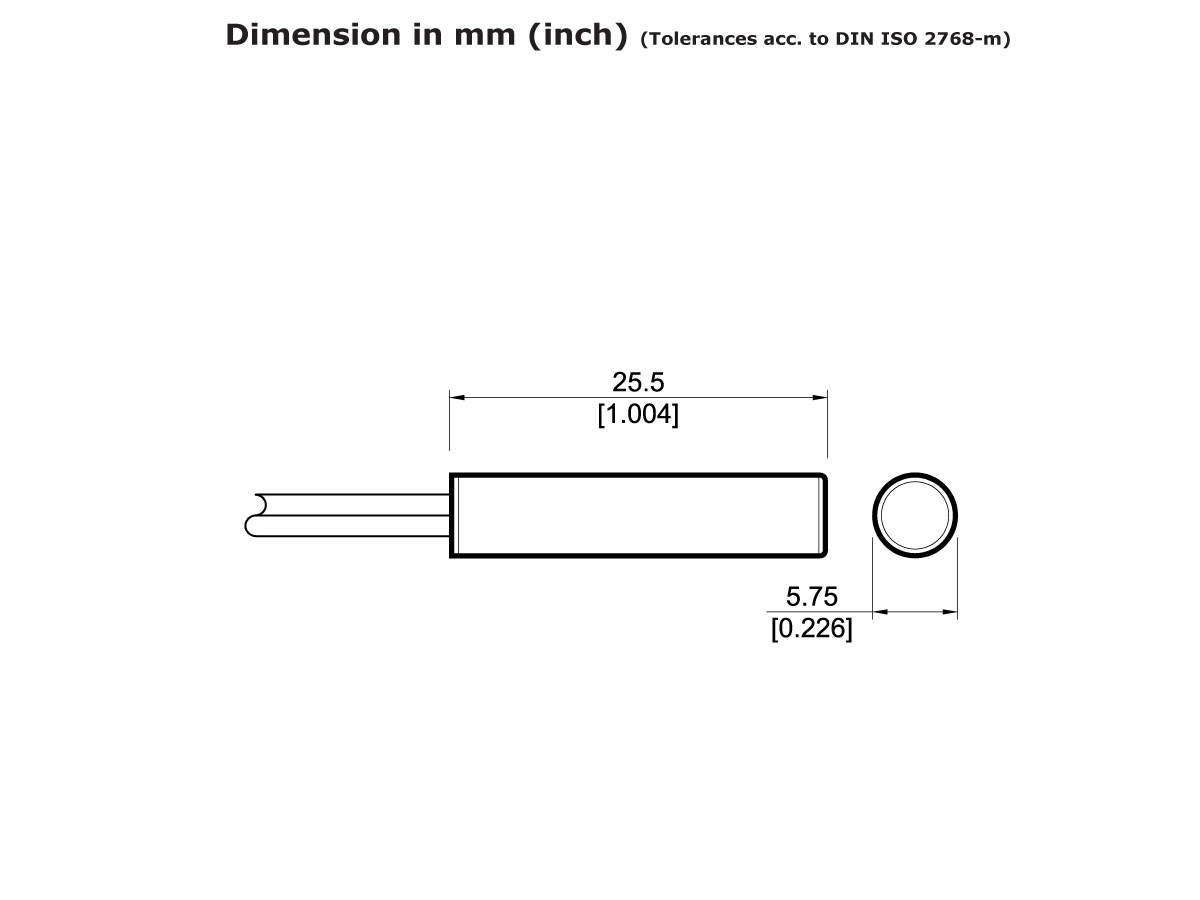

- Body Dimensions: 1.004″ L × 0.232″ Dia. (25.50mm × 5.90mm)
- Termination Style: Flat or round cable
- Switching Voltage: Up to 500V depending on model
- Cable Lengths: Available from 4.84″ (123mm) to 198.13″ (5032.4mm)
Standards and Certifications
- Multiple Contact Forms: Available in SPST Normally Open (1A), SPST Normally Closed (1B), and SPDT Changeover (1C) configurations.
- Wide Operating Range: Sensitivity from 10 to 60 AT for versatile magnetic actuation.
- High Power Capability: Rated up to 10W, 400VDC, and 0.5A for robust switching performance.
- Customizable Options: Internal switch type, cable length, and termination style can be tailored to application requirements.
- UL Approved: Certified for safety and quality compliance.
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/400VDC/0.5A |
- Industrial automation
- Security systems
- White goods and appliances
- Position and proximity sensing
