MK04R Series Reed Sensor

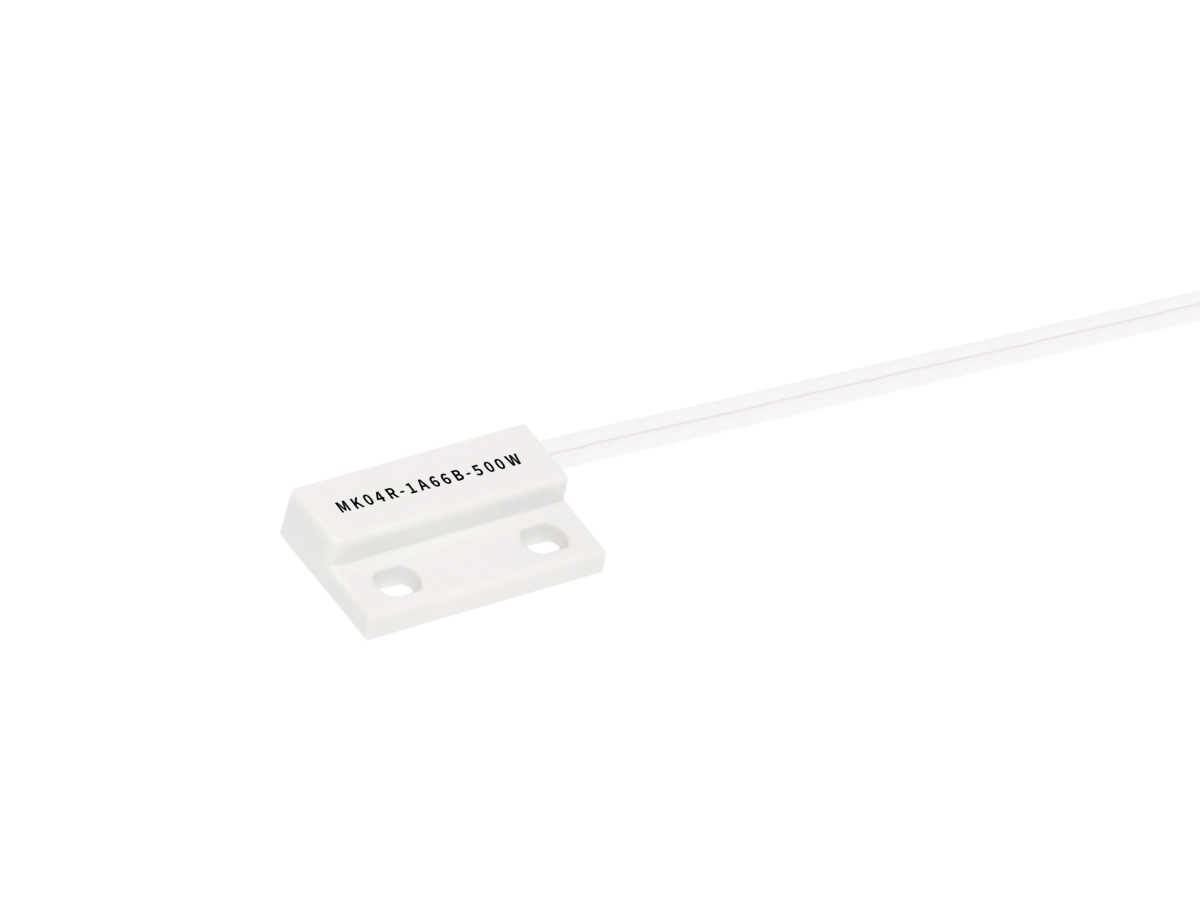

The MK04R Series is a cost-effective reed sensor designed with a right-side cable exit, making it ideal for applications where space constraints prevent the use of standard left-exit configurations. Its compact, rectangular housing features flat PVC wires that exit from the right side, available in a variety of standard and custom cable lengths and termination options to suit diverse installation needs.
The MK04R Series offers the same reliability and versatility as the MK04, with a cable exit configuration tailored for more constrained environments. It’s an ideal choice for OEMs and engineers seeking a compact, flexible sensing solution.
Standards and Certifications
- Right-side cable exit for space-sensitive designs
- Flat or round PVC cable options
- Multiple cable lengths and terminations available
- Screw flange mounting for secure and easy installation
- Customizable switch configurations to match application need
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/400VDC/0.5A |
- Industrial automation
- Security systems
- White goods
- Door & window contacts
- Pneumatic/hydraulic actuators
- Position indicators
