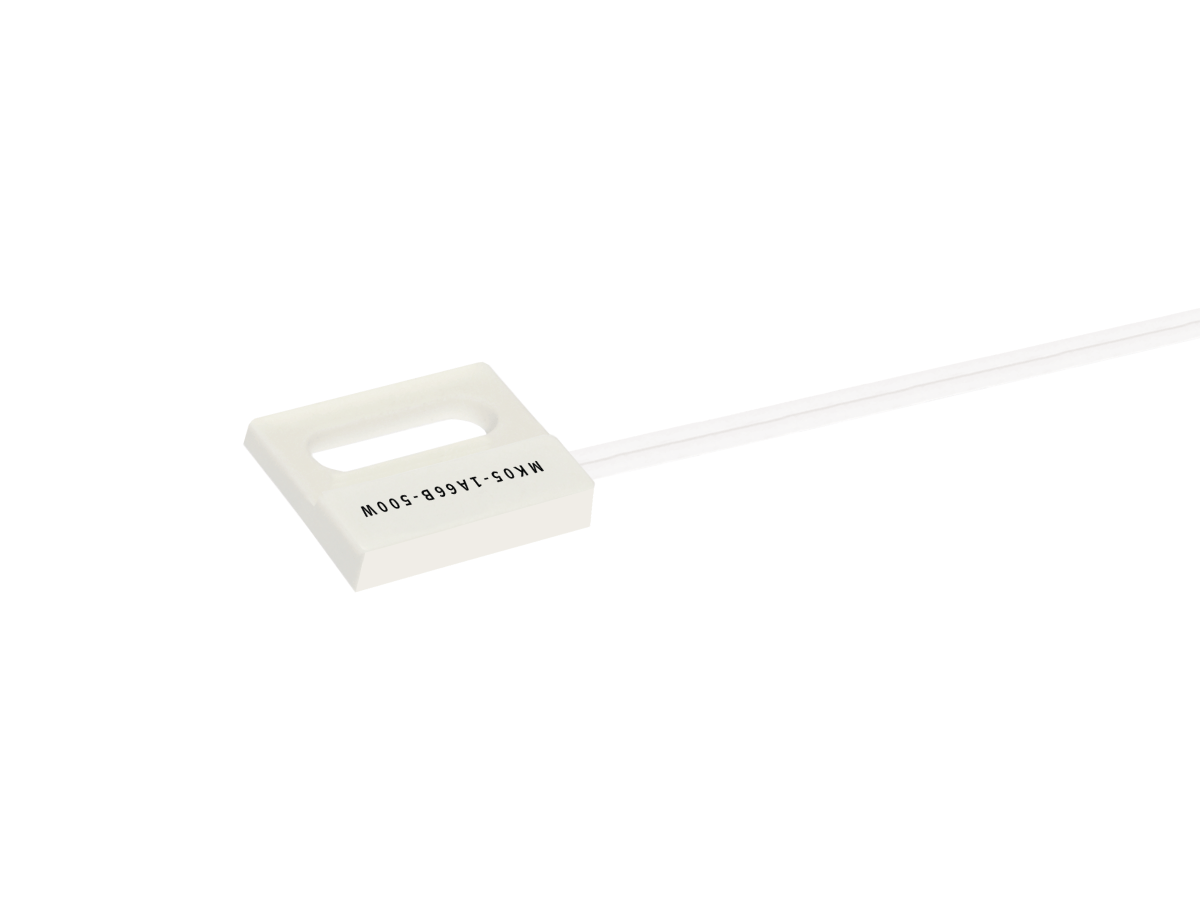

MK05 Series Reed Sensor
The MK05 Series Reed Sensor is a cost-effective, screw-fastened flange mount solution housed in a rectangular body with cable terminals. Designed for position, proximity, motion, level, and end-limit sensing, it offers reliable performance in industrial, security, and appliance applications. With multiple contact configurations and customizable cable options, the MK05 is built for versatility and durability.
Technical Highlights:
- Mounting Style: Screw flange

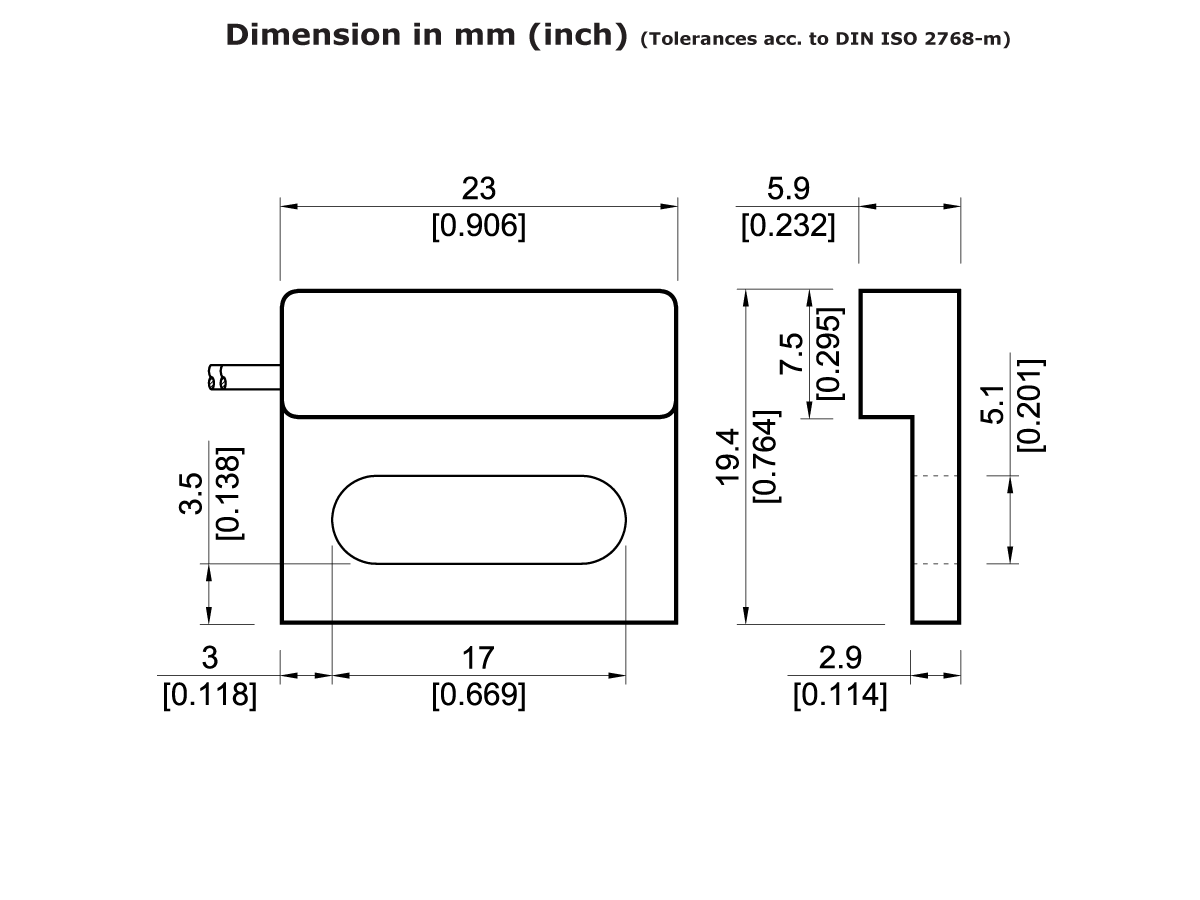

- Body Dimensions: 0.910″ L × 0.760″ W × 0.230″ H (23.00mm × 19.40mm × 5.90mm)
- Termination Style: Flat or round cable
- Switching Voltage: Up to 500V depending on model
- Cable Lengths: Available from 20.59″ (523mm) to 197.76″ (5023mm)
Standards and Certifications
- Multiple Contact Options: Available in SPST Normally Open (1A), SPST Normally Closed (1B), and SPDT Changeover (1C) configurations.
- Wide Sensitivity Range: Operate range from 10 to 60 AT for flexible magnetic actuation.
- High Power Handling: Rated up to 10W, 400VDC, and 0.5A for robust switching performance.
- Customizable Design: Choose from various internal switch types, cable lengths (up to 197.76″), and termination styles (flat or round cable).
- UL Certified: Ensures compliance with global safety and quality standards.
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/400VDC/0.5A |
- Industrial automation
- Security systems
- White goods and appliances
- Motion, level, and end-limit detection
