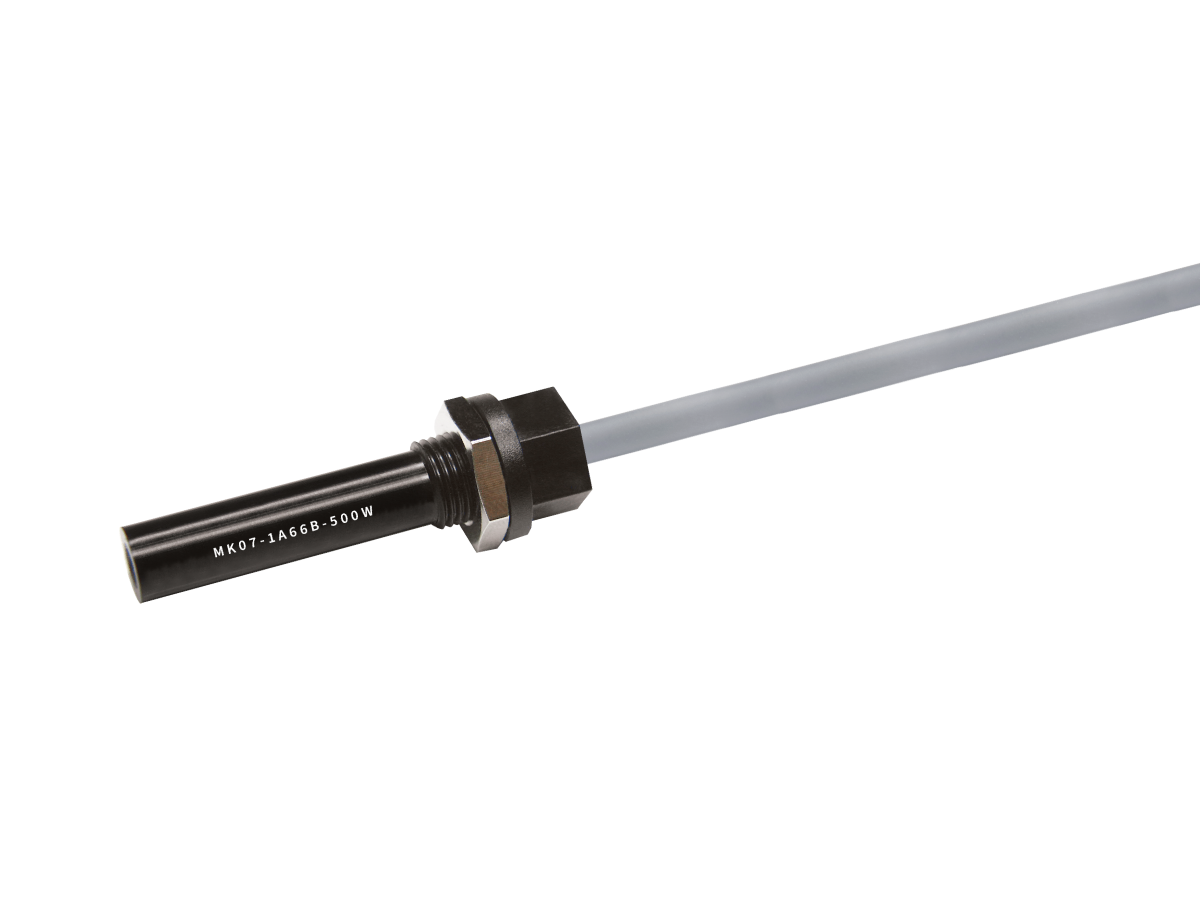

MK07 Series Reed Sensor
The MK07 Series is a robust, cylindrically housed reed sensor designed for adjustable thread mounting, offering flexible installation and precise sensing alignment. Its M8 plastic housing and cable terminal design make it ideal for applications requiring position, level, or end-limit detection in industrial, appliance, and security environments.
The MK07 Series combines precision sensing with installation flexibility, making it a reliable choice for OEMs and engineers working in dynamic or space-constrained environments.
Standards and Certifications
- Threaded M8 mount for adjustable positioning
- Cylindrical plastic housing with cable terminals
- Customizable cable types, lengths, and terminations
- UL-approved configurations available
- Convenient sensing adjustment for dynamic environments
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/200VDC/0.5A |
- Door and window monitoring
- Liquid level sensing (with magnetic float)
- Position and limit switching
- White goods and appliances
- Industrial automation
- Security systems
