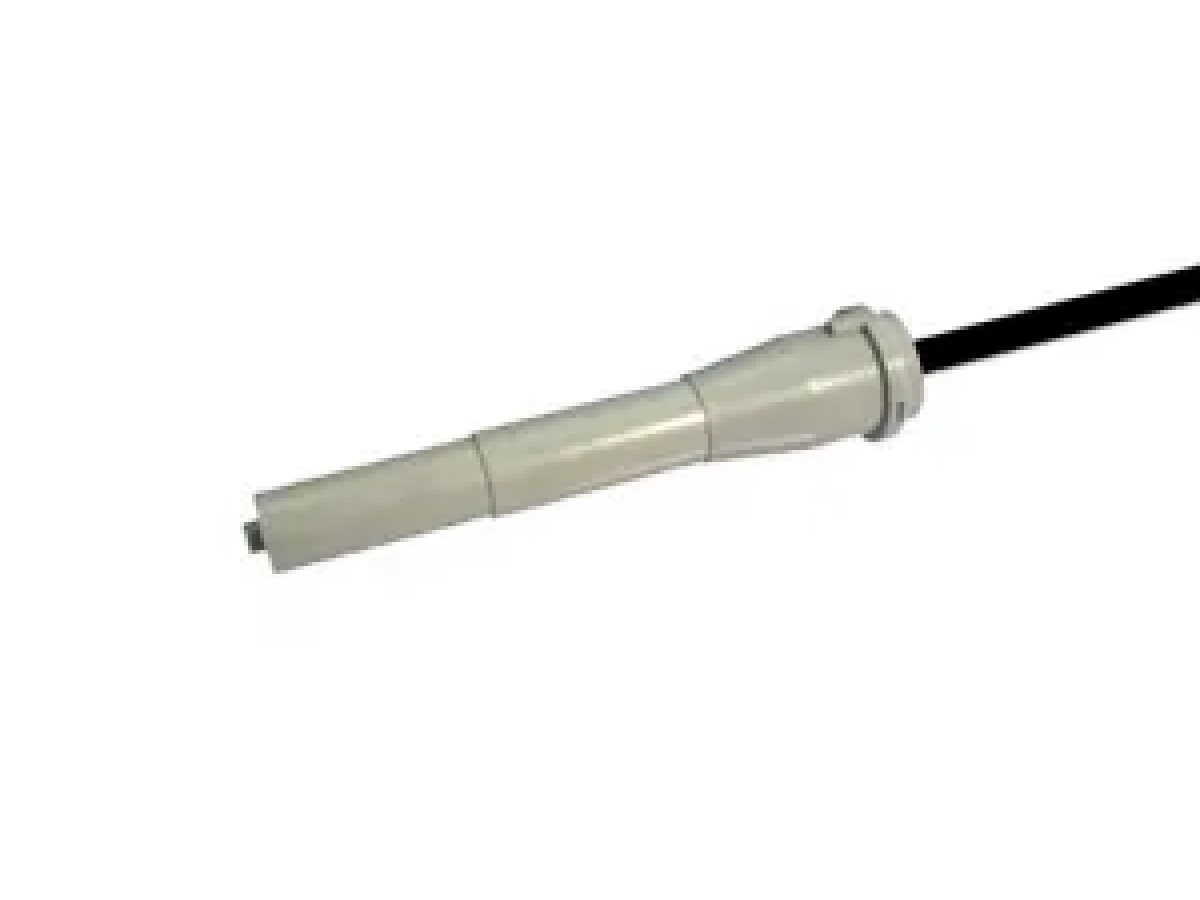

MK08 Series Reed Sensor
The MK08 Series Reed Sensor is a robust, intrinsically safe solution designed for demanding industrial applications. Housed in a cylindrical panel-mount casing with oil-resistant cable terminals, it offers flexible customization options including internal switch type, cable length, and termination style.
Certified for use in hazardous and potentially explosive environments, the MK08 Series meets ATEX and IECEx standards, ensuring safe and reliable operation from -40°C to +130°C.
Compliance & Standards
- IEC/EN 60079-0, IEC/EN 60079-18
- IEC/EN 61241-0, IEC/EN 61241-1
- Type of protection: II 2 GD Ex mb II T6 / Ex tD A21 IP65 T85°C
Standards and Certifications
- ATEX & IECEx Certified: Approved for use in explosive atmospheres (KEMA 00ATEX1112 X, IECEx KEM09.0006 X)
- Wide Operating Range: 10–60 AT
- High Power Handling: Up to 60W / 400VDC / 1A
- Temperature Resilience: Operates in extreme conditions from -40°C to +130°C
- Flexible Configurations: Available with Normally Open (1A) or Normally Closed (1B) contact forms
- Durable Construction: Oil-resistant wiring and IP65-rated housing
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.) |
| Operating Range | 10-60 AT |
| Rated Power Max. | 60W/400VDC/1A |
- Industrial automation
- Intrinsically safe circuits
- Mining operations
- Hazardous location monitoring
