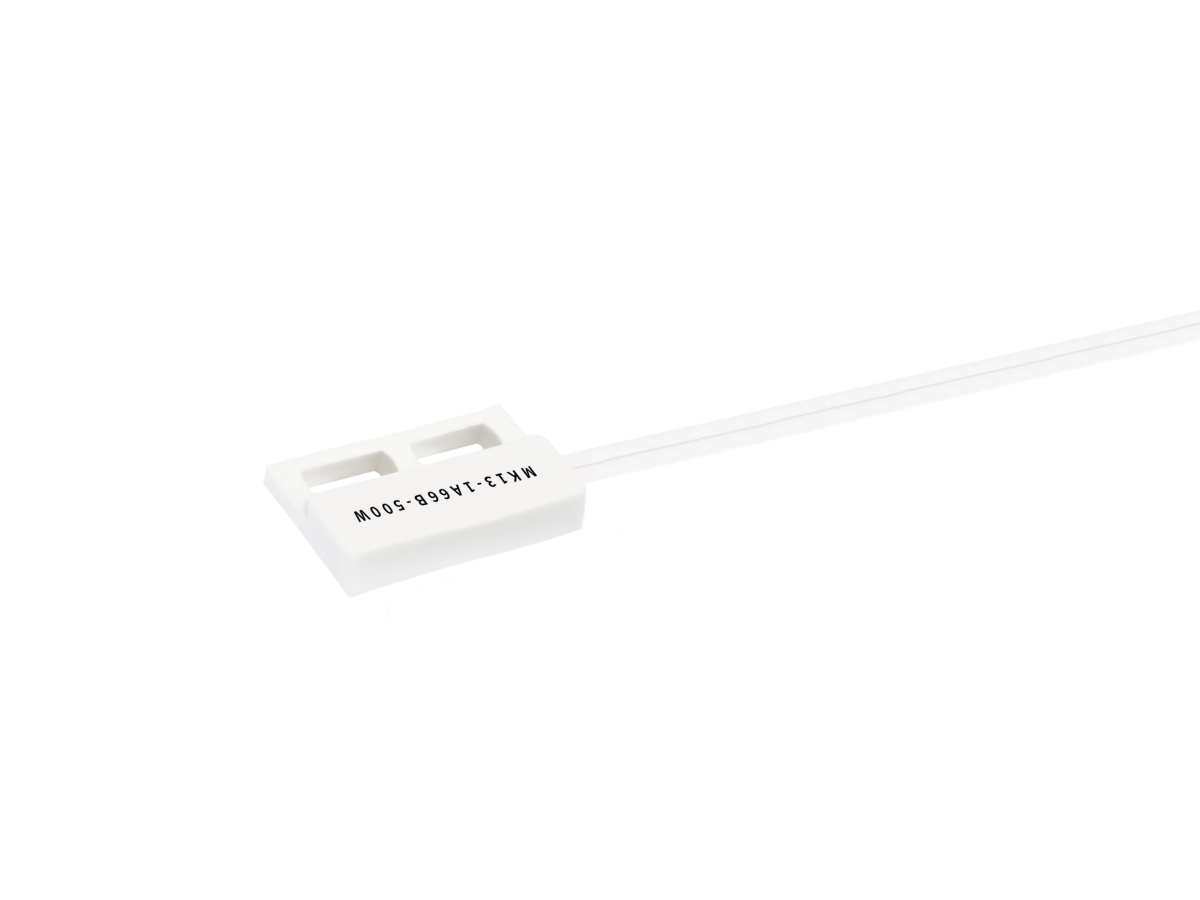

MK13 Series Reed Sensor
The MK13 Series is a compact, rectangular reed sensor designed for screw-fastened flange mounting, offering reliable magnetic sensing in a wide range of applications. Its flat housing and cable terminal design make it ideal for OEMs seeking a cost-effective solution for position, proximity, motion, level, and end-limit detection.
The MK13 Series offers best-value performance in a compact, flange-mount design. It’s a trusted solution for engineers and designers looking for flexible, reliable magnetic sensing across a broad range of industries.
Standards and Certifications
- Screw flange mount for secure installation
- Rectangular housing with flat or round cable terminals
- Customizable switch type, cable length, and termination
- UL-approved configurations available
- Compact footprint for space-constrained designs
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/400VDC/0.5A |
- Industrial automation
- Security systems
- White goods and appliances
- Hydraulic and pneumatic actuators
- Door and flap control
- Position and motion sensing
