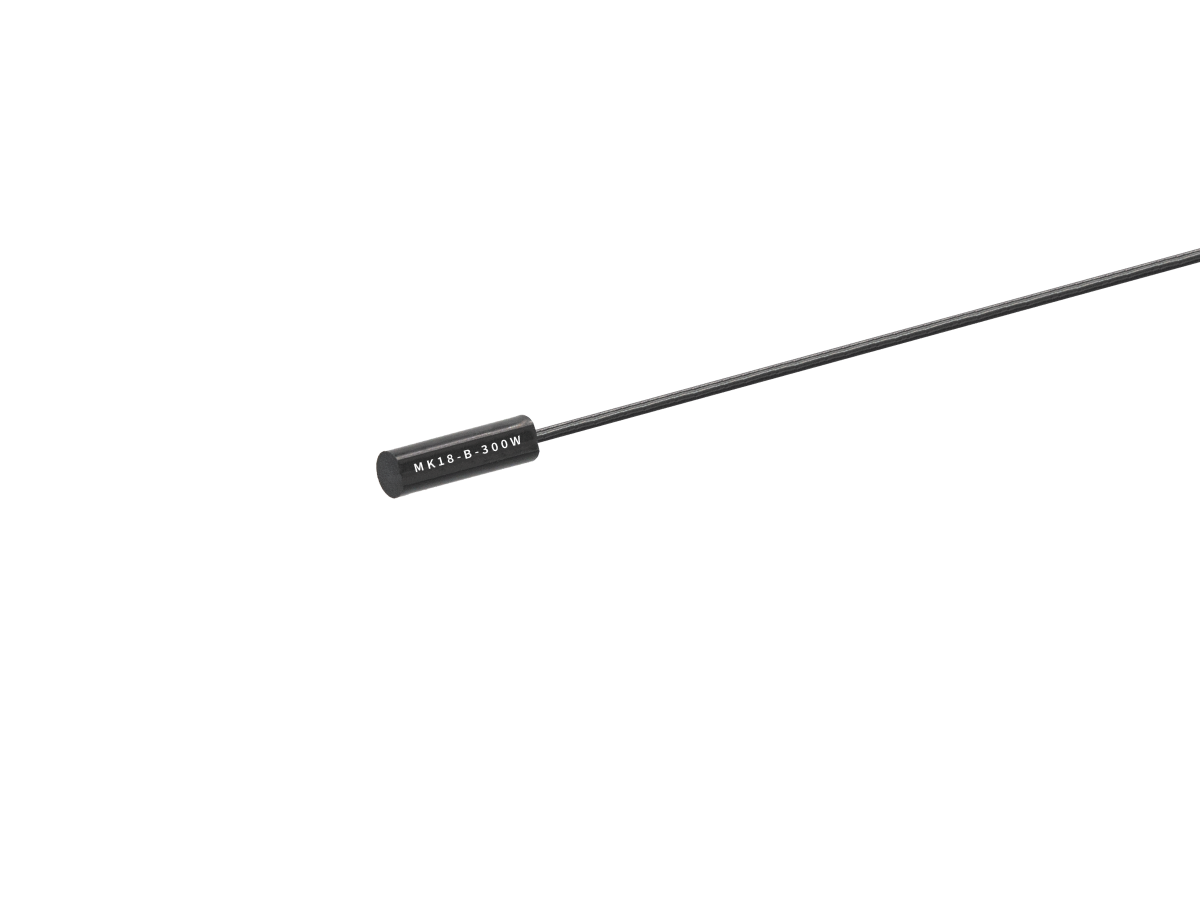

MK18 Series Reed Sensor
The MK18 Series is a panel-mount reed sensor housed in a 5.0mm diameter cylindrical body, designed for extended cable lengths and flexible installation in industrial, appliance, and security applications. With a wide range of magnetic sensitivities and cable configurations, it’s ideal for position, level, and end-limit sensing, especially where longer reach is required.
The MK18 Series offers extended sensing reach and robust performance in a compact, panel-mount design. It’s a reliable solution for OEMs and engineers working in space-constrained or long-distance sensing environments.
Standards and Certifications

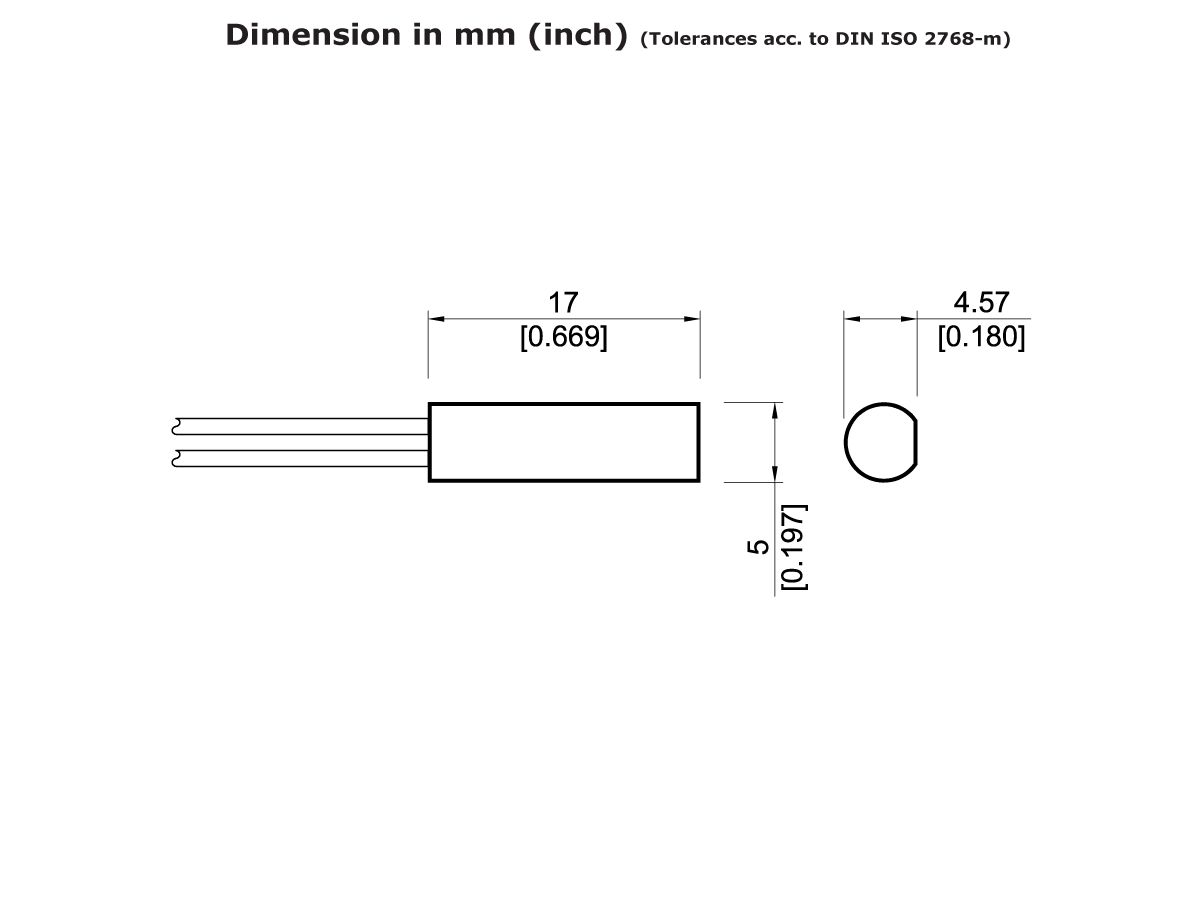

- Cylindrical 5.0mm housing for panel mounting
- Extended cable lengths up to 1500mm+
- Multiple magnetic sensitivity ranges available
- UL-approved configurations
- Customizable switch type, cable length, and termination
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/200VDC/0.5A |
- Door and window monitoring
- Water level detection (with magnetic floats)
- Position and proximity sensing
- White goods and household appliances
- Industrial automation
- Security systems
