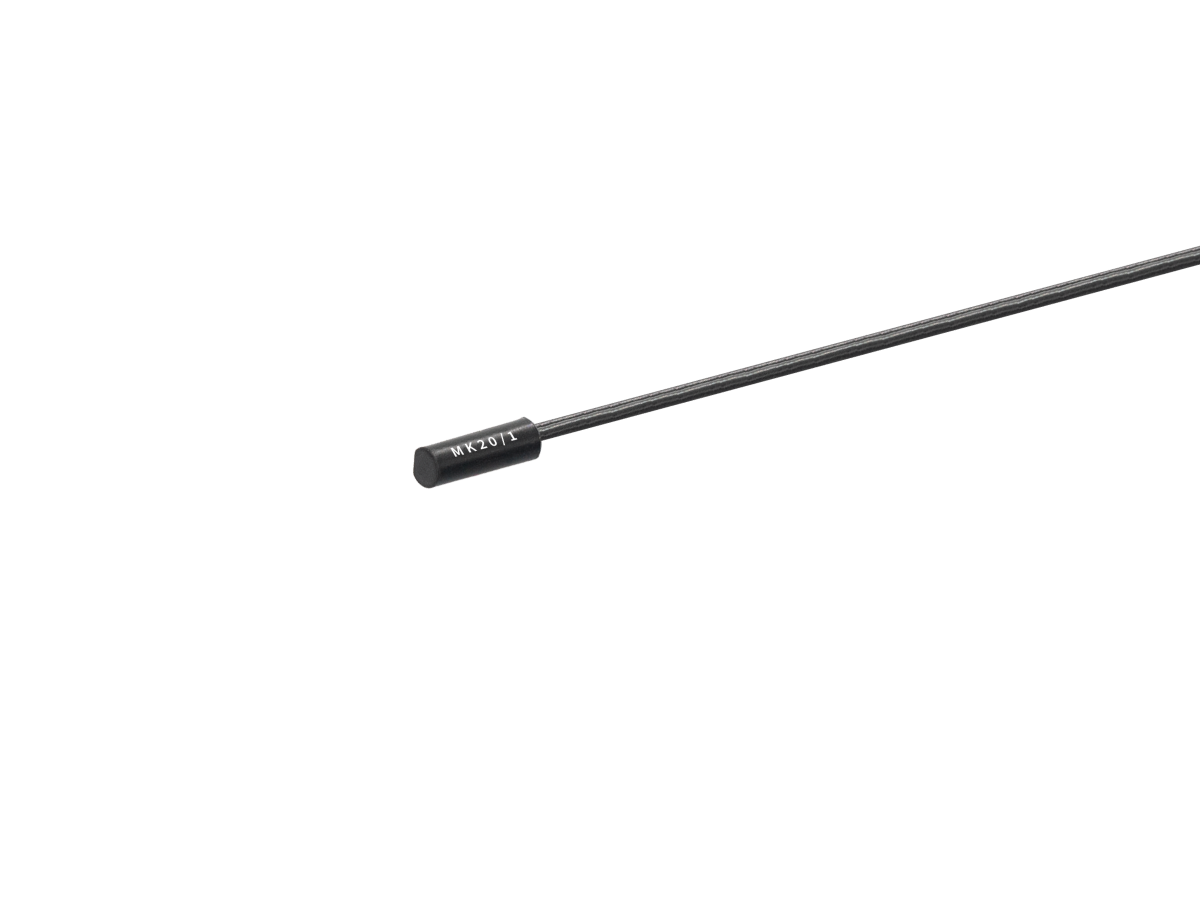

MK20/1 Series Reed Sensor
The MK20/1 Series is a miniature cylindrical reed sensor designed for panel mounting in compact and space-constrained applications. With a 3.0mm diameter housing, it offers reliable magnetic sensing for industrial, security, and appliance environments. Its flexible cable configurations and magnetic sensitivity options make it ideal for position, level, and end-limit detection.
The MK20/1 Series delivers precise sensing performance in a miniature form factor, making it a trusted solution for OEMs and engineers designing in space-limited or low-voltage environments.
Standards and Certifications

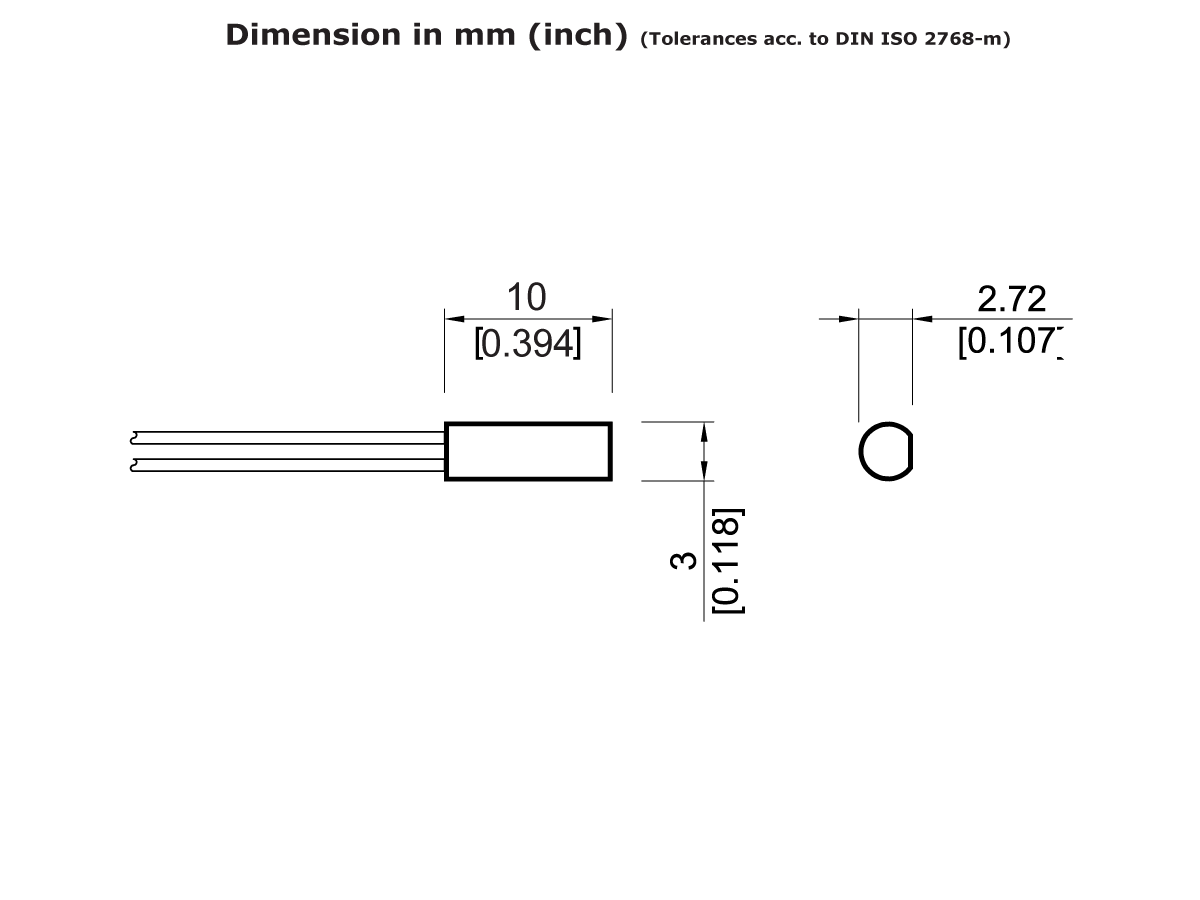

- Miniature 3.0mm cylindrical housing for tight spaces
- Panel-mount design with cable terminals
- Multiple cable lengths, terminations, and sensitivities available
- UL-approved configurations
- Compact footprint for discreet integration
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 10-60 AT |
| Rated Power Max. | 10W/30VDC/0.25A |
- Door and window monitoring
- Water level detection (with magnetic floats)
- Position and proximity sensing
- White goods and household appliances
- Security systems
- Compact industrial devices
