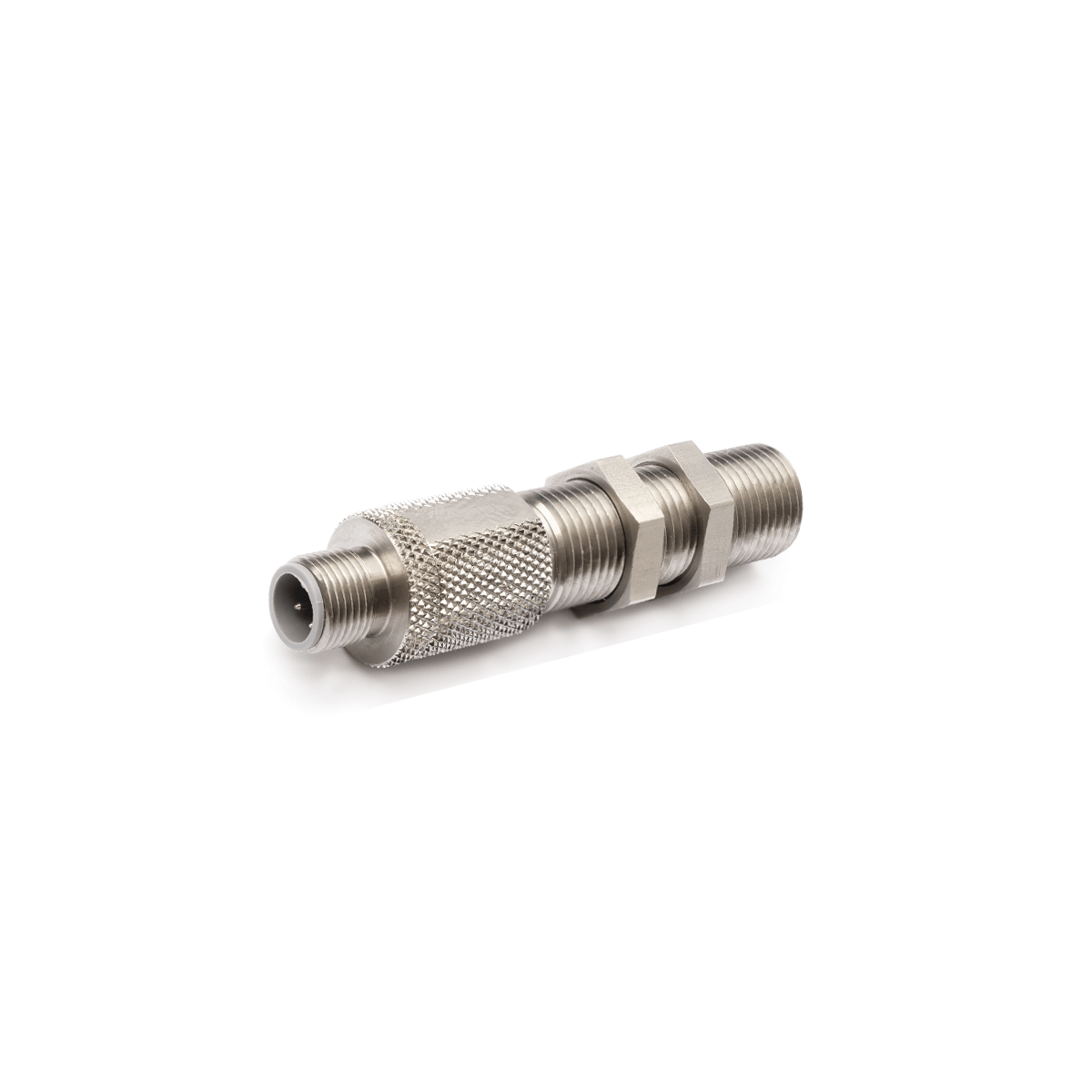

DQ Series Quadrature Gear Tooth Speed and Direction Sensor
The DQ series delivers precise, non-contact speed and direction sensing for ferrous gear targets using Hall effect technology. With two digital outputs positioned 90° out of phase, these quadrature sensors provide reliable speed and rotational direction feedback, with true zero-speed or near-zero-speed options available for demanding motion-control applications.
Designed to detect gear teeth and other ferrous targets, the DQ series supports gears up to 32 pitch and provides two outputs per tooth for accurate monitoring of rotating equipment. Its solid-state, temperature-stable construction offers shock and vibration resistance, harsh-environment durability, and no wearing parts for dependable long-term performance.
The DQ series is available in a wide range of housings, mounting styles, electrical outputs, and connection configurations, including aluminum, stainless steel, and plastic housings; threaded and flange mounts; and NPN, PNP, open-drain, open-collector, and EMI-protected options. This flexibility makes the series well suited for applications such as vehicle and wheel speed sensing, transmission monitoring, agricultural equipment, conveyors, automation equipment, engine RPM measurement, and cam and crankshaft timing.tors.
Standards and Certifications

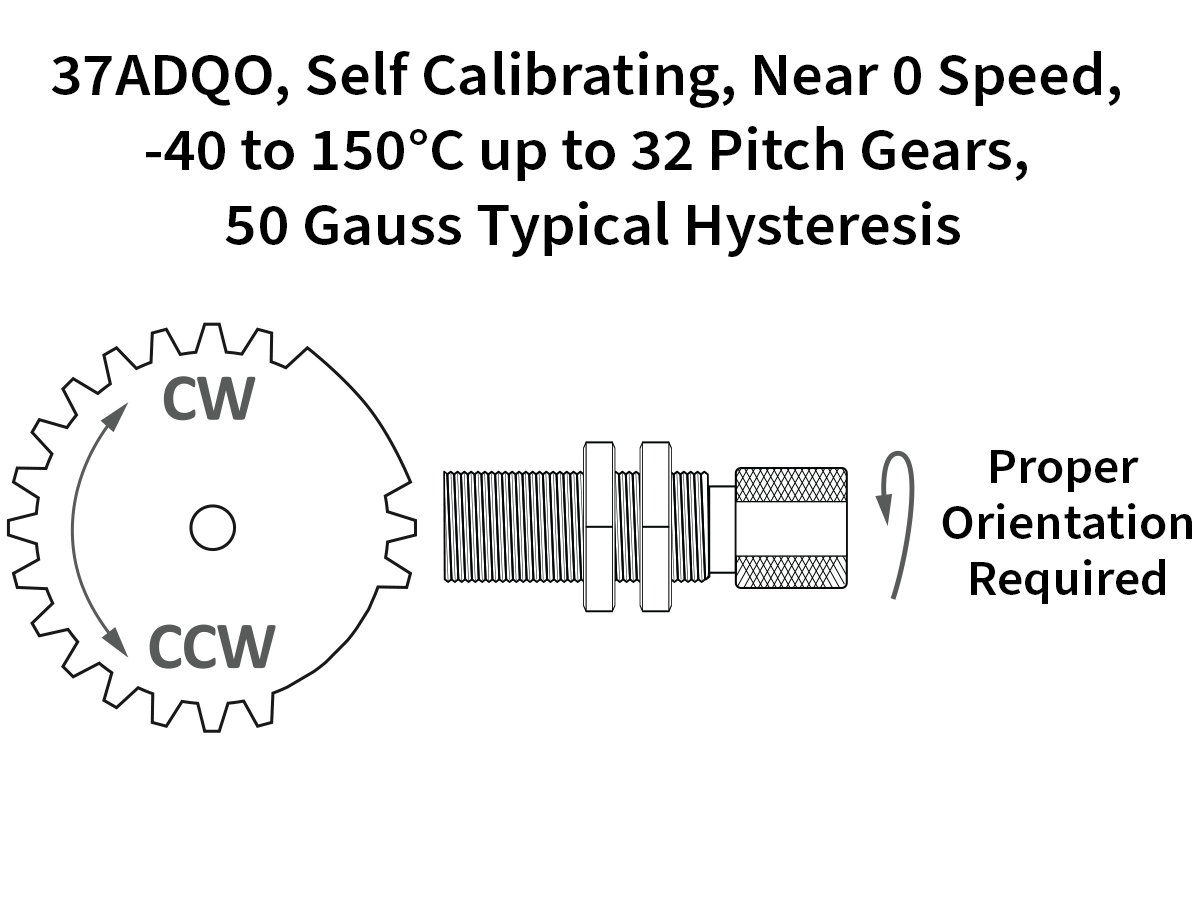

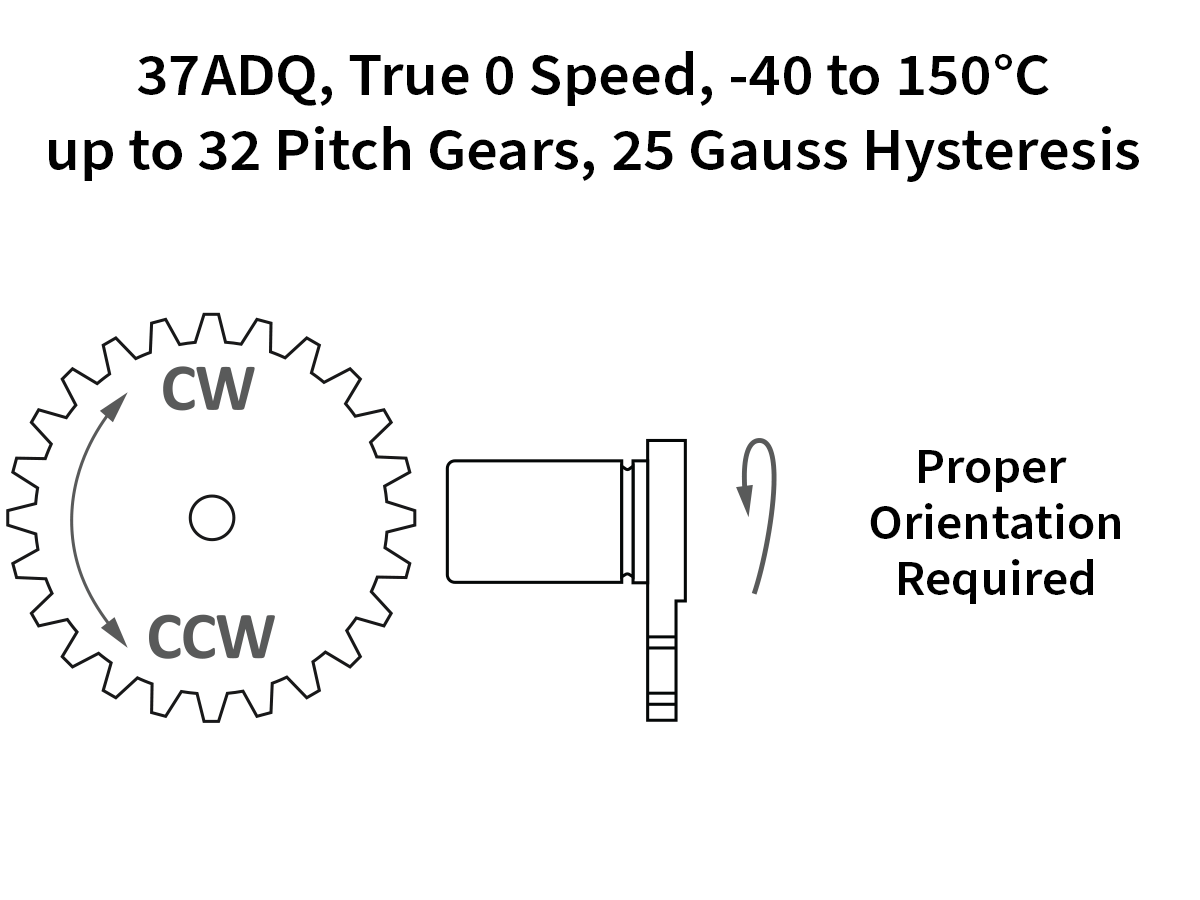

- True zero and near-zero speed detection for precise low-speed monitoring

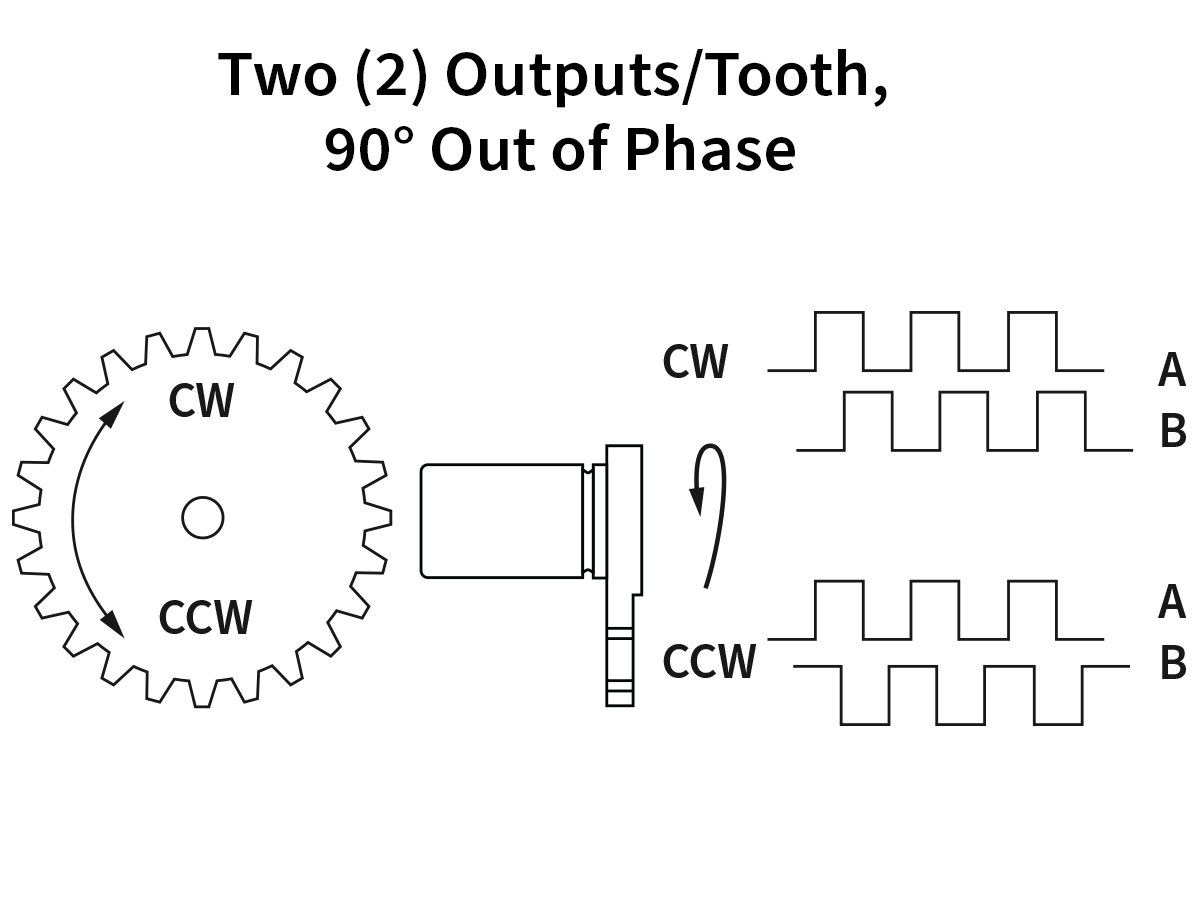

- Quadrature sensing with two digital outputs, 90° out of phase, for speed and direction detection
- Solid-state Hall effect design with no moving parts for long-term reliability
- Detects ferrous gear targets up to 32 pitch for a wide range of sensing applications
- Two outputs per gear tooth for accurate speed, direction, and position feedback
- Temperature-stable, shock- and vibration-resistant performance for harsh environments
- Multiple electrical configurations including NPN, PNP, open collector, open drain, and EMI-protected options
- Flexible threaded and flange mounting options in aluminum, stainless steel, and plastic housings
- Multiple connector, cable, and wire configurations for flexible system integration

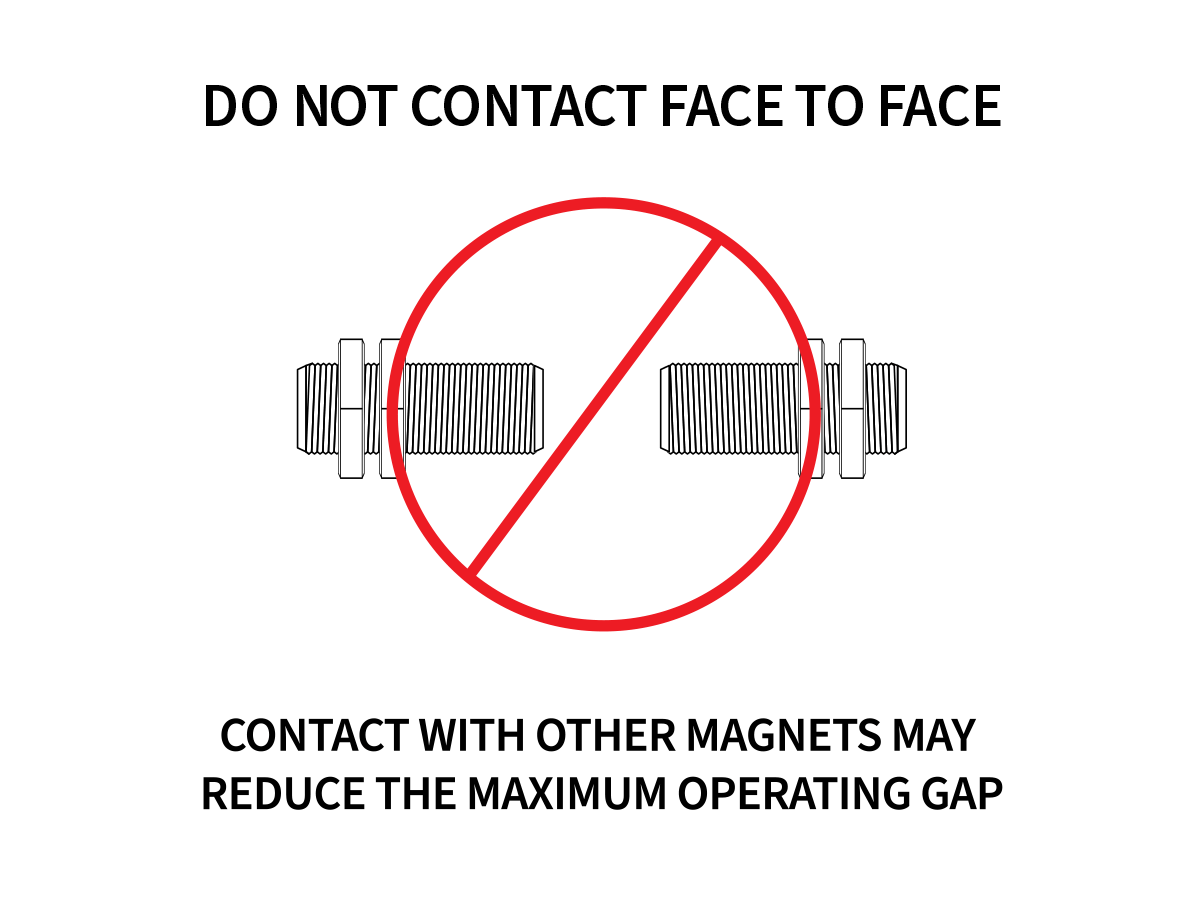

- Customizable housing, electrical, connection, and air-gap options to meet unique application requirements
| Output Type | PNP, NPN, Open Collector, Open Drain, EMI-Protected |
| Actuator Material | Ferrous Metal, Ferrous Gear |
| Frequency | 15 kHz |
| Supply Voltage, Vcc | 4.1 ~ 32V, depending on electrical configuration |
| Operating Temp. | -40 ~ 110 C (up to 150 C available) |
| Package/Case | Stainless Steel Cylinder, Threaded Aluminum Cylinder, Threaded Plastic Cylinder, Flange Mount |
| Termination Style | Integrated Connector, Cable Harness with Connector, Free End Wire |
- Shaft and gear speed and direction in agricultural equipment
- Measure speed and direction in conveyor systems
- Speed and direction resolution in automation equipment
- Resolve speed of industrial and agricultural attachments
- Provide count feedback of components in production and testing
- Cam and crankshaft timing
- Measure feed rate of cranes and winches
- Resolve engine RPMs
- Measure vehicle and wheel speed and direction
- Monitor gears in transmissions
