Standex Detect manufactures OEM and OEM replacement magnetic sensors designed specifically for the detection of high-speed shot rods in die casting equipment. Our catalog includes replacement options compatible with Visi-Trak and Zitai systems as well as the next generation in die cast shot rod magnetic sensors that adapt to changing gaps and the different diameters and target profiles of shot rods used in die casting machines.
Shot Rod Detection
Hall Effect Shot Rod Detecting Speed Sensors (SR)

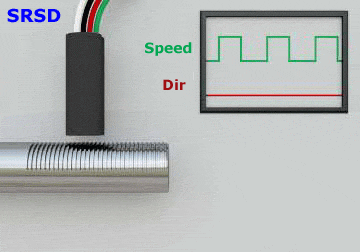

Hall Effect Shot Rod Detecting Sensor for Determining Speed and Direction (SRSD)

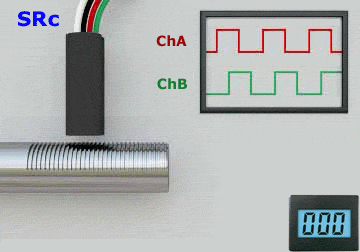

Hall Effect Shot Rod Detecting Sensor for Counting Rotational Movement (SRc)
Self Calibrating Shot Rod Sensors
Our self-calibrating shot rod sensors are designed to overcome problems of a typical calibrated sensor when placed in die cast machines. These sensors will calibrate themselves to produce a digital signal which has a 50% duty cycle. The following application note provides information about how shot rod sensors work and explains why these self-calibrating shot rod sensors should be used in all machines for improved performance and operate gap range.
Self-Calibrating Shot Rod Sensors are available for 20 Tooth Per Inch shot rods (SSCR20TPI) and for shot rods with 2mm tooth spacing (SSCR2MM). These sensors are ideal for use in new equipment or as drop-in replacements in existing machines. Sensors are available with free end wires or MS style connectors for quick connection to the electrical system of the die cast machines.
To learn more about options for shot rod sensing, OEM packaging of sensors for your equipment, or other options to meet the specific requirements of your application contact our engineers to discuss your specific magnetic sensing requirements.
