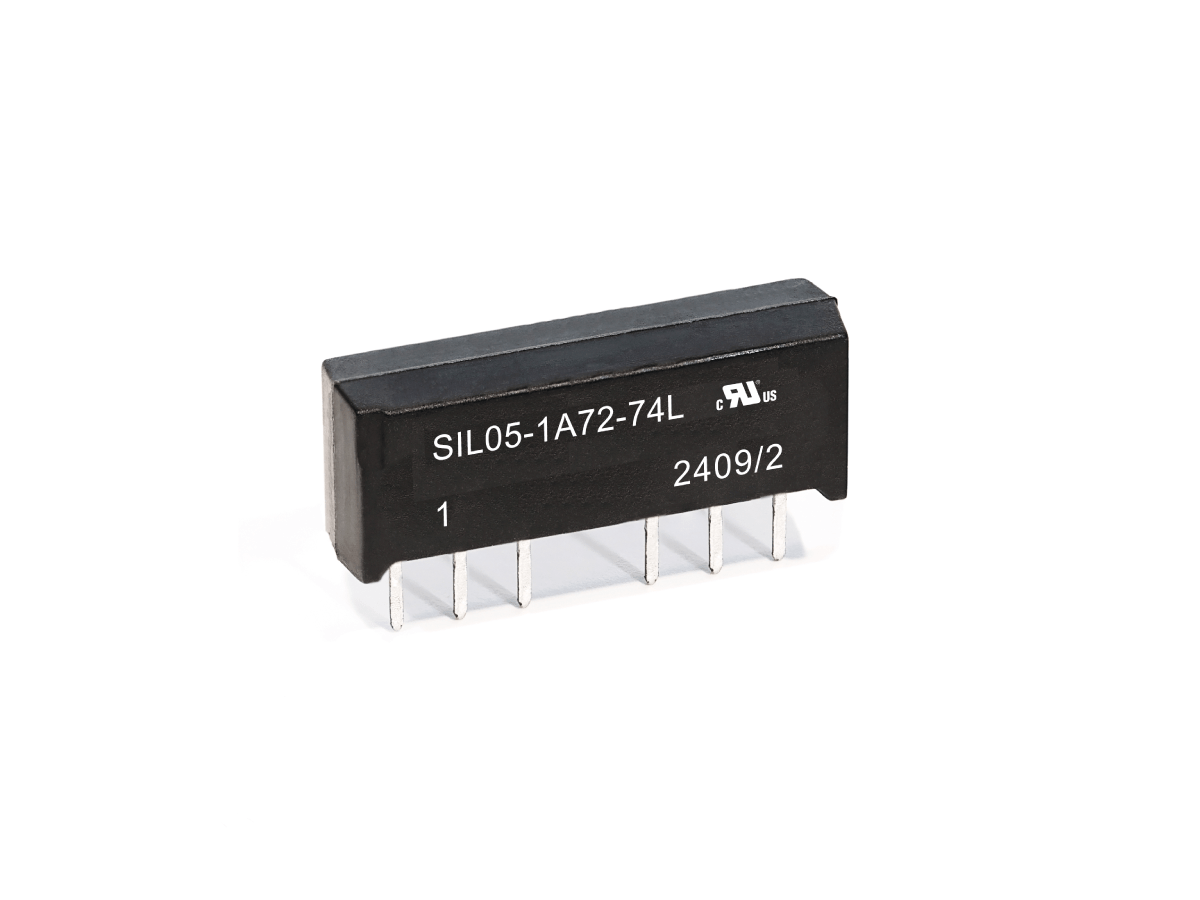

SIL RF Series Reed Relay
The SIL RF Series is a high-frequency, single-in-line (SIL) reed relay designed for instrumentation-grade performance in compact PCB layouts. Capable of switching signals from DC to 1.5 GHz, this series is ideal for RF applications requiring precision, reliability, and minimal PCB footprint. Its rugged thermoset overmolded package occupies 50% less board space than traditional DIP and DIL formats, making it a top choice for space-constrained designs.
Available in SPST-NO (Form A) contact configuration, the SIL RF Series supports coil voltages of 5 VDC and 12 VDC, with coil resistance ranging from 500 to 1000 Ω. It is rated for up to 10 W, 200 VDC, and 0.5 A, and offers optional diode protection, magnetic shielding, and coaxial shielding for enhanced signal integrity and isolation. A variety of configurations are available to meet specific application needs, including low-consumption coil variants.
Standards and Certifications
- High-frequency switching up to 1.5 GHz

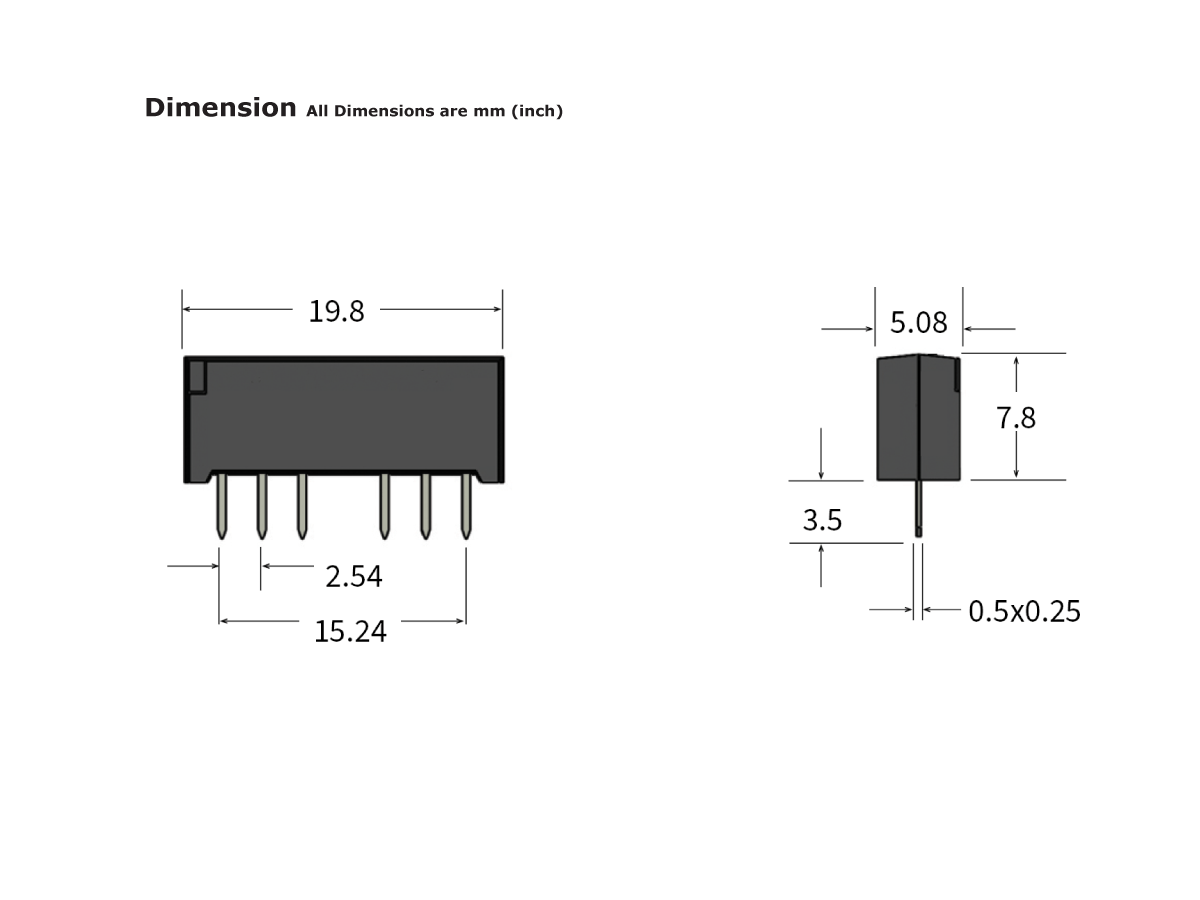

- Compact SIL overmolded package—50% smaller than DIP/DIL formats
- Contact configuration: SPST-NO (Form A)
- Rated for 10 W, 200 VDC, and 0.5 A
- Coil voltage options: 5 VDC and 12 VDC
- Coil resistance: 500–1000 Ω
- Optional diode protection for coil suppression
- Magnetic and coaxial shielding options for improved RF performance
- Low-consumption coil variants available
- Through-hole (THT) mounting for secure PCB integration
- Dielectric strength up to 4 kVDC
| Coil Voltage (VDC) | 5, 12 |
| Coil Resistance (Ω) | 500-1000 |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 10W/200VDC/0.5A |
- RF Test & Measurement Equipment: High-frequency signal switching
- Telecommunications: Signal routing in RF modules and network systems
- Security Systems: Reliable switching in compact control units
- Industrial Electronics: High-performance relay integration
- White Goods & Consumer Electronics: Compact relay control in embedded systems
