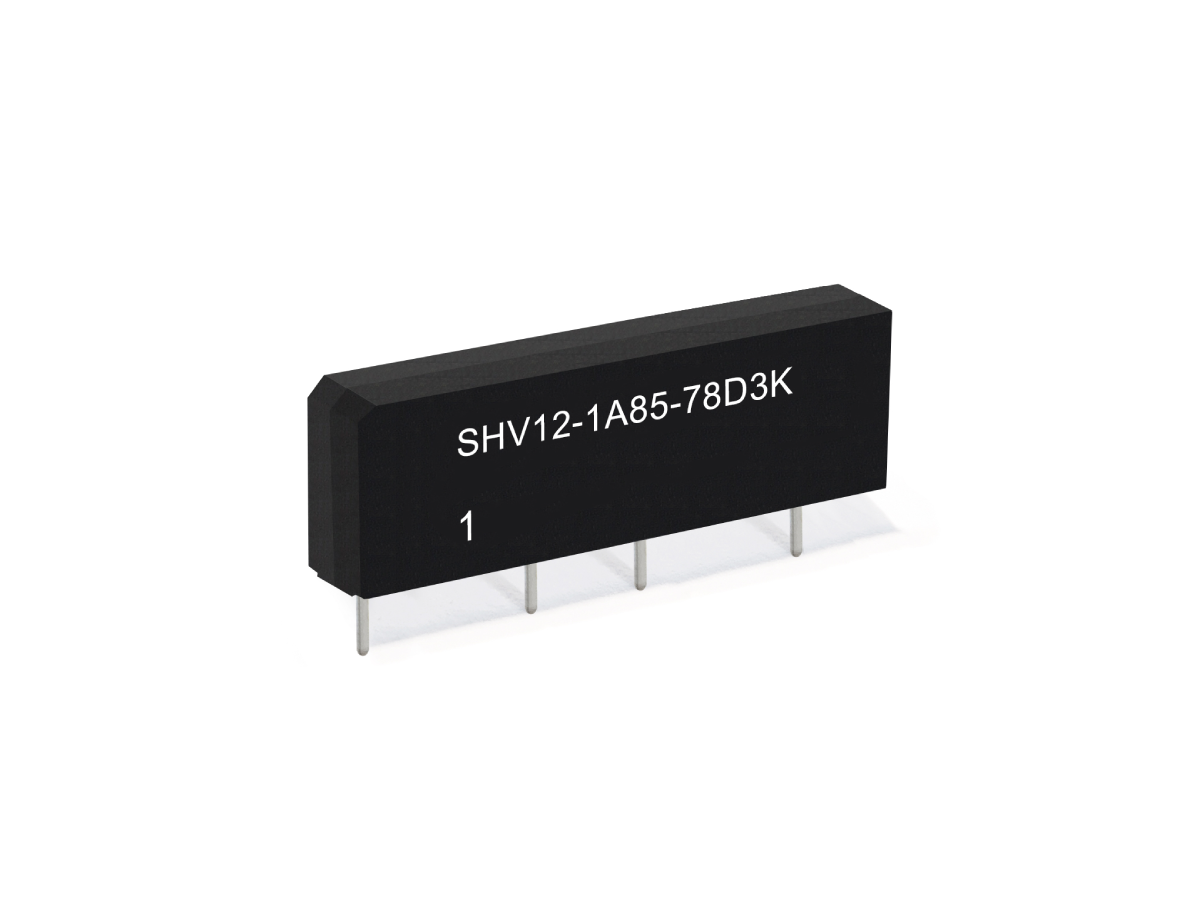

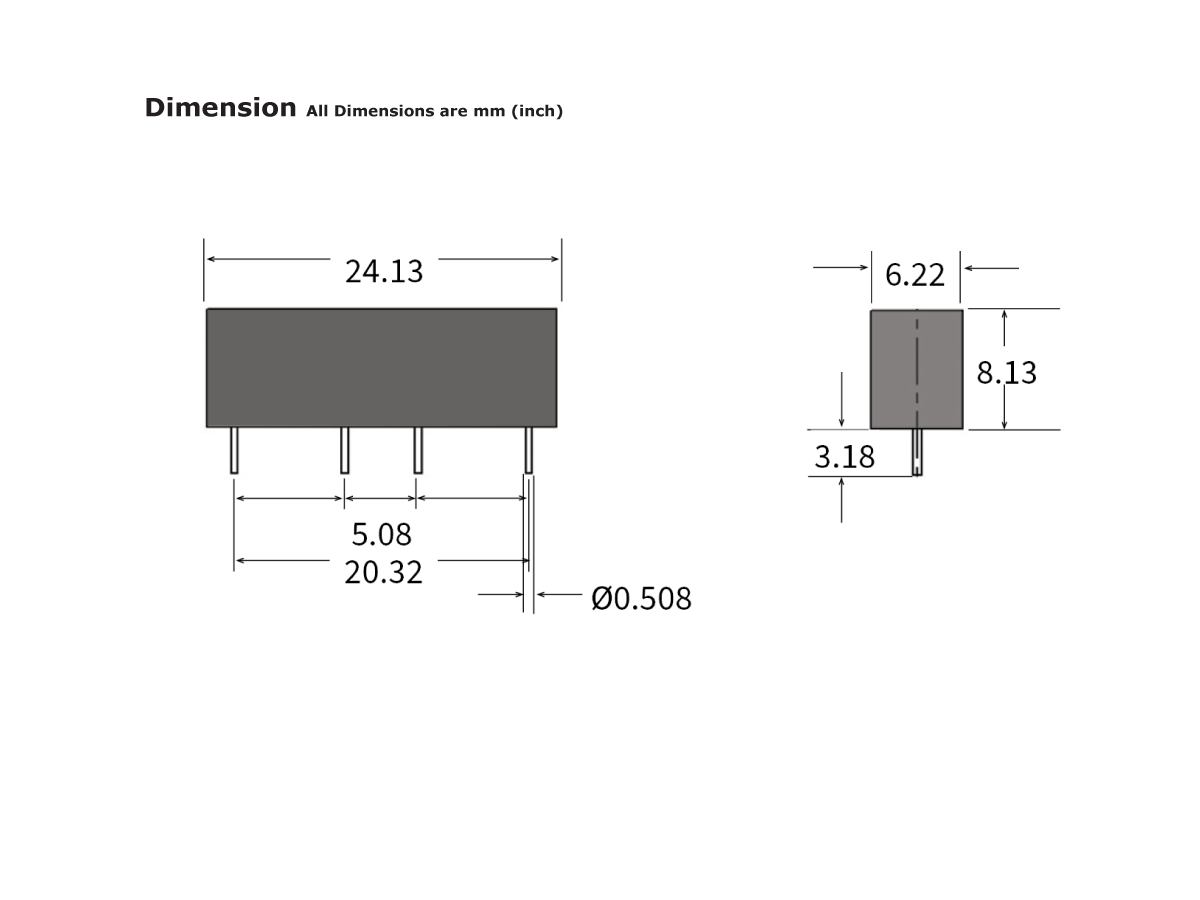

SHV Series Reed Relay
The SHV Series is a high-voltage, single-in-line (SIL) reed relay engineered for instrumentation-grade performance in compact PCB layouts. Designed to switch up to 1,000 VDC with a breakdown voltage of 4,000 VDC, the SHV Series delivers exceptional isolation and reliability in demanding applications such as automated test equipment (ATE), medical devices, and photovoltaic systems.
Encased in a molded housing, the SHV Series offers insulation resistance greater than 5 × 10¹¹ Ω, while occupying 50% less PCB area than traditional DIP and DIL reed relay formats. It is even smaller than the legacy potted SIL-HV relay, making it ideal for space-constrained designs. Available in SPST-NO (Form A) contact configuration, with coil voltages of 5 VDC, 12 VDC, and 24 VDC, and optional diode and magnetic shielding for enhanced performance.
Standards and Certifications
- High-voltage switching up to 1,000 VDC
- Breakdown voltage up to 4,000 VDC
- Insulation resistance > 5 × 10¹¹ Ω
- Compact SIL molded housing—50% smaller than DIP/DIL formats
- Contact configuration: SPST-NO (Form A)
- Coil voltage options: 5 VDC, 12 VDC, and 24 VDC
- Coil resistance range: 140–2,000 Ω
- Rated power: Up to 100 W
- Optional diode protection for coil suppression
- Integrated magnetic shielding for signal integrity
- Through-hole (THT) mounting for secure PCB placement
- UL Certificate of Compliance for safety assurance
| Coil Voltage (VDC) | 05, 12, 24 |
| Coil Resistance (Ω) | 140-2000 |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 100W/1,000VDC/1A |
- Automated Test Equipment (ATE): High-voltage relay arrays for precision testing
- Medical Equipment: Reliable switching in portable defibrillators and diagnostics
- Photovoltaics: High-voltage isolation in solar energy systems
- Battery-Powered Devices: Compact relay integration for power control
- Telecommunications: Signal routing in high-voltage network modules
- Mercury Relay Replacement: Safe and compact alternative for legacy systems
