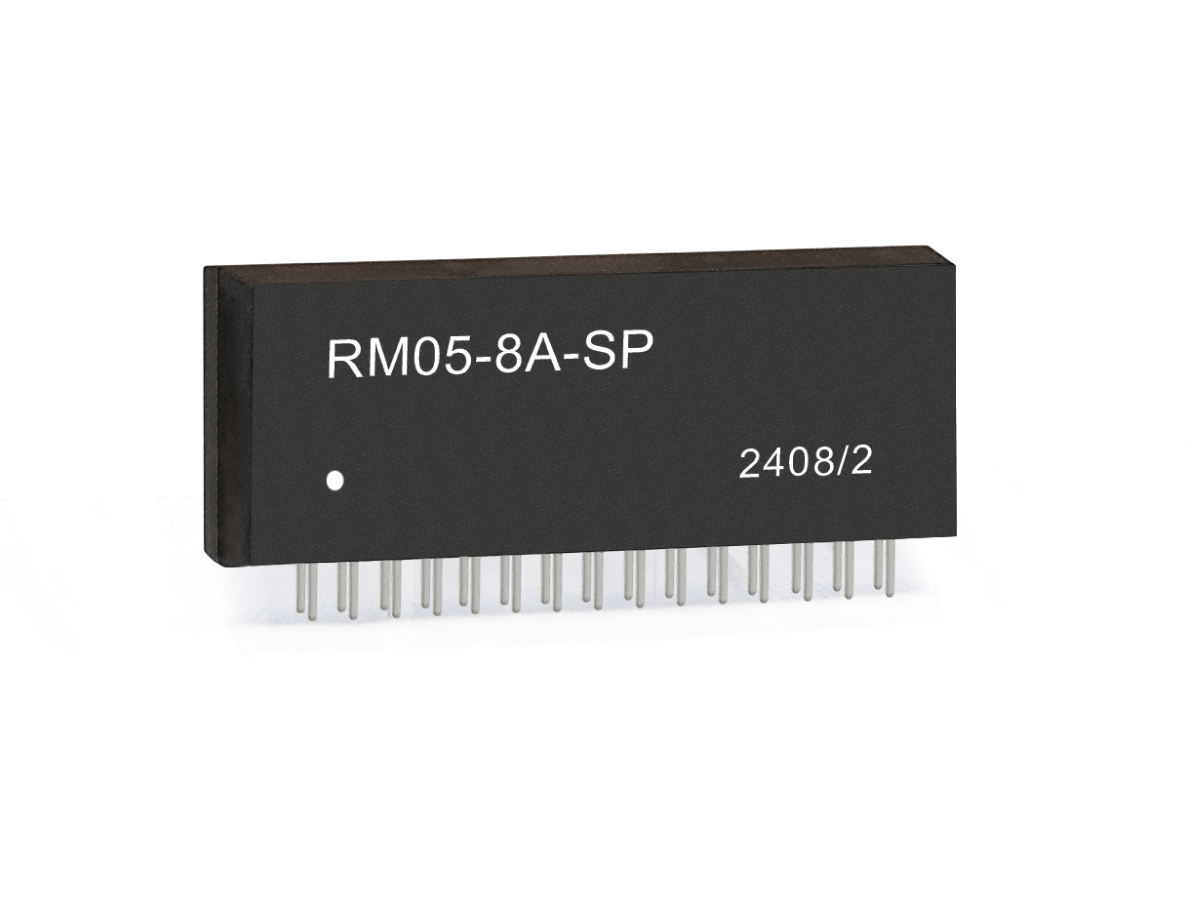

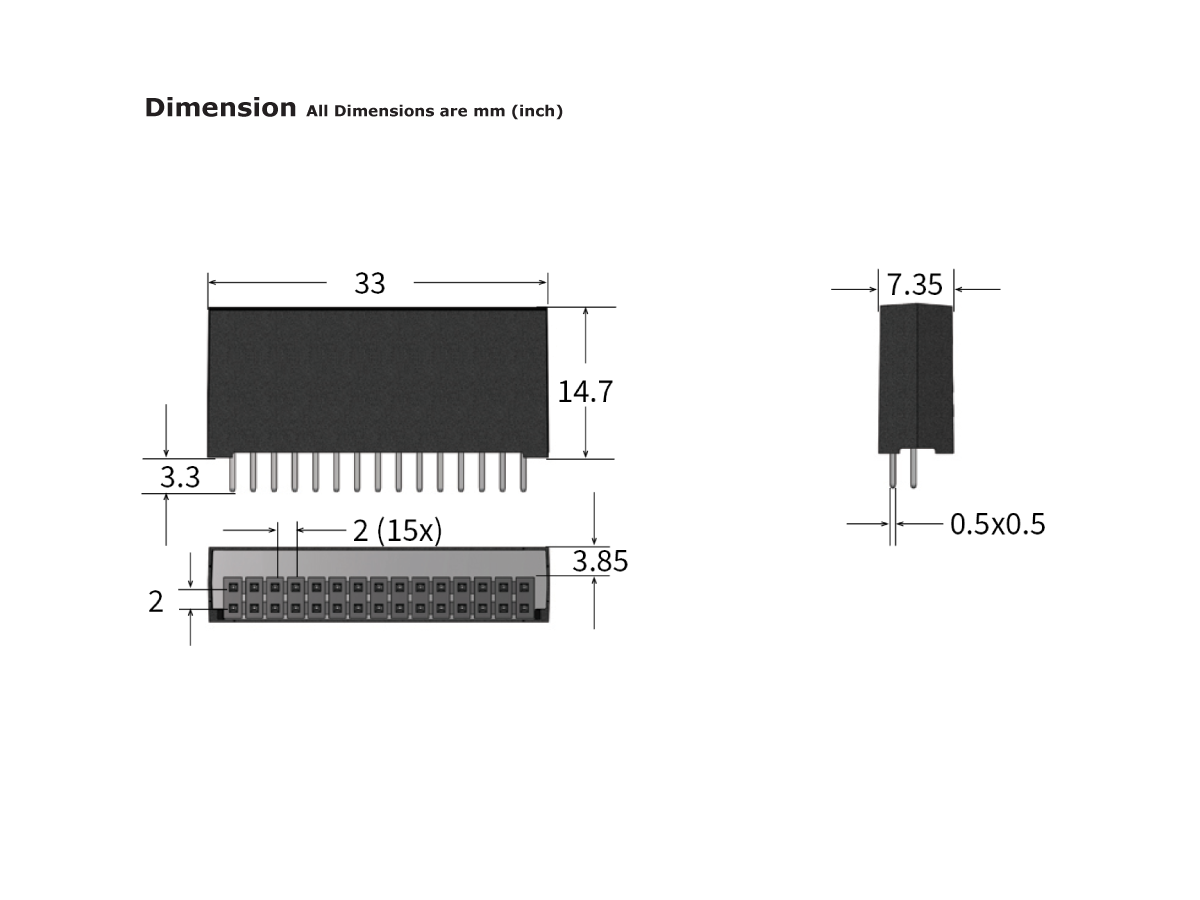

RM05-8A-SP Series Reed Relay
The RM05-8A-SP Series is an ultraminiature, low-profile reed relay module designed for high-density PCB applications where space, performance, and integration matter. Featuring an 8-pole SPST-NO (Form A) configuration and a standard dual in-line (DIL) pin-out with 2 mm raster, this module is engineered to reduce PCB space by 24% compared to the RM05-8A, while also lowering wiring and assembly costs.
Equipped with an integrated magnetic shield, diode protection, and an 8-channel relay driver (MAX4823) with kickback protection and parallel activation electronics, the RM05-8A-SP Series delivers reliable switching performance in compact test and measurement environments.
Standards and Certifications
- Ultraminiature 8-pole relay module for high-density board mounting
- Standard DIL pin-out (2 mm raster) for easy integration
- SPST-NO (Form A) contact configuration across 8 channels
- Rated for 10 W, 170 VDC, and 0.5 A switching capacity
- Coil voltage: 5 VDC with 500 Ω coil resistance
- Integrated magnetic shielding for signal isolation
- Diode protection for coil suppression
- Built-in 8-channel relay driver (MAX4823) with kickback protection
- Parallel activation electronics for synchronized switching
- 24% smaller footprint than RM05-8A for space savings
- Through-hole (THT) mounting for secure placement
| Coil Voltage (VDC) | 5 |
| Coil Resistance (Ω) | 500 |
| Contact Form | 8A |
| Rated Power Max. | 10W/170VDC/0.5A |
- Automated Test Equipment (ATE): Compact relay arrays for load boards
- Test & Measurement Systems: High-density switching in precision instruments
- High-Density PCB Designs: Space-saving relay integration
- Signal Routing Modules: Reliable multi-channel switching
- Industrial Electronics: Cost-effective relay control in embedded systems
