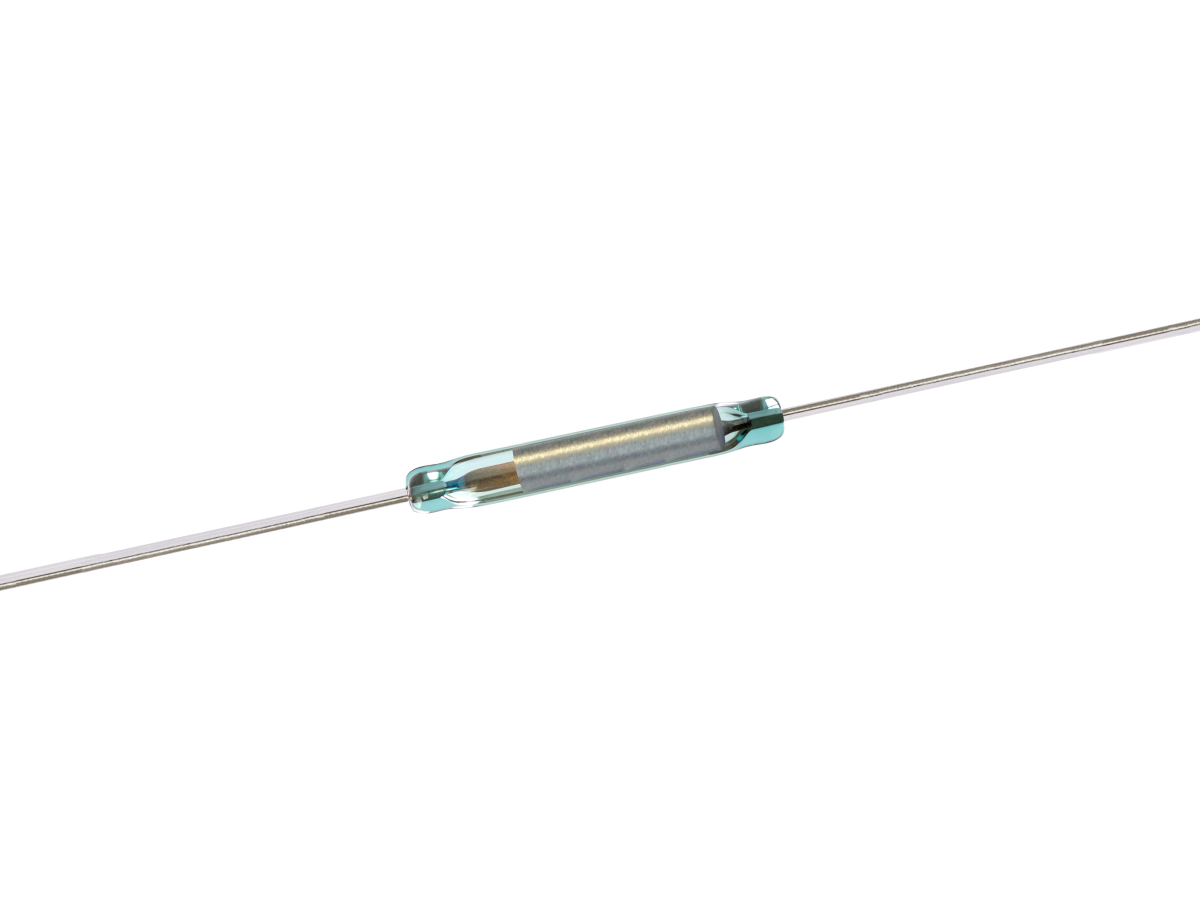

KSK-1E85 Series Reed Switch
The KSK-1E85 Series is a high-power, high-voltage latching reed switch designed for robust performance in industrial, automotive, and test & measurement applications. Featuring a bistable (Form E) contact configuration, it enables magnetic latching functionality that maintains contact state without continuous power—ideal for energy-efficient designs.
With a glass body length of 21.0 mm and diameter of 2.75 mm, the KSK-1E85 supports rated power up to 100 W, switching voltage up to 350 VDC, and switching current up to 1.0 A. Its hermetically sealed construction and UL approval ensure long-term reliability in demanding environments.
Standards and Certifications
- Latching/Bistable Contact (Form E) for power-saving switching logic
- High power and voltage handling (100 W / 350 VDC / 1.0 A)
- Extended glass body (21 mm length) for stable mechanical integration
- Hermetically sealed for durability in harsh or contaminated environments
- Wide pull-in range (30–55 AT) for flexible magnetic sensitivity
- UL approved for compliance with global safety standards
- Ideal for battery-powered and low-energy systems
- Supports automated assembly for high-volume production

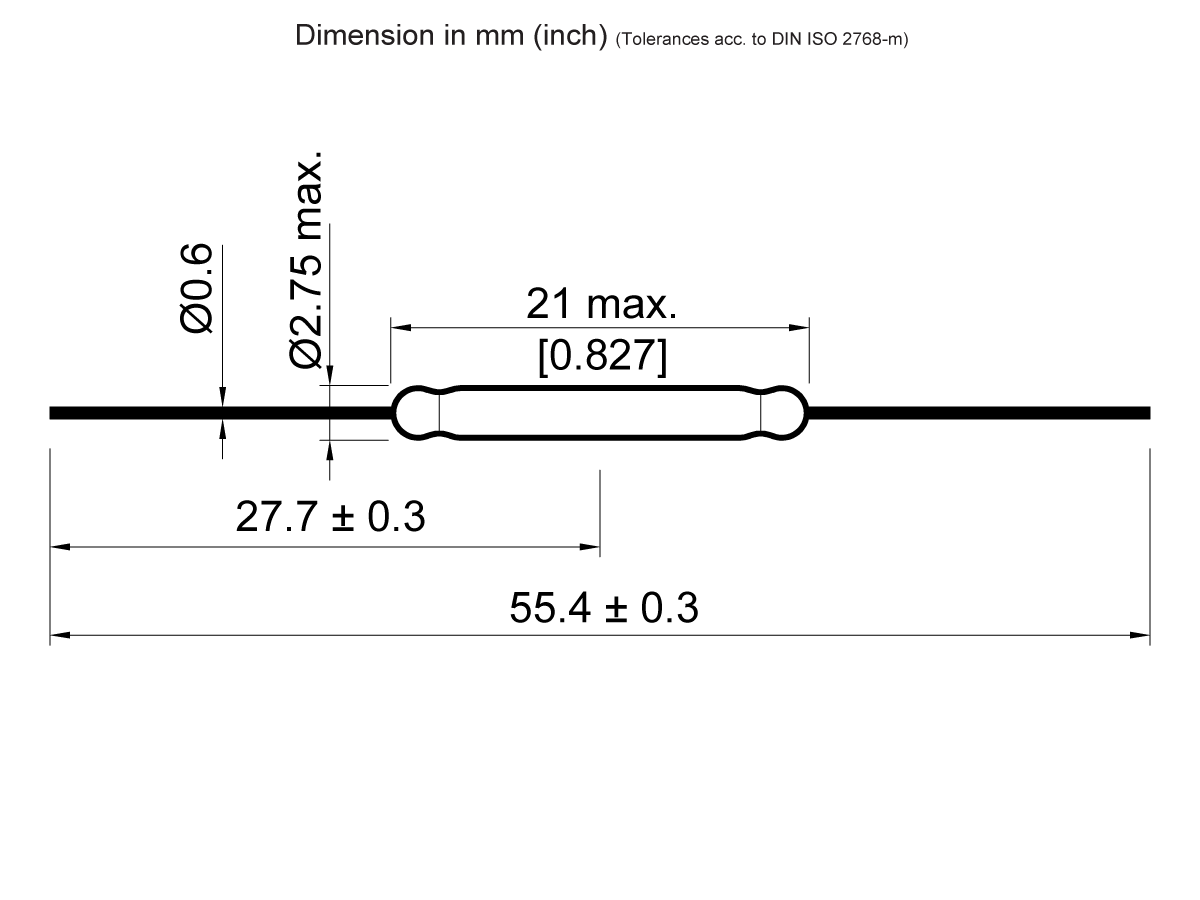

| Overall Length mm (inches) | 55.5 (2.185) |
| Glass Length Max. mm (inches) | 21.0 (0.826) |
| Glass Dia. Max. mm (inches) | 2.75 (0.108) |
| Lead Dia. mm (inches) | 0.6 (0.023) |
| Contact Form | 1E Latching |
| Pull-In Range | 30-55 AT |
| Rated Power Max. | 100W/1,000VDC/1 Amp DC |
- Automotive Systems: Brake detection, seatbelt sensors, fluid level monitoring
- Test & Measurement Equipment: Relay triggering, signal routing, ATE systems
- Industrial Controls: Position sensing, actuator feedback, high-voltage switching
- Medical Devices: Isolation switching in portable diagnostic tools
- Security Systems: Magnetic contact sensors, tamper detection
- Smart Home Devices: Power-efficient switching in automation systems
- HVAC Systems: Valve control, fluid level sensing in heating/cooling units
