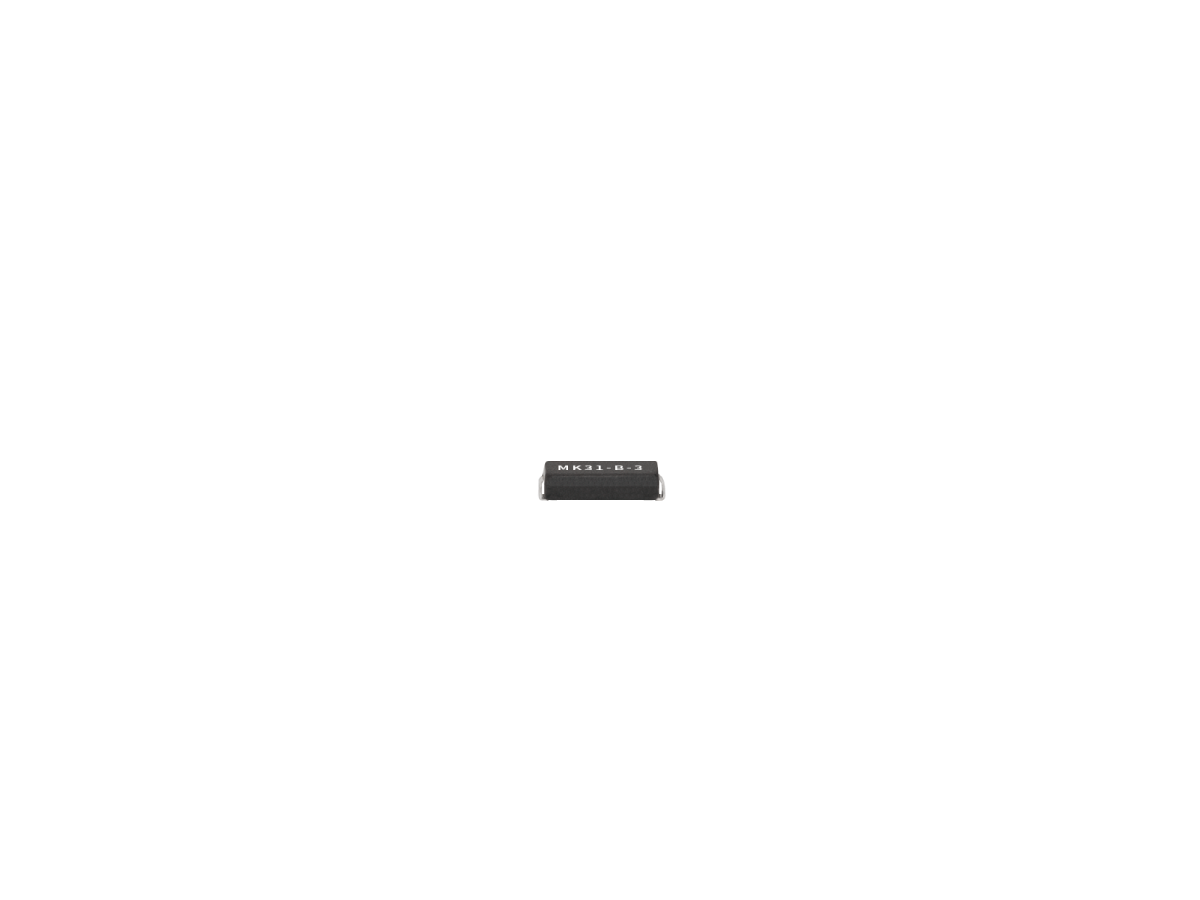

MK31 Series Surface Mount Reed Switch
The MK31 Series is a compact, molded-body SPST-NO (Form A) reed sensor designed for precision and durability. With a centrally aligned paddle gap and rounded corners, it ensures consistent magnetic sensitivity and mechanical stability. Supplied in Tape & Reel packaging, it supports high-volume automated assembly.
Standards and Certifications
- Hermetically sealed for long-term reliability
- Excellent coplanarity and solderability
- Ideal for low-power and space-limited designs
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Operating Range | 5-30 AT |
| Rated Power Max. | 3W/30VDC/0.3A |
- Medical devices
- Security systems
- Telecommunications
- White goods
- Metering and sabotage detection
