NL126 Series Reed Switch

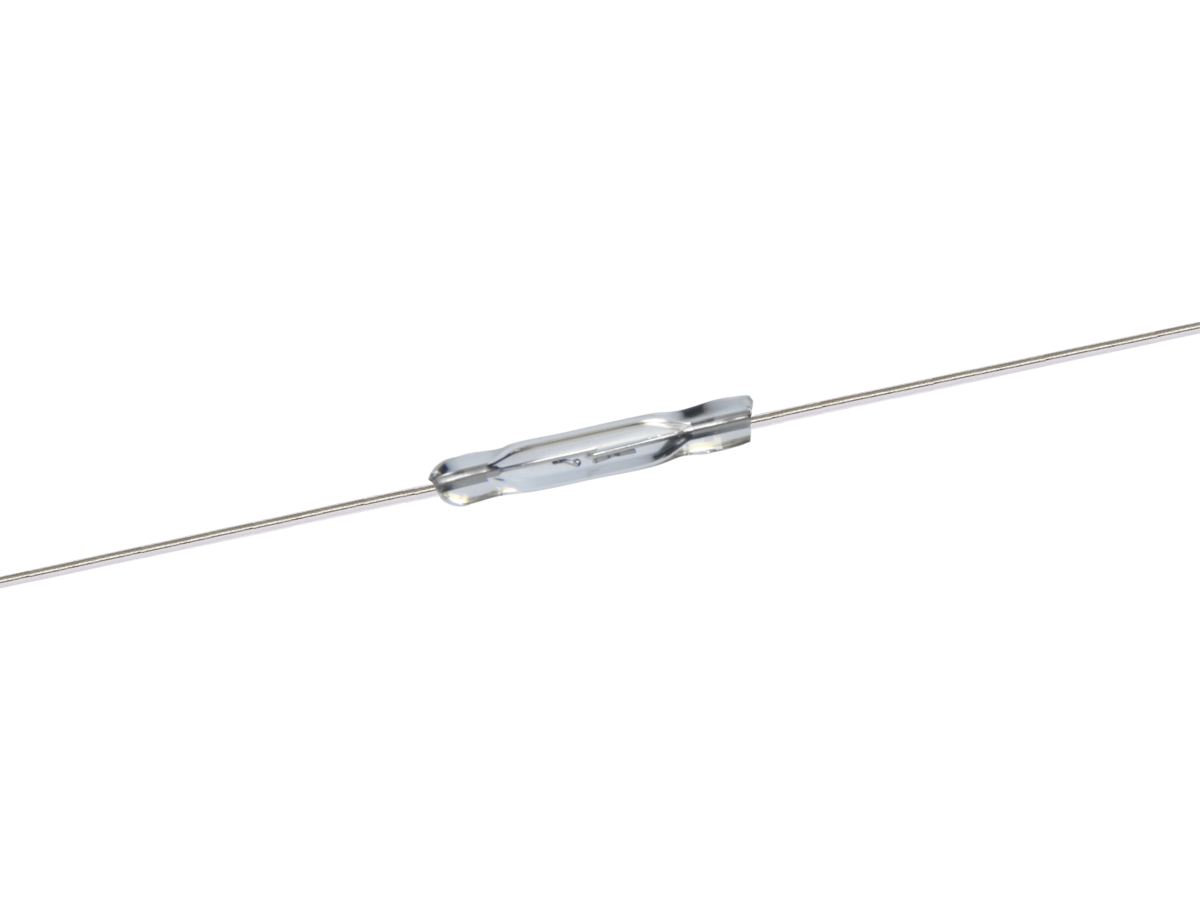

The NL126 Series is a high-power reed switch designed for lamp load and general-purpose switching in industrial and high-voltage environments. With a glass body length of 20.3 mm and diameter of 2.5 mm, this SPST-NO (Form A) switch supports switching voltages up to 200 VDC / 150 VAC, currents up to 1.5 A, and a rated power of 50 W.
Its hermetically sealed construction ensures long-term reliability, while a wide range of operate sensitivities (10–50 AT) allows for flexible magnetic actuation. The NL126 is ideal for applications requiring robust performance in compact form factors.
Standards and Certifications
- High-power switching capability for demanding electrical loads
- Hermetically sealed glass body protects against moisture and contaminants
- Flat lead configuration supports secure mounting and automated assembly
- No power required for actuation, enabling energy-efficient designs
- Fast switching response for precise control and timing
- Wide operate range options for flexible magnetic sensitivity tuning

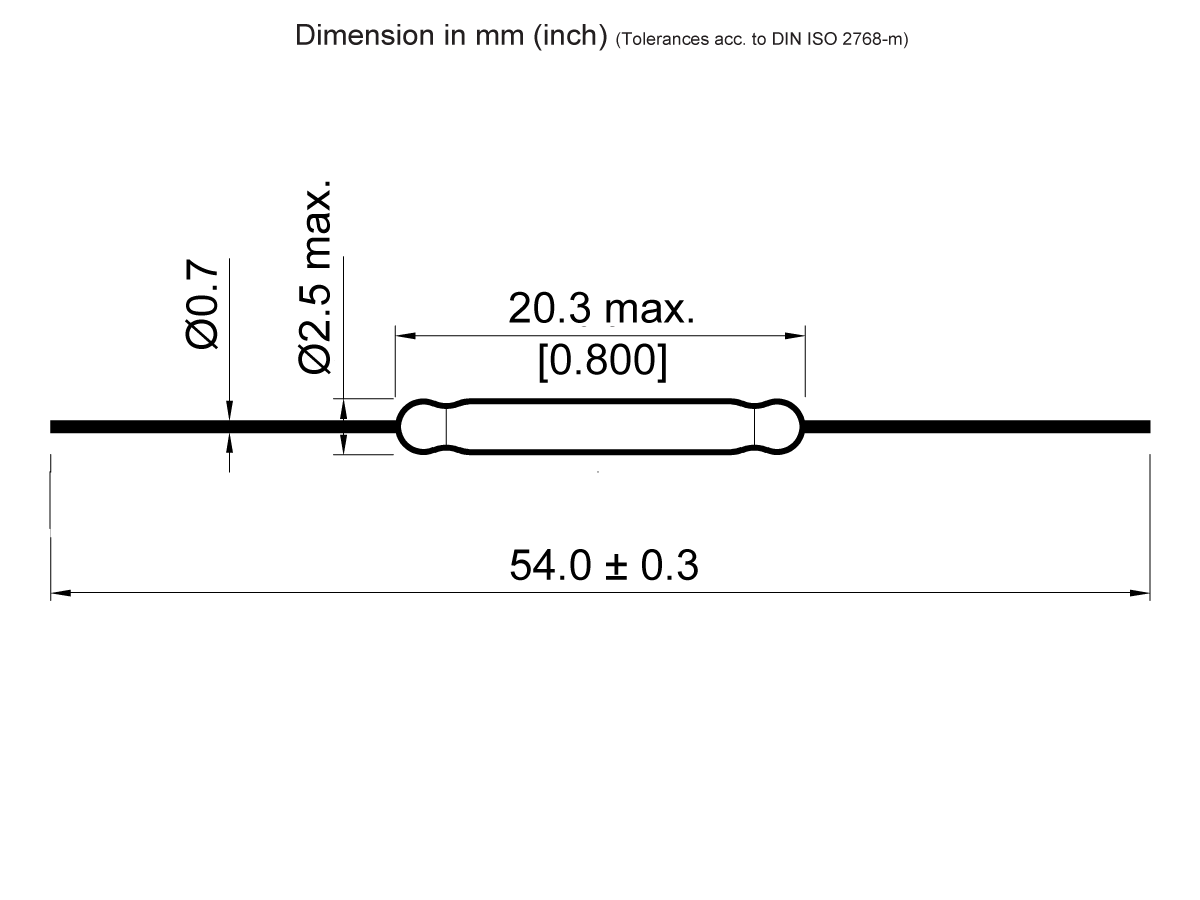

| Overall Length mm (inches) | 54.0 (2.125) |
| Glass Length Max. mm (inches) | 20.3 (0.799) |
| Glass Dia. Max. mm (inches) | 2.50 (0.098) |
| Lead Dia. mm (inches) | 0.7 (0.027) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 20-50 AT |
| Rated Power Max. | 50W/200VDC/150 VAC/1.5 Amp DC/AC |
- Industrial automation and control systems
- Lamp load switching in lighting systems
- HVAC and appliance monitoring
- Security and alarm systems
- Test and measurement equipment (ATE)
- Automotive sensors and switches
