ORD229 Series Reed Switch

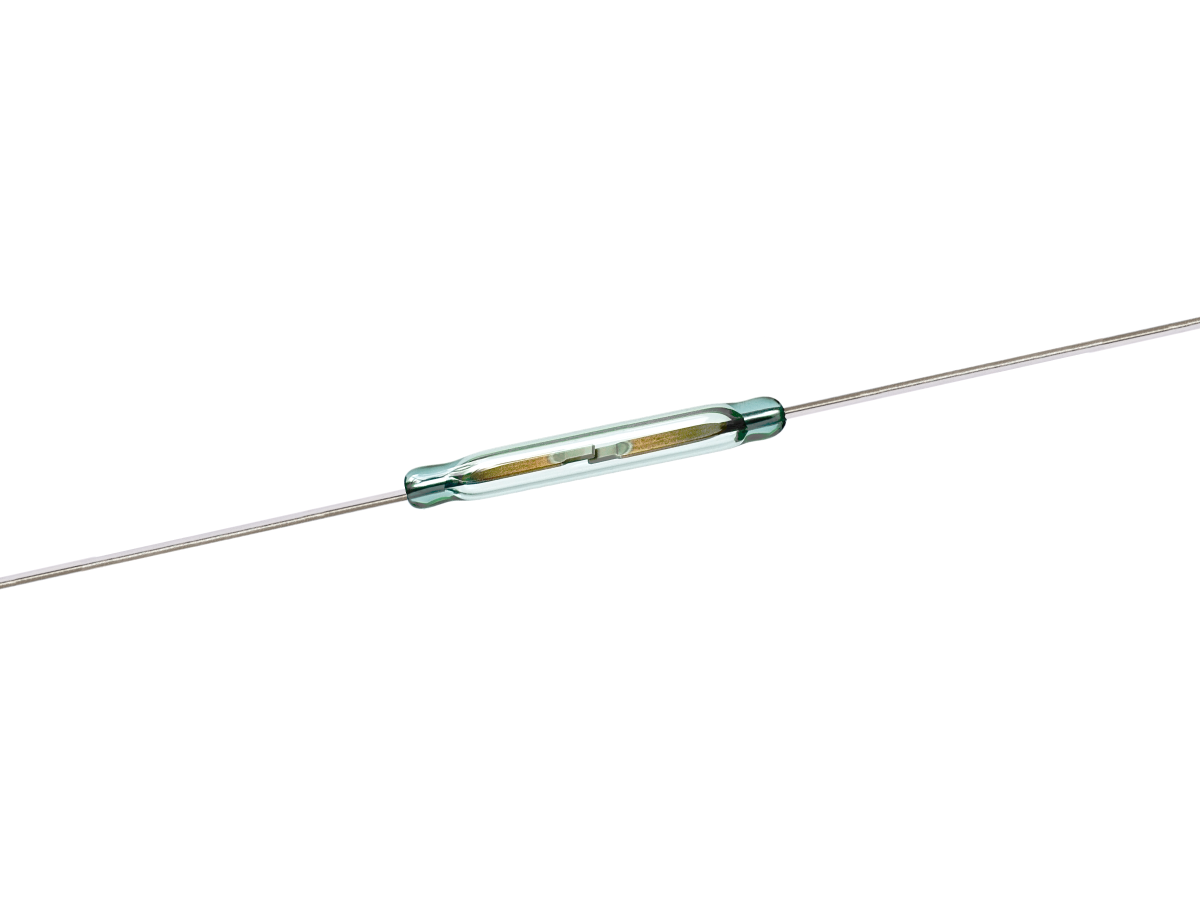

The ORD229 Series is a high-power, general-purpose reed switch designed for robust performance in demanding electrical environments. With a glass body length of 21.0 mm and diameter of 2.75 mm, this SPST-NO (Form A) switch supports switching voltages up to 350 VDC, currents up to 0.7 A, and a rated power of 50 W.
Its hermetically sealed contacts ensure long-term reliability, while a wide operate range (20–60 AT) allows for flexible magnetic actuation. The ORD229 is ideal for automotive, industrial, and test and measurement applications requiring high voltage and current handling in a compact form factor.
Standards and Certifications
- High-power switching capability for demanding electrical loads
- Hermetically sealed glass body protects against moisture, dust, and contaminants
- Flat lead configuration supports secure mounting and automated assembly
- Wide operate range options for flexible magnetic sensitivity tuning
- Shock and vibration resistant for rugged environments
- Energy-efficient operation with no power required for actuation

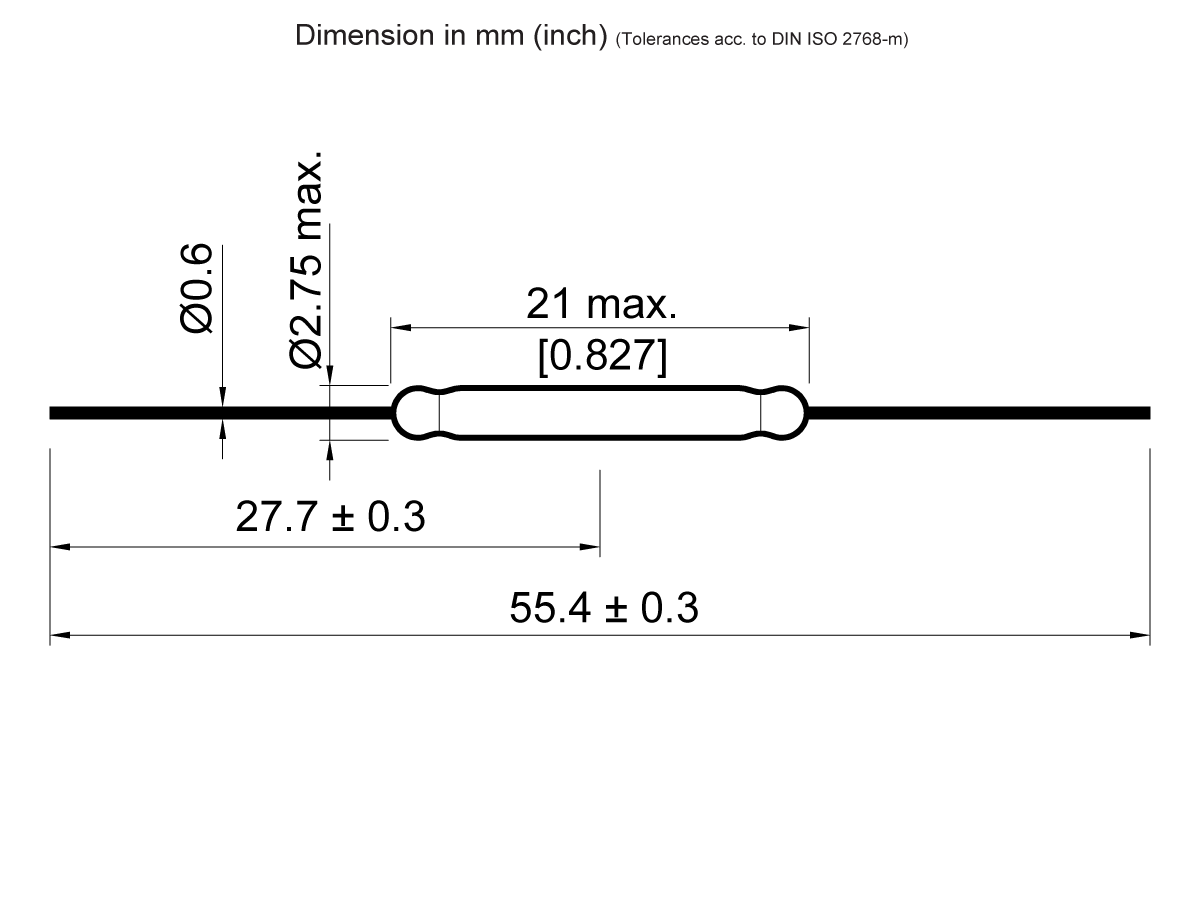

| Overall Length mm (inches) | 55.4 (2.181) |
| Glass Length Max. mm (inches) | 21.0 (0.826) |
| Glass Dia. Max. mm (inches) | 2.75 (0.108) |
| Lead Dia. mm (inches) | 0.6 (0.023) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 20-60 AT |
| Rated Power Max. | 50W/350VDC/0.7 Amp DC |
- Automotive sensors and controls
- Test and measurement equipment (ATE)
- High-voltage switching in industrial systems
- Relay and solenoid control circuits
- Security and alarm systems
- Power monitoring and metering devices
