ORD9215 Series Reed Switch

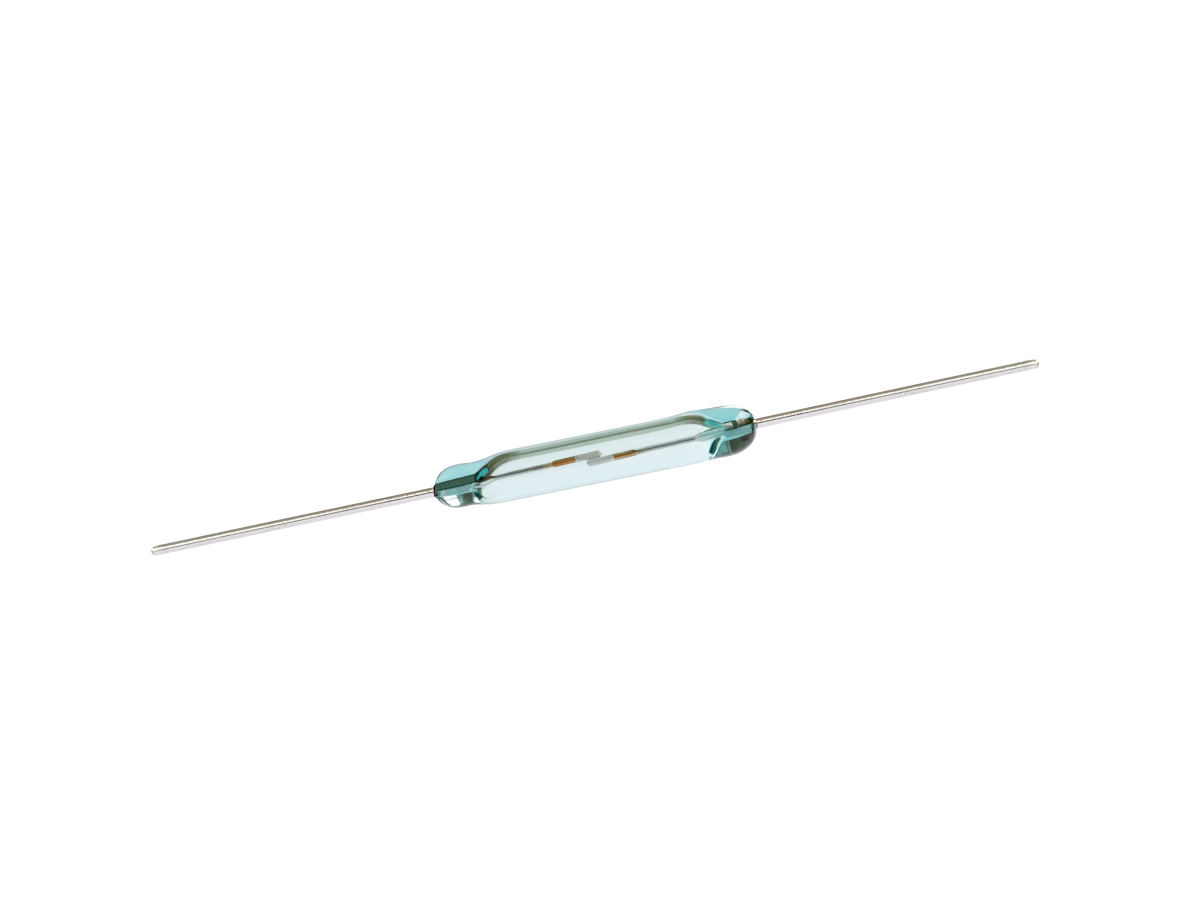

The ORD9215 Series is a general-purpose miniature reed switch designed for reliable SPST-NO (Form A) switching in medium-load applications. With a glass body length of 17.0 mm and a diameter of 2.8 mm, it supports switching voltages up to 100 VDC and currents up to 0.4 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the ORD9215 ensures long-term contact reliability and stable performance across a wide range of operating conditions. Its compact form factor and broad sensitivity range (10–50 AT) make it ideal for integration into consumer, industrial, and telecom systems.
Standards and Certifications
- SPST-NO (Form A) contact configuration for simple on/off switching
- Compact 17.0 mm glass body with 2.8 mm diameter for space-efficient designs
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required, ideal for low-power systems
- Rated for 10 W, 100 VDC, and 0.4 A switching current for medium-load applications
- Wide pull-in sensitivity range (10–50 AT) for flexible magnetic actuation

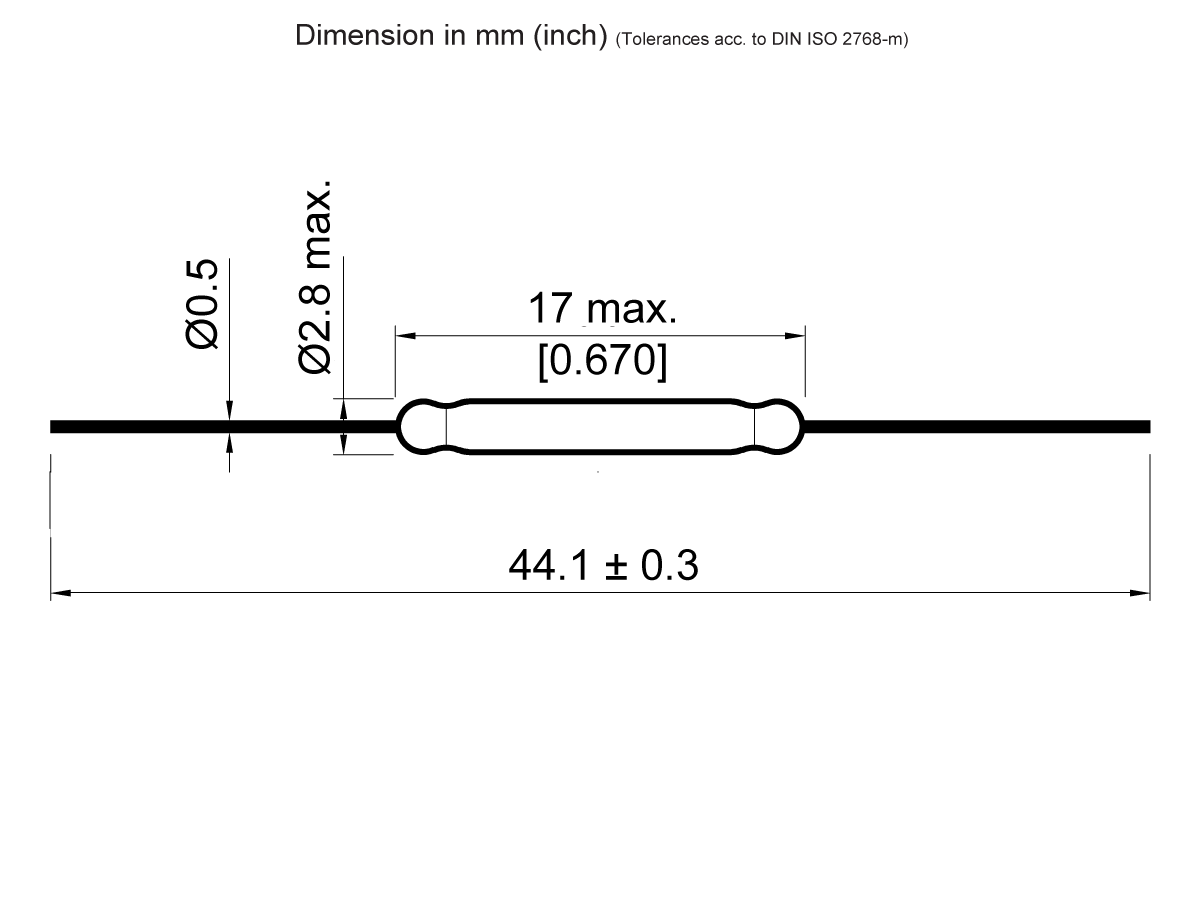

| Overall Length mm (inches) | 44.1 (1.736) |
| Glass Length Max. mm (inches) | 17.0 (0.668) |
| Glass Dia. Max. mm (inches) | 2.8 (0.110) |
| Lead Dia. mm (inches) | 0.5 (0.019) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 10-50 AT |
| Rated Power Max. | 10W/100VDC/0.4 Amp DC |
- Test & Measurement Equipment: High-voltage switching in automated test setups
- Industrial Controls: Power distribution, relay logic, and fault detection
- Automotive Systems: EV battery isolation, high-voltage sensing
- Medical Equipment: Isolation switching in diagnostic and imaging systems
- HVAC & White Goods: Line voltage switching and control
- Security Systems: High-voltage perimeter sensors and tamper detection
