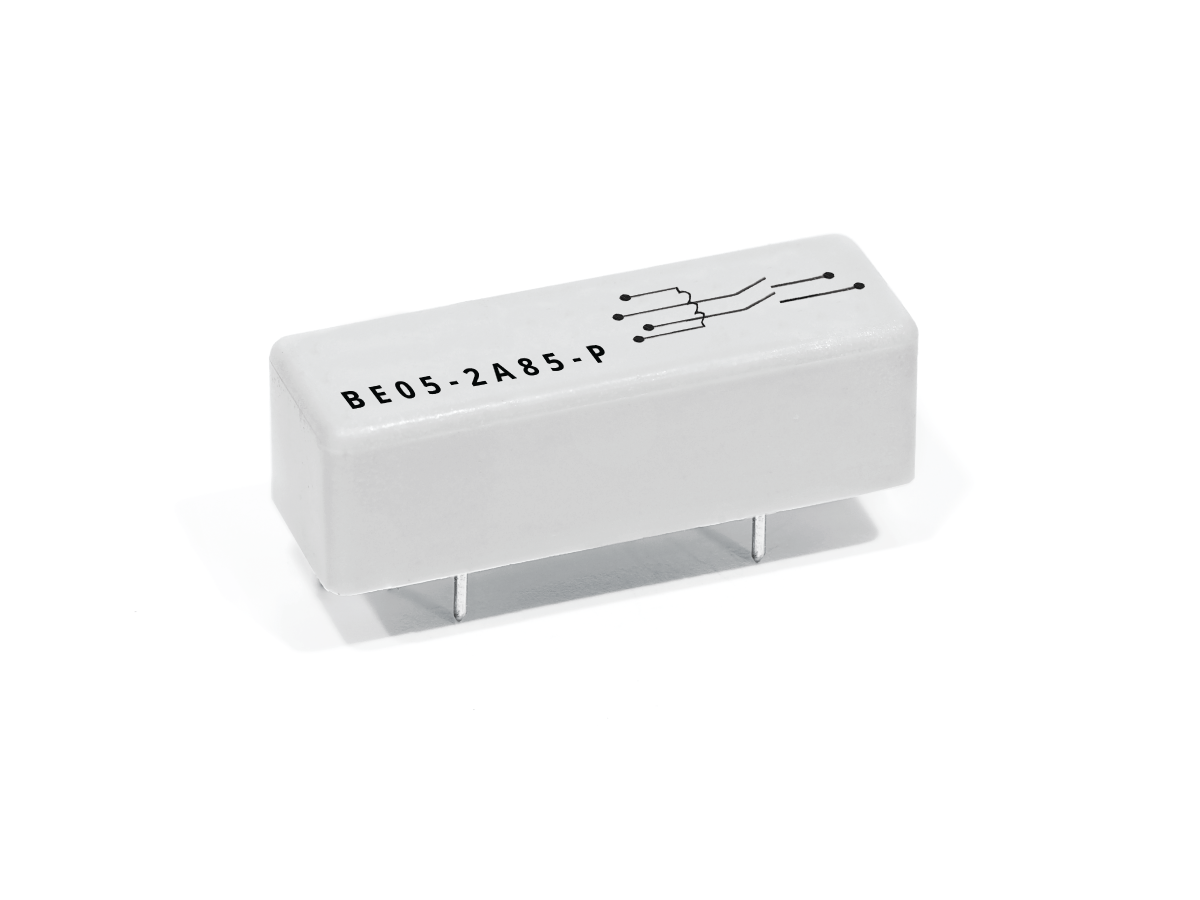

BE Series Reed Relay
The BE Series is a highly versatile general-purpose reed relay designed for precision switching in a wide range of electronic applications. Engineered with multiple contact configuration options, including up to five Form A switches, the BE Series offers exceptional flexibility for custom circuit designs. Available in latching and high insulation resistance variants (up to 10¹³ Ω), these relays are housed in durable plastic or metal enclosures and epoxy encapsulated for enhanced reliability.
Rated for up to 100 W, 1000 VDC, and 1.0 A, the BE Series supports SPST-NO (Form A), SPST-NC (Form B), SPDT (Form C), latching/bistable (Form E), and DPST configurations. With coil voltages ranging from 5 VDC to 24 VDC and coil resistance from 140 Ω to 8000 Ω, the BE Series is ideal for demanding applications requiring compact, high-performance switching.
Standards and Certifications
- Supports up to 5 Form A switches for multi-channel switching
- Available in latching and high insulation resistance versions (up to 10¹³ Ω)

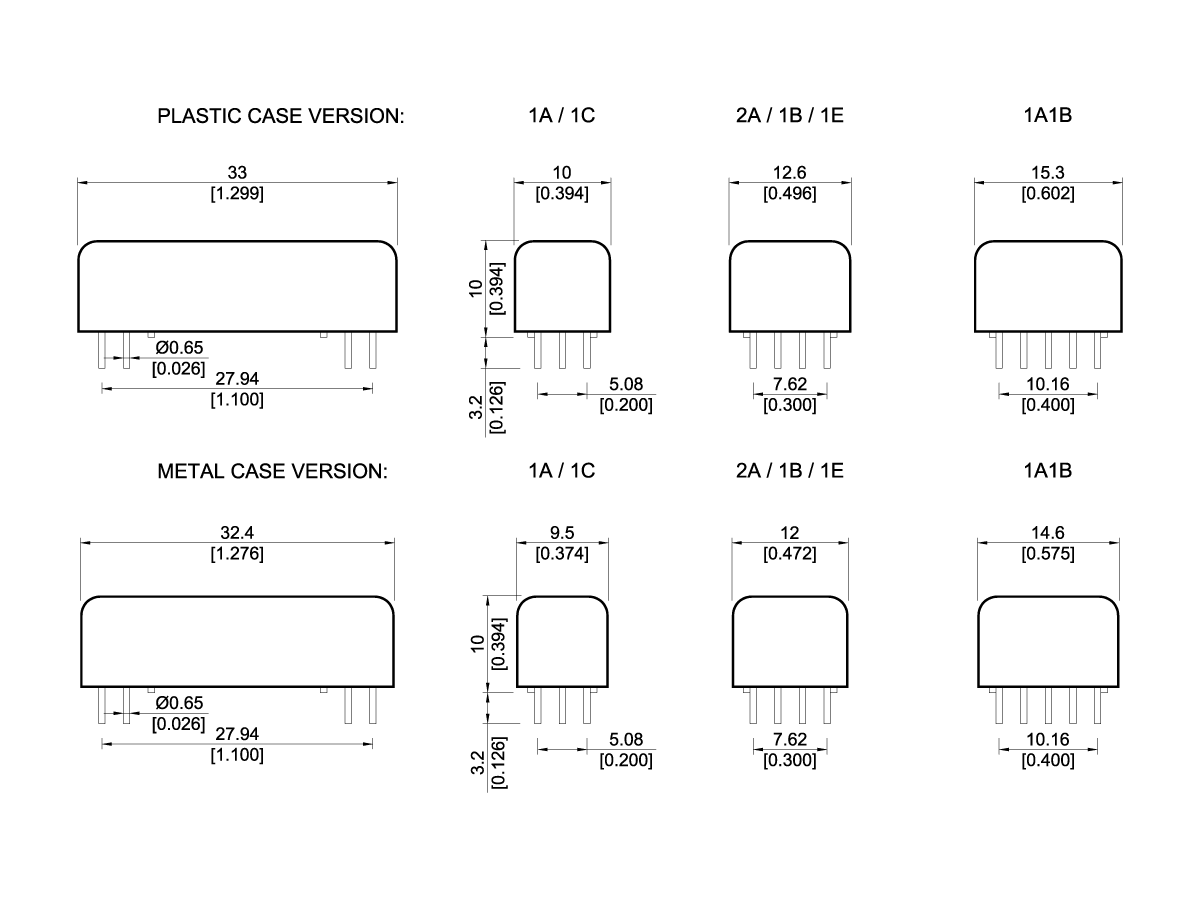

- Plastic or metal housing with epoxy encapsulation for rugged environments
- Rated for up to 100 W, 1000 VDC, and 1.0 A for high-voltage applications
- Wide range of contact forms: SPST-NO, SPST-NC, SPDT, DPST, and bistable
- Coil voltage options: 5 VDC, 12 VDC, 24 VDC
- Magnetic shielding and high isolation coil/contact options available
- Through-hole mounting for secure PCB integration
- Mercury switch variants available for specialized applications
| Coil Voltage (VDC) | 5, 12, 24 |
| Coil Resistance (Ω) | 140-8000 |

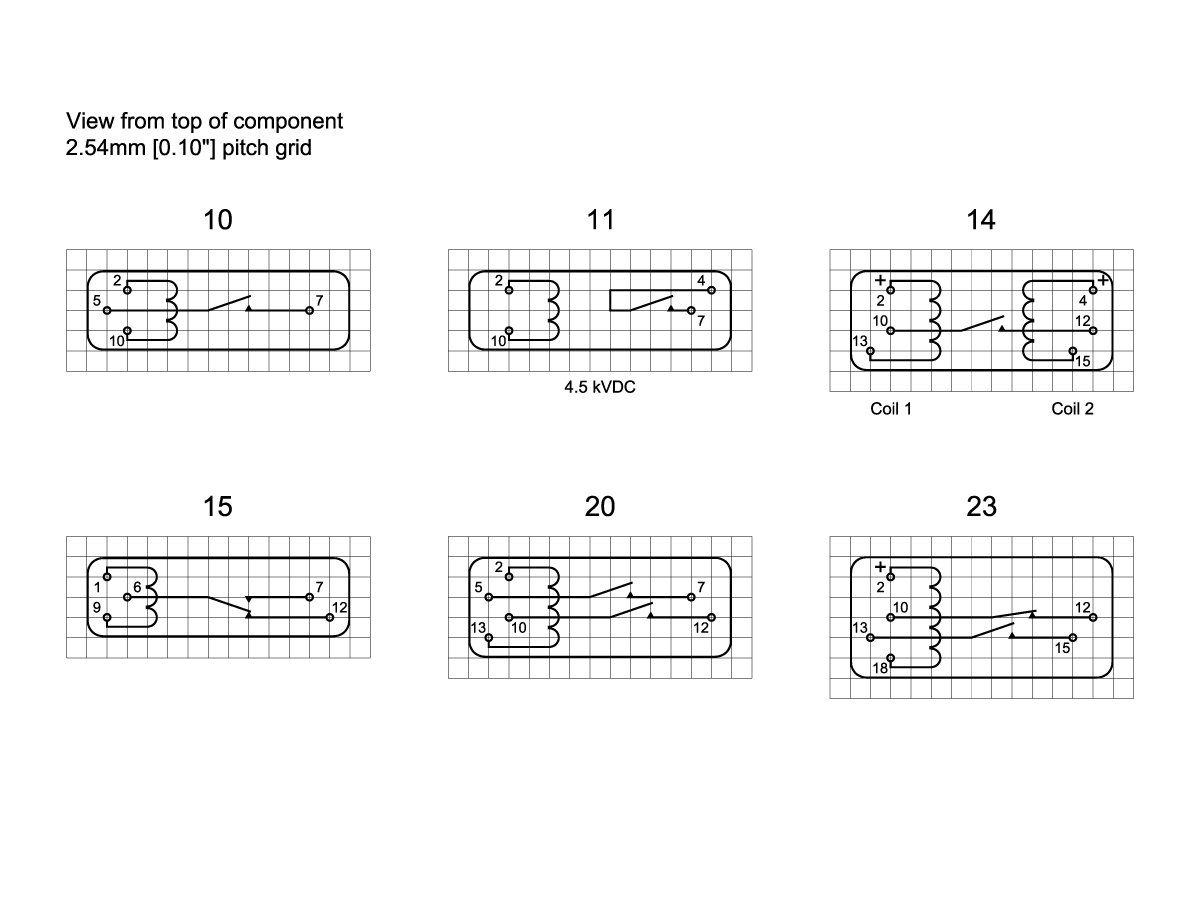

| Contact Form | 1-5A Normally Open (N.O.), 1-2B (SPST) Normally Closed (N.C.), 1-2C (SPDT) Changeover, 1-2E Latching/Bistable, 2A (DPST) Normally Open (N.O.) + 2B (DPST) Normally Closed (N.C.) |
| Rated Power Max. | 100W/1000VDC/1A |
- Battery-Powered Devices: Efficient switching with low power consumption
- Medical Equipment: Reliable isolation and switching in diagnostic and monitoring systems
- Photovoltaic Systems: High-voltage switching in solar energy applications
- Telecommunications: Signal routing and protection in network infrastructure
- Test & Measurement (ATE): Precision switching for automated test environments
- General Purpose Electronics: Versatile relay solutions for custom circuit designs
