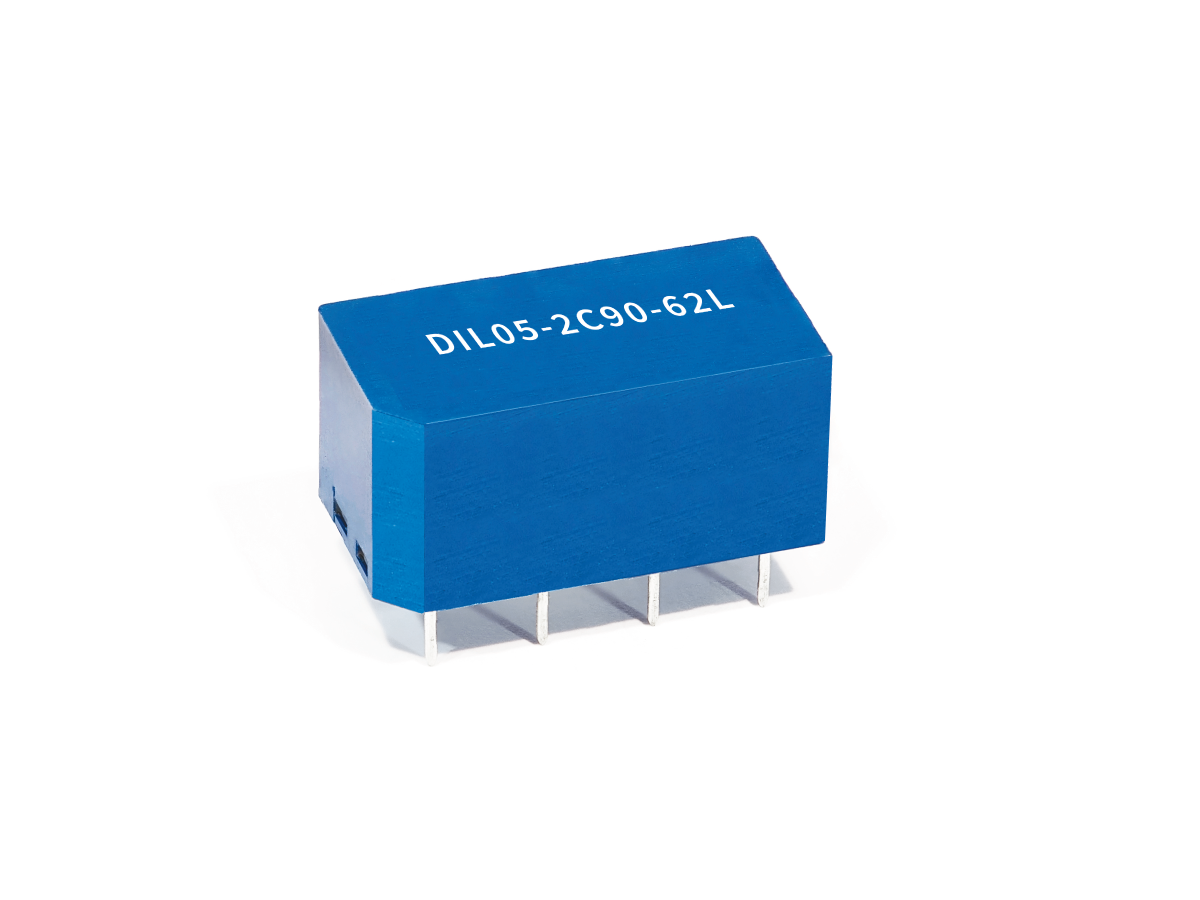

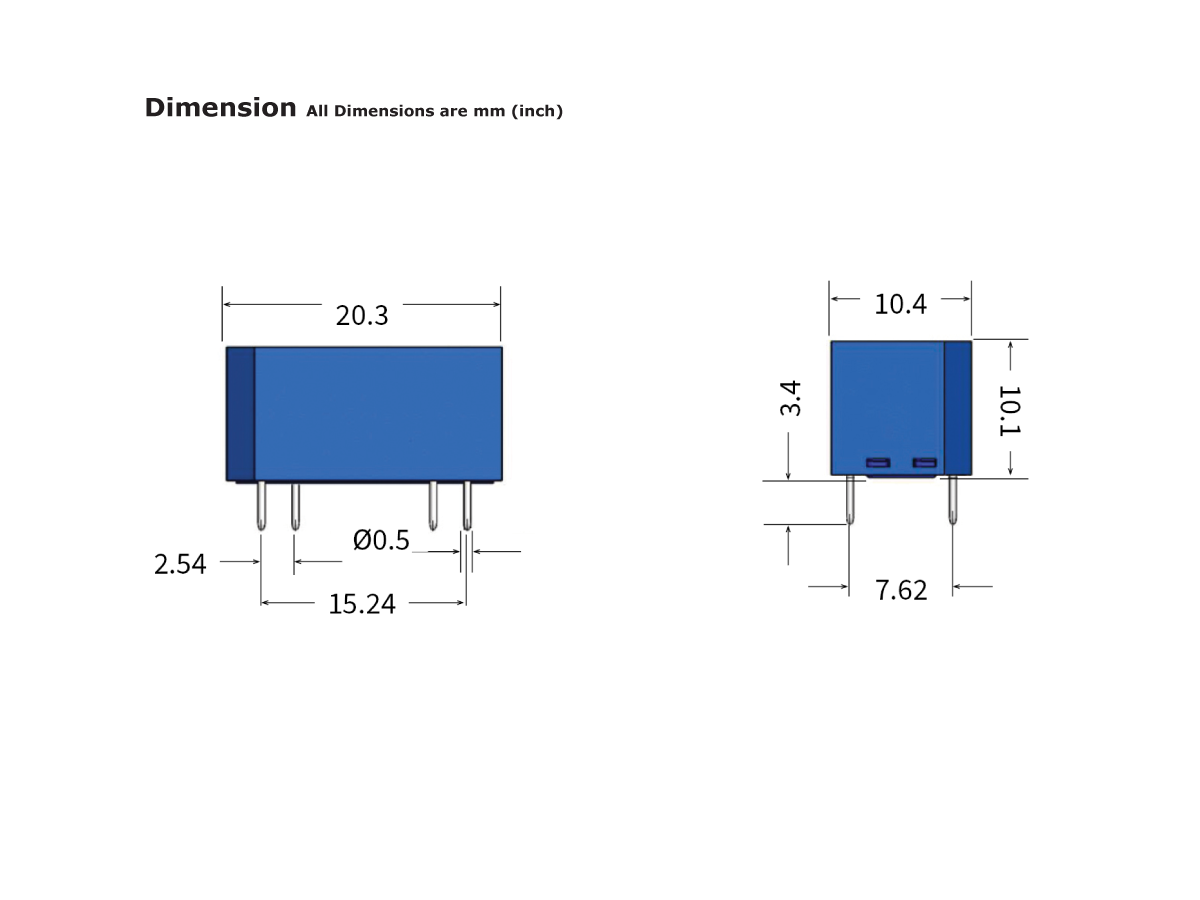

DIL Series Reed Relay
The DIL Series is a versatile general-purpose reed relay designed for reliable switching across a wide range of applications. Housed in a dual-in-line (DIL) epoxy-encapsulated package, it offers multiple contact configurations, including SPST, SPDT, DPST, and DPDT, with coil resistances up to 11,000 Ω and dielectric strength up to 4.25 kVDC.
Available in 1A, 1B, 1C, 2A, and 2C contact forms, the DIL Series supports coil voltages of 5 VDC, 12 VDC, and 24 VDC, and is rated for up to 50 W, 500 VDC, and 2 A. Optional features include integrated diodes, magnetic shielding, and coaxial shielding for enhanced performance in sensitive environments. With UL approval and through-hole mounting, the DIL Series is ideal for use in medical equipment, telecommunications, industrial systems, and automated test equipment (ATE).
Standards and Certifications
- Dual-in-line (DIL) epoxy-encapsulated package for rugged reliability
- Wide range of contact forms: SPST, SPDT, DPST, DPDT
- Rated for up to 50 W, 500 VDC, and 2 A
- Coil voltage options: 5 VDC, 12 VDC, 24 VDC
- High coil resistance options up to 11,000 Ω
- Dielectric strength up to 4.25 kVDC for high-voltage isolation
- Optional diode, magnetic shield, and coaxial shield configurations
- Through-hole mounting for secure PCB integration
- UL approved for safety and compliance
| Coil Voltage (VDC) | 5, 12, 24 |
| Coil Resistance (Ω) | 500-10000 |
| Contact Form | 1-4A Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover, 2A (DPST) Normally Open (N.O.), 2C (DPDT) Changeover, |
| Rated Power Max. | 50W/500VDC/2A |
- Medical Equipment: Reliable switching in diagnostic and monitoring systems
- Telecommunications: Signal routing in network infrastructure
- Industrial Controls: Relay switching in automation and control systems
- Automated Test Equipment (ATE): Versatile relay configurations for test matrices
- General Purpose Electronics: Flexible relay solutions for custom designs
