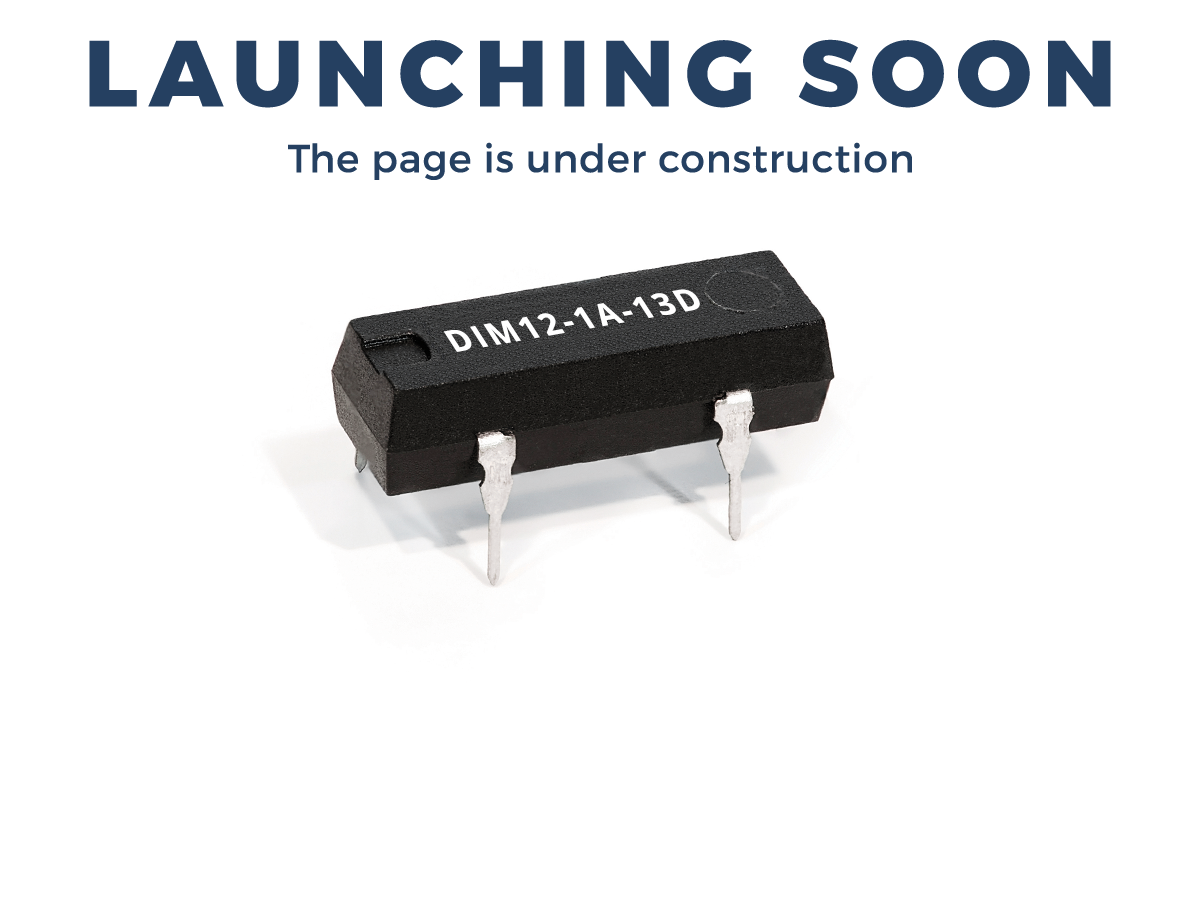

DIM Series Reed Relay
The DIM Series is a general-purpose dual-in-line reed relay designed for reliable switching in a wide range of electronic applications. Housed in a rugged thermoset overmolded package and a SPST-NO (Form A) contact configuration.
Rated for up to 20 W, 500 VDC, and 0.5 A, the DIM Series supports coil voltages from 5 VDC to 24 VDC and coil resistances between 500 Ω and 2000 Ω. Optional features include integrated diodes, magnetic shielding, and coaxial shielding for enhanced performance in sensitive environments. With through-hole mounting, the DIM Series is ideal for use in medical equipment, telecommunications, industrial systems, and automated test equipment (ATE).
- Dual-in-line (DIP) epoxy-encapsulated package for durability and compatibility
- Multiple contact forms: SPST-NO
- Rated for up to 20 W, 500 VDC, and 0.5 A
- Coil voltage options: 5 VDC, 12 VDC, 24 VDC
- Optional diode, magnetic shield, and coaxial shield configurations
- High dielectric strength up to 2 kVDC
- Through-hole mounting for secure PCB integration
| Coil Voltage (VDC) | 5, 12, 24 |
| Coil Resistance (Ω) | 500-2000 |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 20W/500VDC/0.5A |
- Medical Equipment: Reliable switching in diagnostic and monitoring systems
- Telecommunications: Signal routing in network infrastructure
- Industrial Controls: Relay switching in automation and control systems
- Automated Test Equipment (ATE): Versatile relay configurations for test matrices
- General Purpose Electronics: Flexible relay solutions for custom designs
