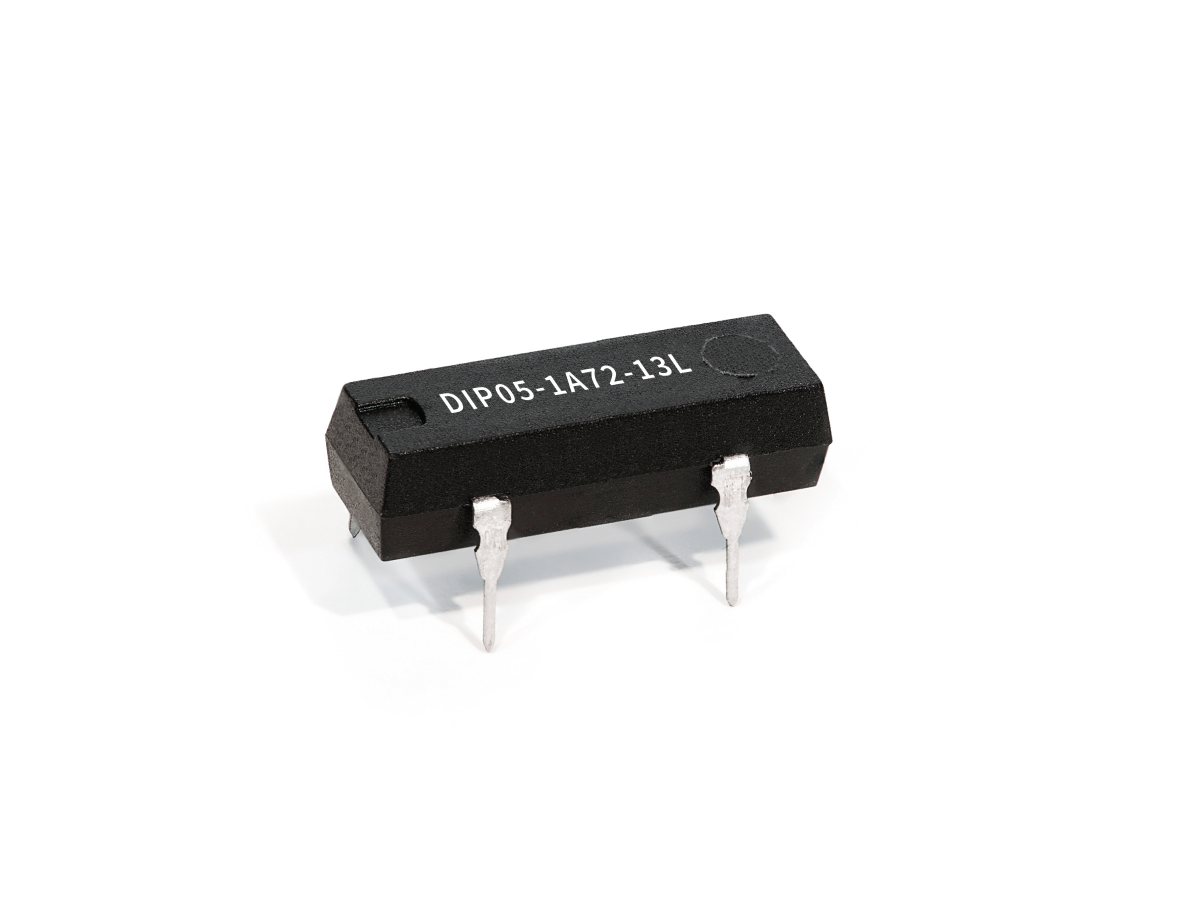

DIP Series Reed Relay
The DIP Series is a general-purpose dual-in-line reed relay designed for reliable switching in a wide range of electronic applications. Housed in a rugged thermoset overmolded package, it offers multiple contact configurations, including SPST-NO (Form A), SPST-NC (Form B), SPDT (Form C), and DPST-NO (Form 2A), to support versatile circuit designs.
Rated for up to 50 W, 500 VDC, and 2 A, the DIP Series supports coil voltages from 3 VDC to 24 VDC and coil resistances between 500 Ω and 2000 Ω. Optional features include integrated diodes, magnetic shielding, and coaxial shielding for enhanced performance in sensitive environments. With UL approval and through-hole mounting, the DIP Series is ideal for use in medical equipment, telecommunications, industrial systems, and automated test equipment (ATE).
Standards and Certifications
- Dual-in-line (DIP) epoxy-encapsulated package for durability and compatibility
- Multiple contact forms: SPST-NO, SPST-NC, SPDT, DPST-NO
- Rated for up to 50 W, 500 VDC, and 2 A
- Coil voltage options: 3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC
- Optional diode, magnetic shield, and coaxial shield configurations
- High dielectric strength up to 4.25 kVDC

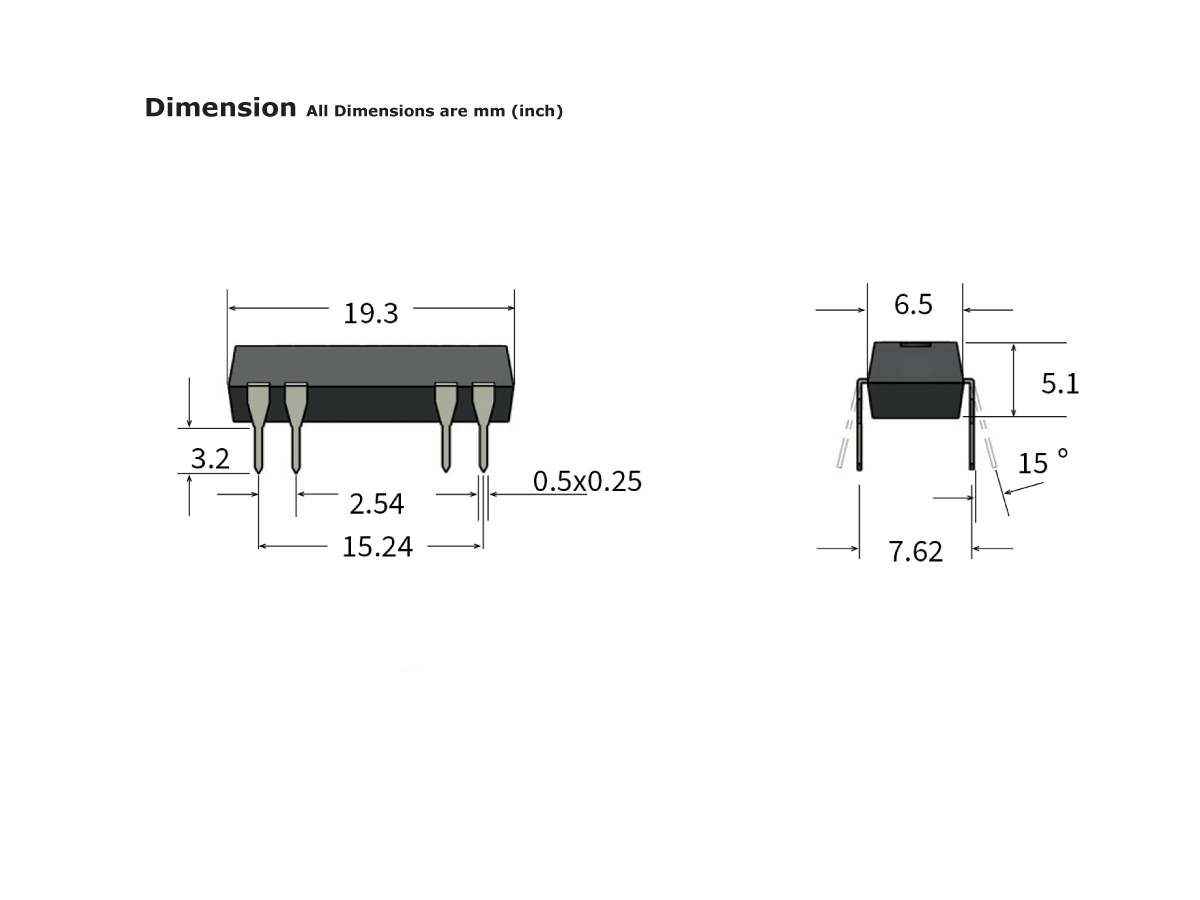

- Through-hole mounting for secure PCB integration
- UL approved for safety and compliance
| Coil Voltage (VDC) | 3, 5, 12, 15, 24 |
| Coil Resistance (Ω) | 500-2000 |
| Contact Form | 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover, 2A (DPST) Normally Open (N.O.) |
| Rated Power Max. | 50W/500VDC/2A |
- Medical Equipment: Reliable switching in diagnostic and monitoring systems
- Telecommunications: Signal routing in network infrastructure
- Industrial Controls: Relay switching in automation and control systems
- Automated Test Equipment (ATE): Versatile relay configurations for test matrices
- General Purpose Electronics: Flexible relay solutions for custom designs
